Product Details | SNAPSLIDE FASTENER STUD
5325-01-478-9572 An item which is used in conjunction with FASTENER, SNAPSLIDE. It secures the latch when mated with the notched rest of the latch.
Part Alternates: 124-4322615 PC 7, 1244322615PC7, 5325-01-478-9572, 01-478-9572, 5325014789572, 014789572
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 2000 | 01-478-9572 | 17531 ( STUD, SNAPSLIDE FASTENER ) |

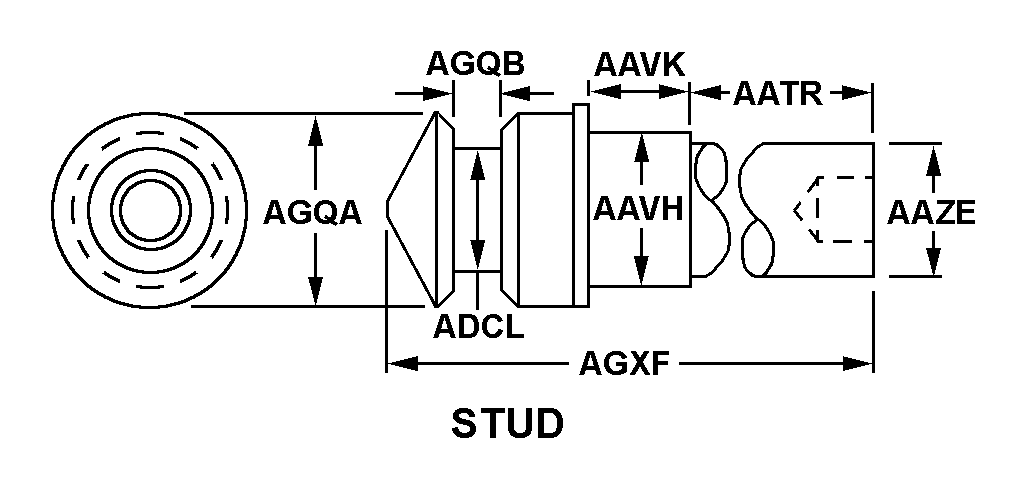

Drawings & Photos | NSN 5325-01-478-9572
Cross Reference | NSN 5325-01-478-9572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124-4322615 PC 7 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-478-9572
Related Products | NSN 5325-01-478-9572
Technical Data | NSN 5325-01-478-9572
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.625-18 UNF |
| SNAPSLIDE STUD STYLE | 2 STUD |
| SHOULDER DIAMETER | 0.629 INCHES MINIMUM AND 0.734 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.688 INCHES NOMINAL |
| SHANK DIAMETER | 0.502 INCHES NOMINAL |
| STUD LENGTH | 1.562 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM HAS ROUNDED THREADED END THAT IS SLOTTED;ROUNDED THREADED END HAS COTTER PIN HOLE;SHOULDERED END HAS A DRILLED HOLE 5/16 DIAMETER;UNDERCUT PRIOR TO THREADED END |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TOGGLE LINK AND HAND LEVER STUD |
Restrictions/Controls & Freight Information | NSN 5325-01-478-9572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
