Product Details | RETAINING RING

5325-01-478-4838 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: 2611914, 5325-01-478-4838, 01-478-4838, 5325014784838, 014784838

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 14 SEP 2000 01-478-4838

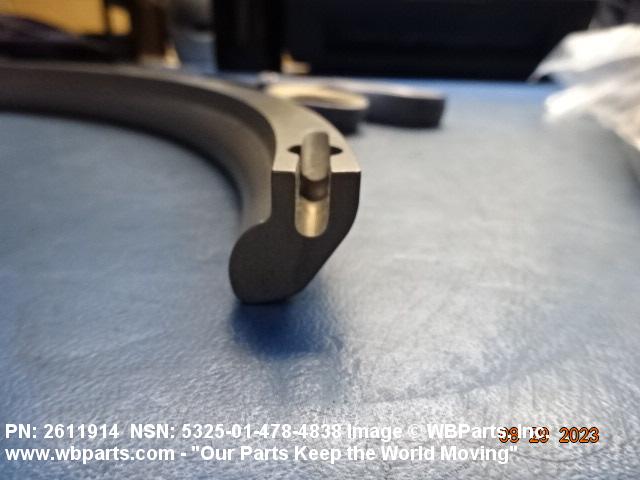

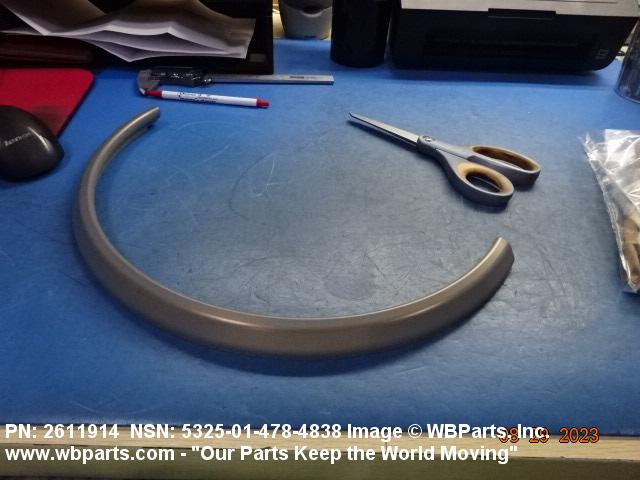

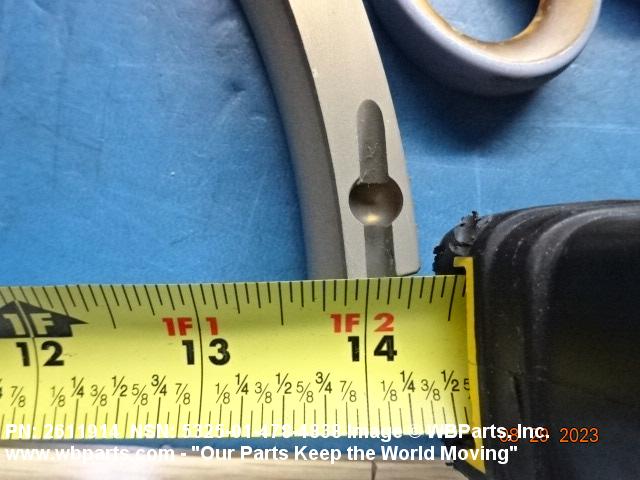

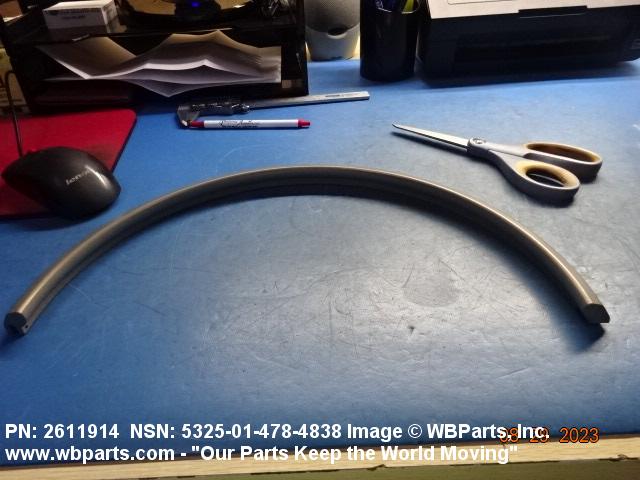

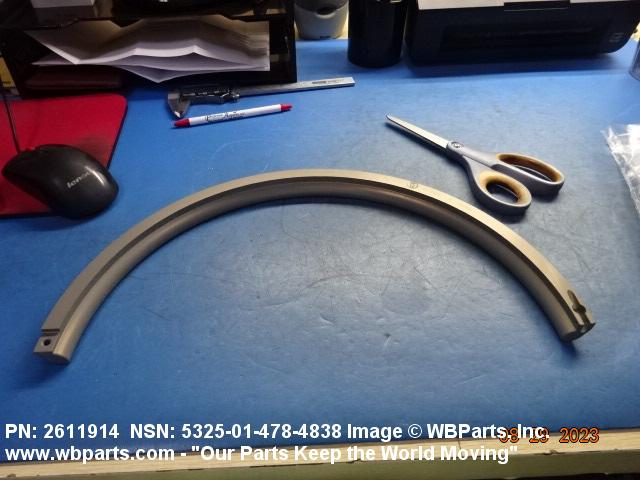

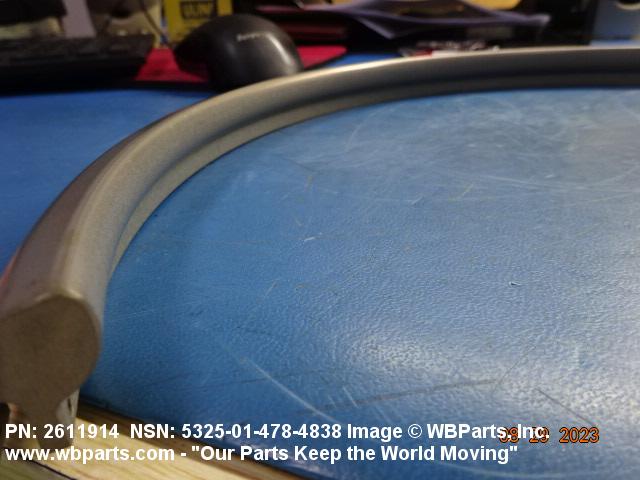

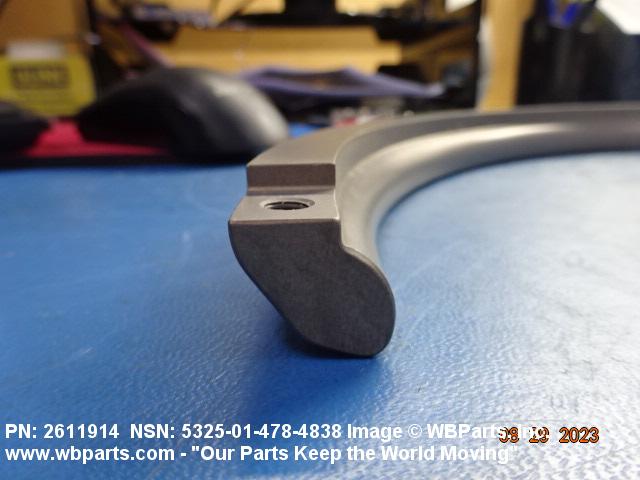

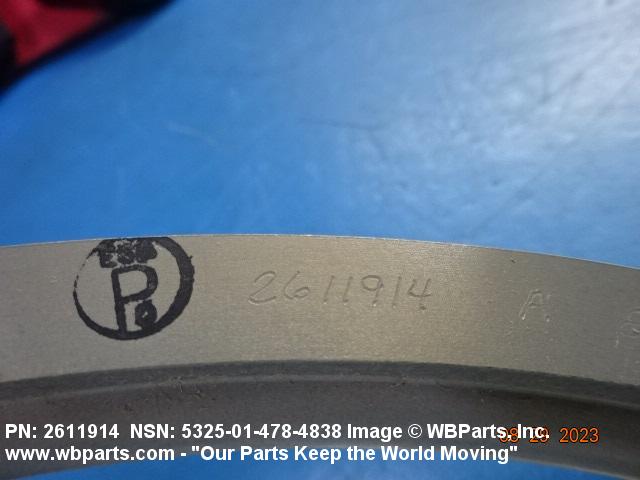

Drawings & Photos | NSN 5325-01-478-4838


Demand History | NSN 5325-01-478-4838

Part Number Request Date QTY Origin
2611914 2024-05-140 2 DIBBS
2611914 2024-02-46 4 DIBBS
2611914 2023-11-331 2 DIBBS
2611914 2023-11-323 2 DIBBS
5325-01-478-4838 2023-11-305 3 United States
5325-01-478-4838 2023-09-270 2 US
5325-01-478-4838 2023-09-261 1 United States
5325-01-478-4838 2023-08-240 2 United States
2611914 2023-08-229 66 DIBBS
5325-01-478-4838 2023-08-223 4 United States
2611914 2023-08-221 66 DIBBS
5325-01-478-4838 2012-09-245 73 DIBBS
5325-01-478-4838 2010-12-362 37 DIBBS

Cross Reference | NSN 5325-01-478-4838

Part Number Cage Code Manufacturer
2611914 55284 HONEYWELL INTERNATIONAL INC DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-478-4838

Technical Data | NSN 5325-01-478-4838

Characteristic Specifications
MATERIAL ALUMINUM ALLOY, QQ-A-367, ALLOY 2014, T6
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED
INSIDE DIAMETER 13.960 INCHES NOMINAL
SPECIAL FEATURES RING IS SEMICIRCULAR IN SHAPE
III END ITEM IDENTIFICATION WHEELS/BRAKES; FA/18 EF MAIN WHEEL ASSEMBLY 2611991-2

Restrictions/Controls & Freight Information | NSN 5325-01-478-4838

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 094533 EYELETS OR EYELET HOOKS NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 575 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-01-478-4838

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
