NSN 5325-01-477-7459 HS48743A4A, HS4874-3A4A, SL35414A4A
Product Details | METALLIC GROMMET

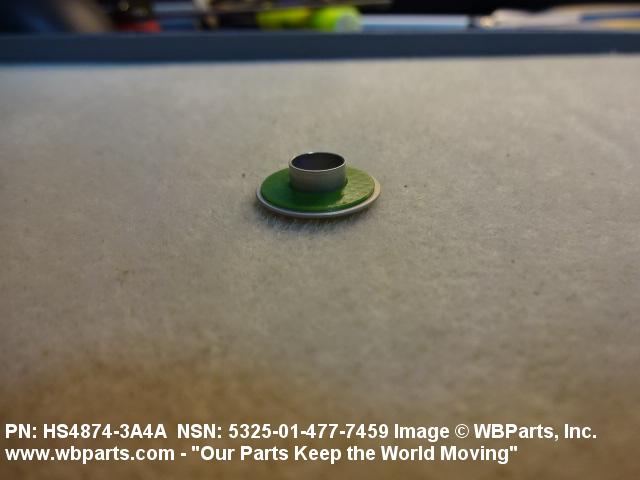

5325-01-477-7459 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: HS48743A4A, HS4874-3A4A, SL35414A4A, SLN1193A4A, SLN119-3A4A, 5325-01-477-7459, 01-477-7459, 5325014777459, 014777459
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 2000 | 01-477-7459 | 06314 ( GROMMET, METALLIC ) |

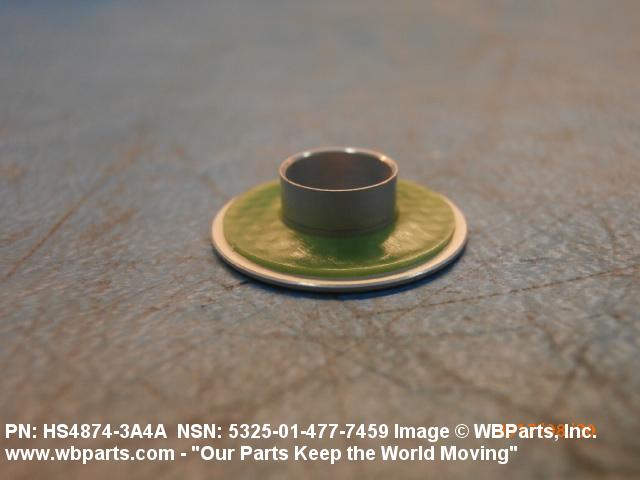

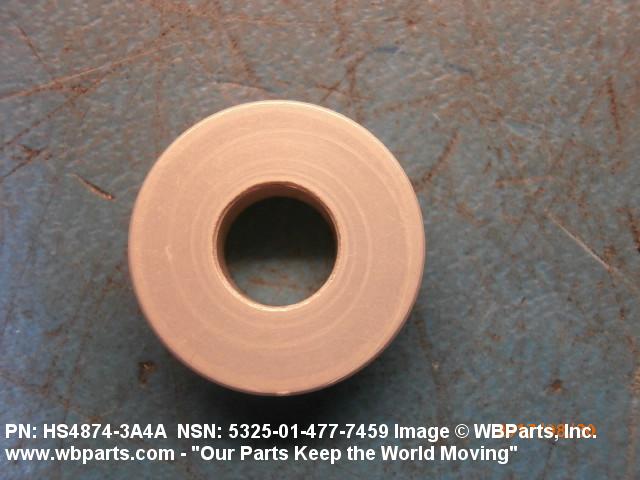

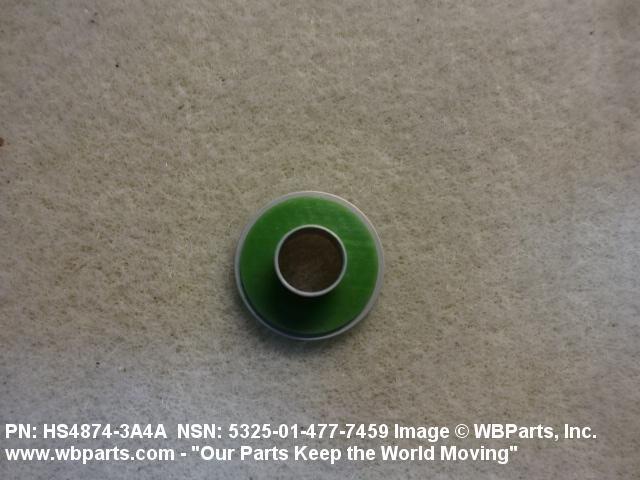

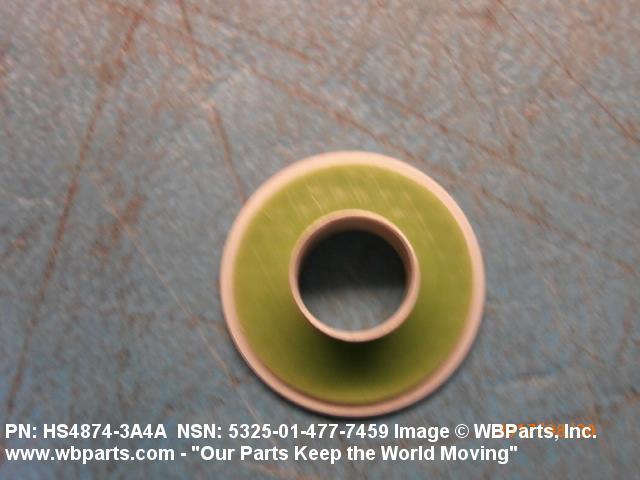

Drawings & Photos | NSN 5325-01-477-7459
Demand History | NSN 5325-01-477-7459
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HS48743A4A | 2022-11-320 | 116 | US |
| 5325-01-477-7459 | 2018-03-63 | 424 | DIBBS |
| 5325-01-477-7459 | 2018-02-43 | 41 | DIBBS |
| 5325-01-477-7459 | 2018-01-23 | 83 | DIBBS |
| HS48743A4A | 2017-11-324 | 1840 | US |
| HS48743A4A | 2017-07-199 | 288 | United States |
| 5325-01-477-7459 | 2013-06-161 | 311 | DIBBS |
| 5325-01-477-7459 | 2011-01-14 | 121 | DIBBS |
| 5325-01-477-7459 | 2008-02-42 | 723 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-477-7459
Related Products | NSN 5325-01-477-7459
Technical Data | NSN 5325-01-477-7459
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 GROMMET ALUMINUM ALLOY 2024 WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE GROMMET QQ-A-250/4 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| BARREL STYLE | 1 STRAIGHT ROUND TYPE |

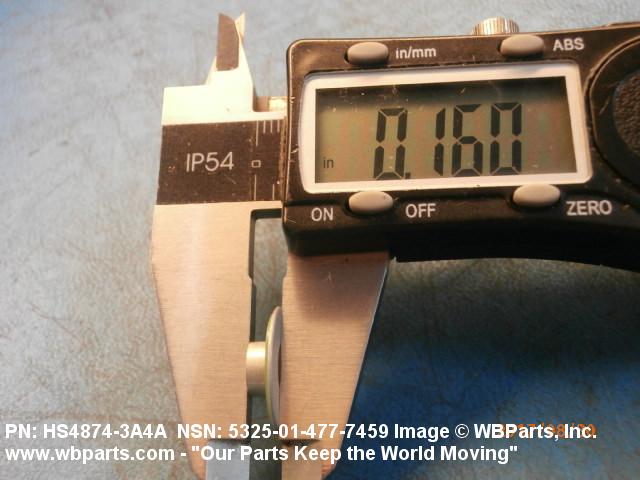

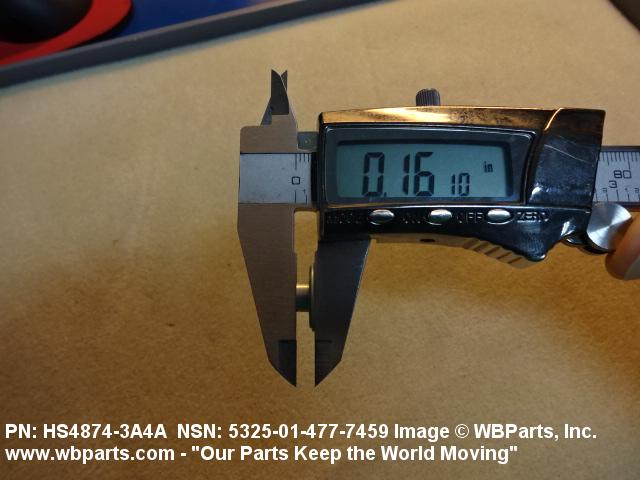

| BARREL HEIGHT | 0.165 INCHES NOMINAL |

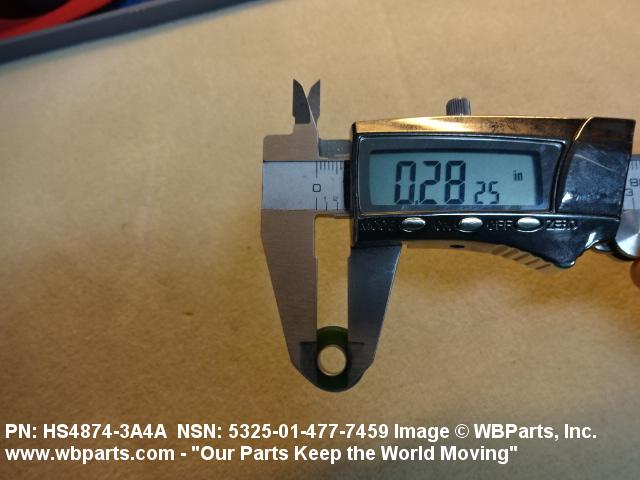

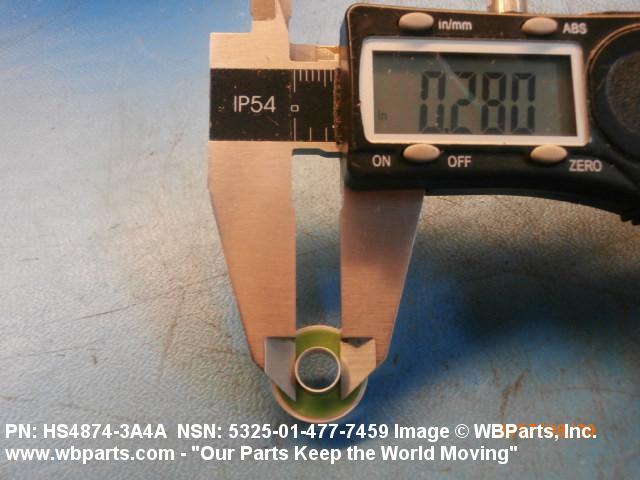

| BARREL OUTSIDE DIAMETER | 0.280 INCHES MAXIMUM |
| FLANGE STYLE | 1 FLANGE |

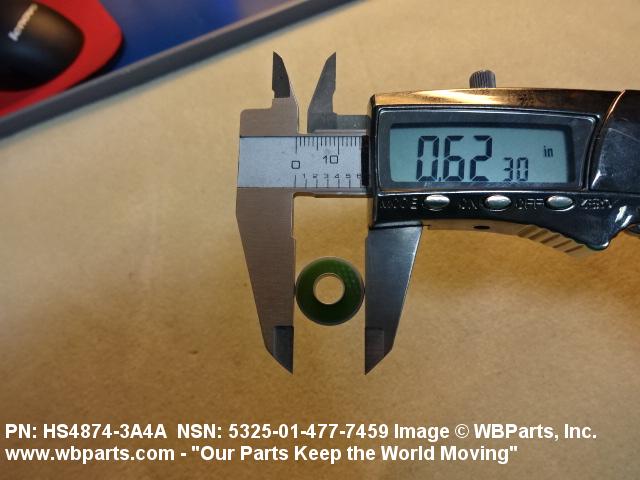

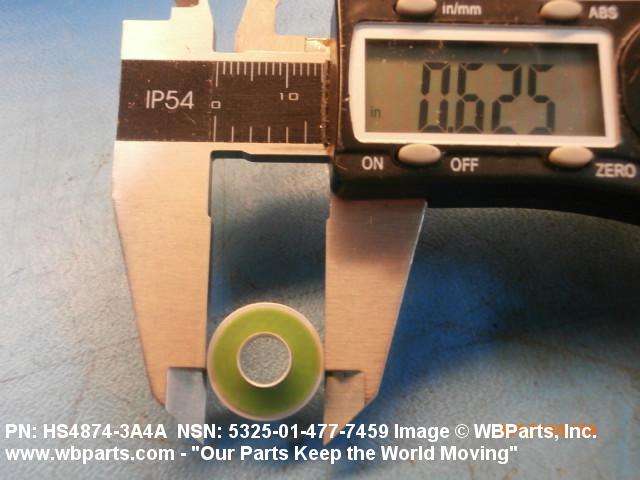

| FLANGE OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |

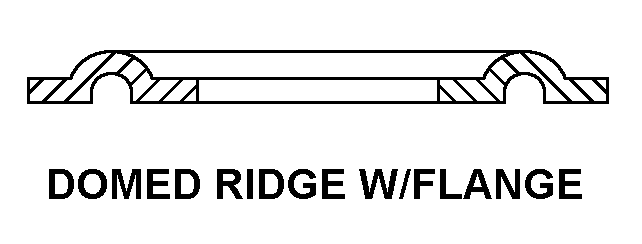

| WASHER STYLE | 7 DOMED RIDGE W/FLANGE |
| III END ITEM IDENTIFICATION | 1520-01-3558250 |
Restrictions/Controls & Freight Information | NSN 5325-01-477-7459
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-477-7459
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
