NSN 5325-01-383-7348 M2742630135D, 01-383-7348, 013837348
Product Details | RETAINING RING
5325-01-383-7348 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: M2742630135D, 5325-01-383-7348, 01-383-7348, 5325013837348, 013837348
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 DEC 1993 | 01-383-7348 | 07623 ( RING, RETAINING ) |

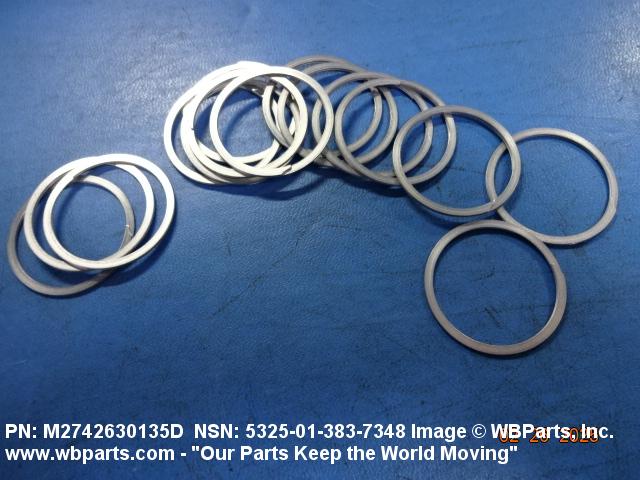

Drawings & Photos | NSN 5325-01-383-7348
Demand History | NSN 5325-01-383-7348
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2742630135D | 2024-10-275 | 12 | United States |
| 5325-01-383-7348 | 2023-04-101 | 119 | DIBBS |
| 5325-01-383-7348 | 2023-01-16 | 119 | DIBBS |
| 5325-01-383-7348 | 2017-05-145 | 50 | DIBBS |
| 5325-01-383-7348 | 2016-03-90 | 44 | MANUAL |
| M2742630135D | 2016-03-90 | 44 | KR |
| 5325-01-383-7348 | 2012-04-116 | 10 | US |
Cross Reference | NSN 5325-01-383-7348
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M2742630135D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-383-7348
Technical Data | NSN 5325-01-383-7348
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-5059, TYPE 302 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 72.0 ROCKWELL A MINIMUM AND 74.9 ROCKWELL A MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A55 SPECIAL FLAT |

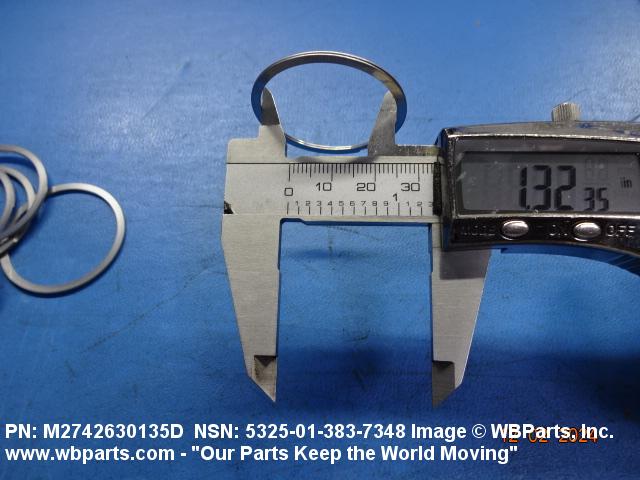

| INSIDE DIAMETER | 1.314 INCHES MINIMUM AND 1.329 INCHES MAXIMUM |

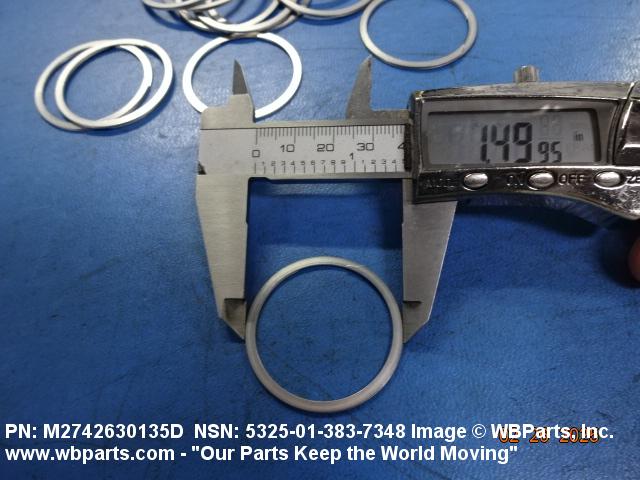

| OUTSIDE DIAMETER | 1.504 INCHES MINIMUM AND 1.519 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D12 DOUBLE OVAL |

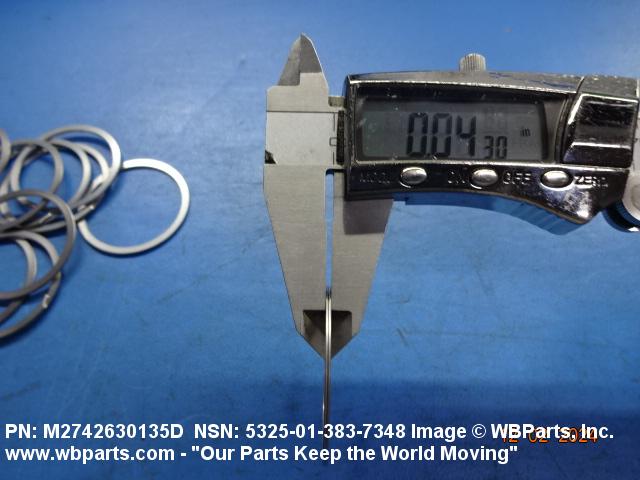

| MAJOR THICKNESS | 0.041 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M2742630135D |
Restrictions/Controls & Freight Information | NSN 5325-01-383-7348
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-383-7348
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
