Product Details | TURNLOCK FASTENER STUD ASSEMBLY

5325-01-381-4793 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.

Part Alternates: PVS3 1/2-41, PVS3-1/2-41, PVS31241, PVS3541, PVS35-41, 3522S41C3C, 3522-S41-C3C, 5325-01-381-4793, 01-381-4793, 5325013814793, 013814793

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 15 OCT 1993 01-381-4793

Drawings & Photos | NSN 5325-01-381-4793


Cross Reference | NSN 5325-01-381-4793

Part Number Cage Code Manufacturer
3522-S41-C3C 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
PVS3 1/2-41 U1584 SOUTHCO UK LTD
PVS3-1/2-41 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
PVS35-41 72794 SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
PVS35-41 U1584 SOUTHCO UK LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-381-4793

Technical Data | NSN 5325-01-381-4793

Characteristic Specifications
MATERIAL STEEL COMP 1010 OR STEEL COMP 1118 OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL

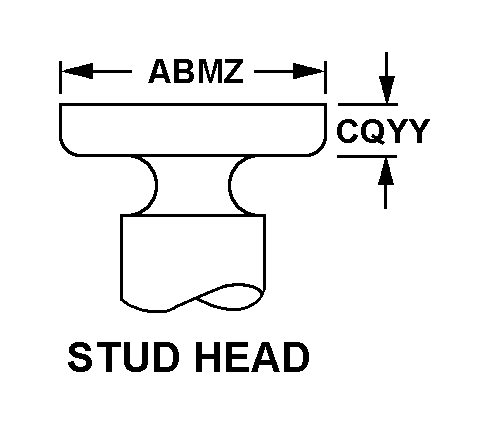

TURNLOCK STUD HEAD STYLE 16 STUD HEAD
DIAMETER 0.375 INCHES NOMINAL
STUD HEAD HEIGHT 0.450 INCHES NOMINAL
STUD ASSEMBLY STYLE 22 STUD ASSEMBLY
DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD 0.255 INCHES NOMINAL
EYELET OUTSIDE DIAMETER 0.450 INCHES NOMINAL
STUD DIAMETER 0.215 INCHES NOMINAL
EYELET LENGTH 0.110 INCHES NOMINAL
SECURING DEVICE TYPE SPRING
MATERIAL ACCOMMODATED THICKNESS 0.094 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5325-01-381-4793

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
