NSN 5325-01-369-6745 NAS172326C, NAS1723-2-6C, 01-369-6745
Product Details | METALLIC EYELET
5325-01-369-6745 A one-piece metal item, usually tubular, flanged at one end, the other end open. It is used primarily for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and crimped to form a mating flange. Excludes GROMMET, METALLIC and eyelets which are components of pushbutton, turnbutton and turnlock type fastners.
Part Alternates: NAS172326C, NAS1723-2-6C, 5325-01-369-6745, 01-369-6745, 5325013696745, 013696745
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1993 | 01-369-6745 | 05457 ( EYELET, METALLIC ) |

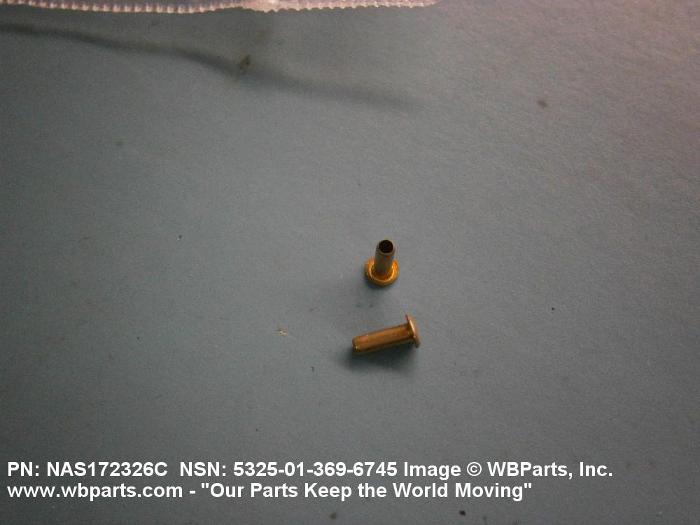

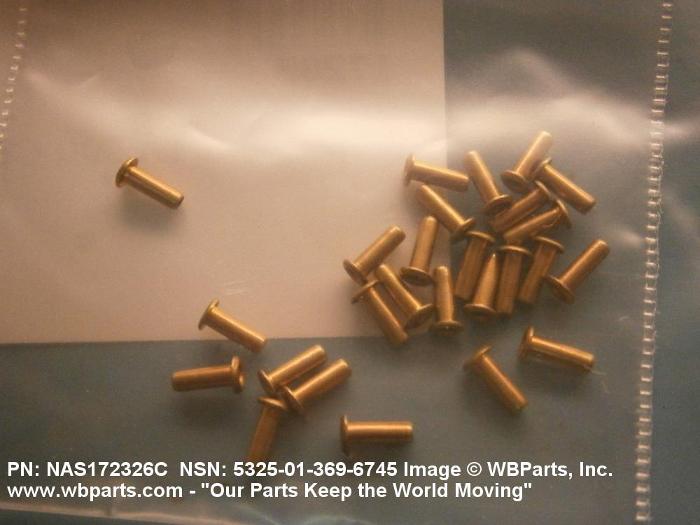

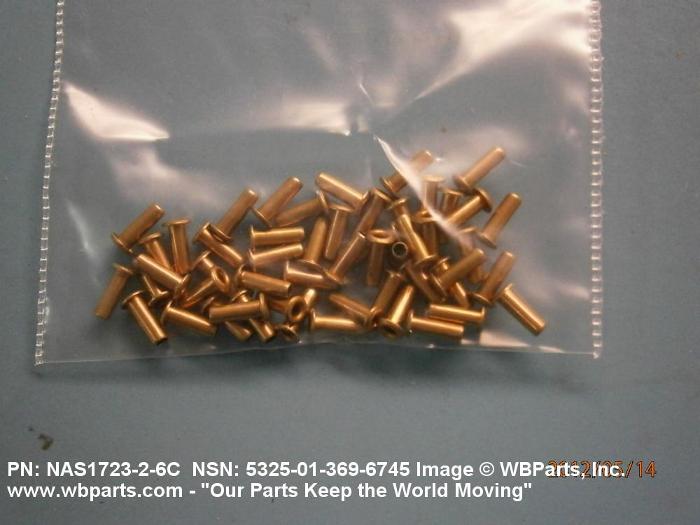

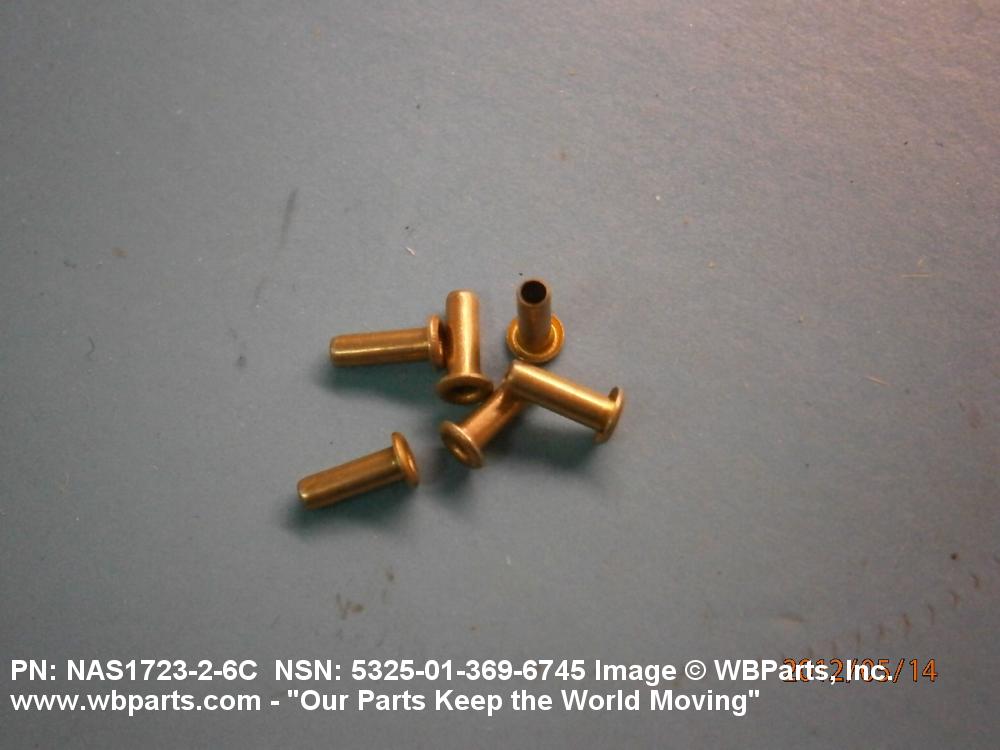

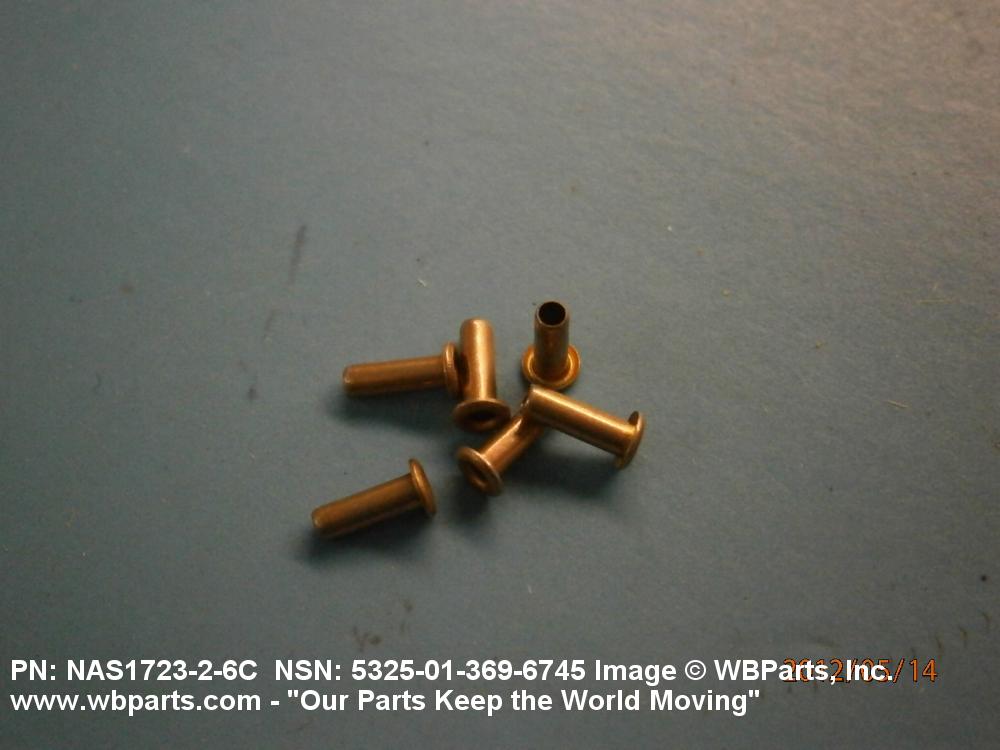

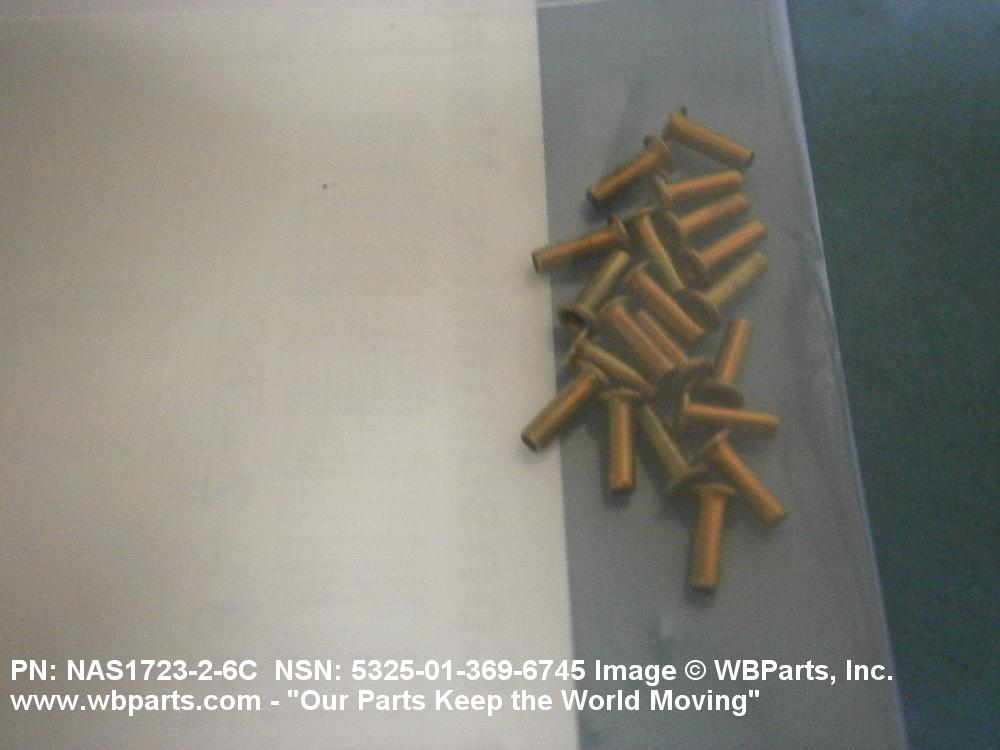

Drawings & Photos | NSN 5325-01-369-6745
Demand History | NSN 5325-01-369-6745
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-369-6745 | 2014-08-220 | 150 | United States |
| 5325-01-369-6745 | 2012-10-279 | 110 | United States |
| 5325-01-369-6745 | 2012-07-213 | 100 | United States |
| NAS172326C | 2012-05-152 | 50 | United States |
| NAS172326C | 2012-04-102 | 10 | United States |
| NAS172326C | 2012-04-94 | 10 | United States |
Cross Reference | NSN 5325-01-369-6745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1723-2-6C | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-369-6745
Related Products | NSN 5325-01-369-6745
Technical Data | NSN 5325-01-369-6745
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 260 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | GOLD OVERALL |
| BARREL STYLE | 1 STRAIGHT ROUND TYPE |
| BARREL HEIGHT | 0.182 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| BARREL OUTSIDE DIAMETER | 0.057 INCHES MINIMUM AND 0.061 INCHES MAXIMUM |
| FLANGE STYLE | 2 FLANGE |
| FLANGE OUTSIDE DIAMETER | 0.100 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1723 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5325-01-369-6745
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-369-6745
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
