NSN 5325-01-234-3194 HRN621, HRN6-2-1, 409092
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-234-3194 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: HRN621, HRN6-2-1, 409092, 5325-01-234-3194, 01-234-3194, 5325012343194, 012343194
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUN 1986 | 01-234-3194 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

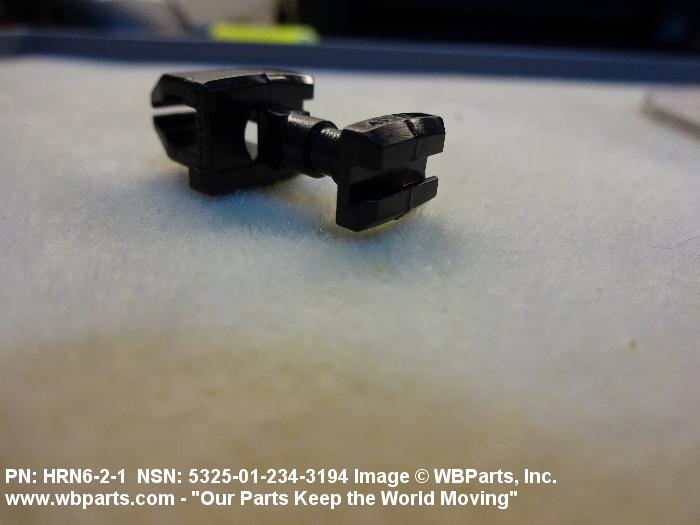

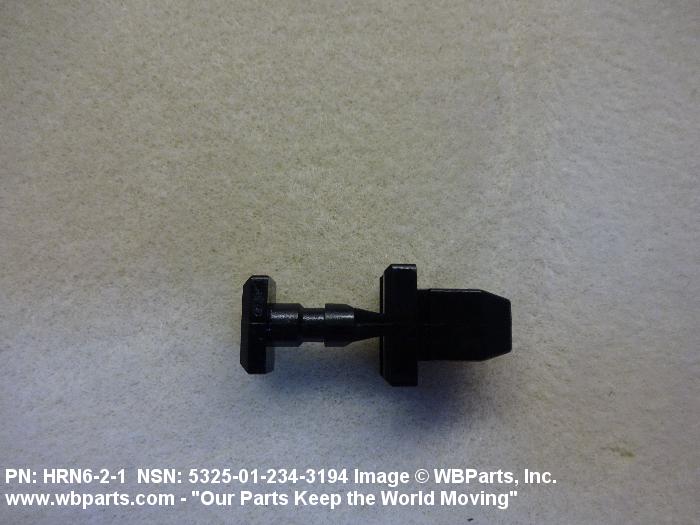

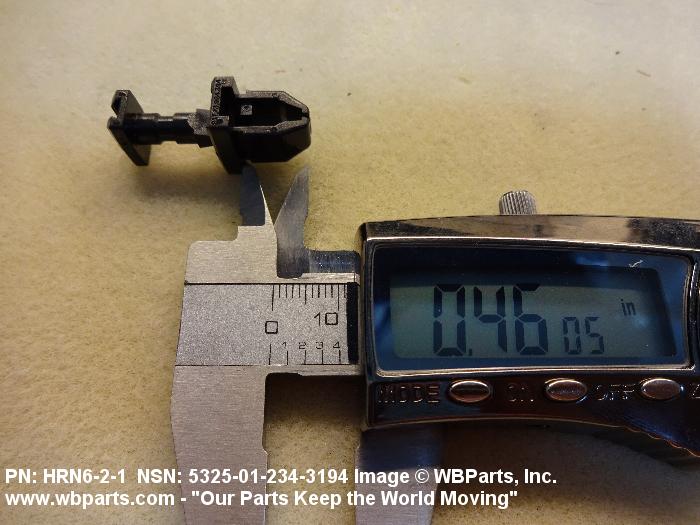

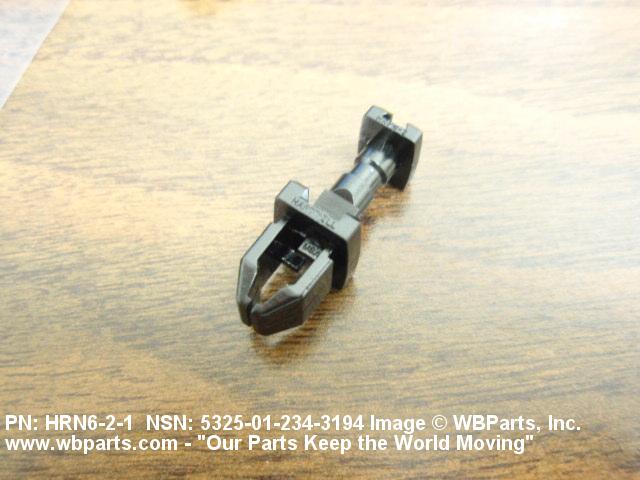

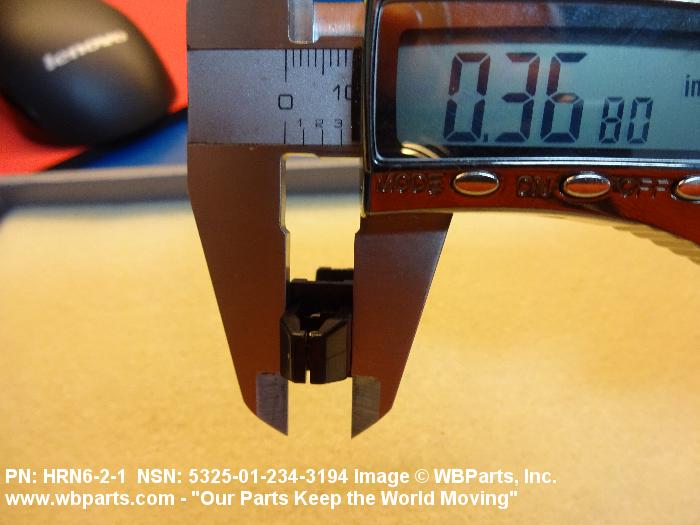

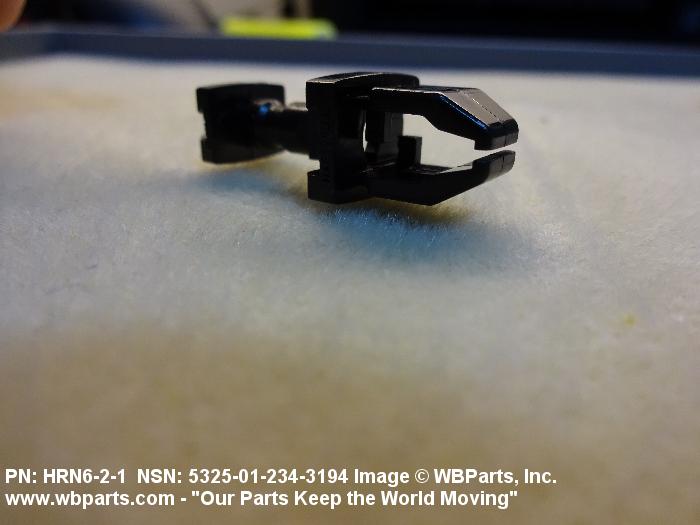

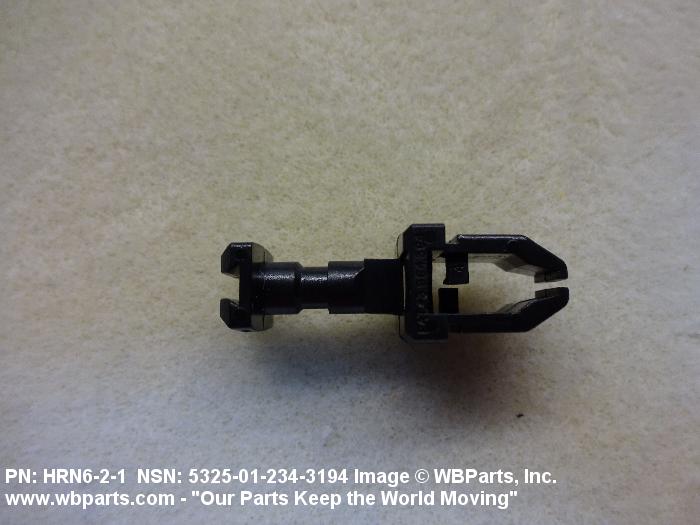

Drawings & Photos | NSN 5325-01-234-3194
Demand History | NSN 5325-01-234-3194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-234-3194 | 2024-03-85 | 4 | US |
| 5325-01-234-3194 | 2021-12-336 | 100 | US |
| 5325-01-234-3194 | 2020-09-268 | 1 | US |
| 5325-01-234-3194 | 2018-09-263 | 10 | US |
| 5325-01-234-3194 | 2018-06-158 | 20 | DE |
| 5325-01-234-3194 | 2018-05-143 | 4 | US |
| 5325-01-234-3194 | 2017-06-162 | 100 | United States |
| 5325-01-234-3194 | 2015-07-189 | 100 | US |
| 5325-01-234-3194 | 2011-12-342 | 100 | United States |
| HRN621 | 2011-06-160 | 100 | US |
| HRN621 | 2011-02-56 | 150 | BG |
| 5325-01-234-3194 | 2010-10-291 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-234-3194
Technical Data | NSN 5325-01-234-3194
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYCARBONATE OVERALL |
| DIAMETER | 0.406 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.270 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.375 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| EYELET LENGTH | 0.511 INCHES MAXIMUM |
| DRIVE TYPE | SLOTTED |
| FEATURES PROVIDED | GROMMET |
| SPECIAL FEATURES | ONE PIECE DESIGN 1/4 TURN LOCK/UNLOCK RECTANGULAR HEAD |
| III SUPPLEMENTARY FEATURES | WHITE COLOR |
| MANUFACTURERS CODE | 83014 |
| DESIGN CONTROL REFERENCE | HRN6-2-1 |
Restrictions/Controls & Freight Information | NSN 5325-01-234-3194
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
