NSN 5325-01-203-5612 012035612
Product Details | RETAINING RING
5325-01-203-5612 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 012035612
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAR 1985 | 01-203-5612 | 07623 ( RING, RETAINING ) |

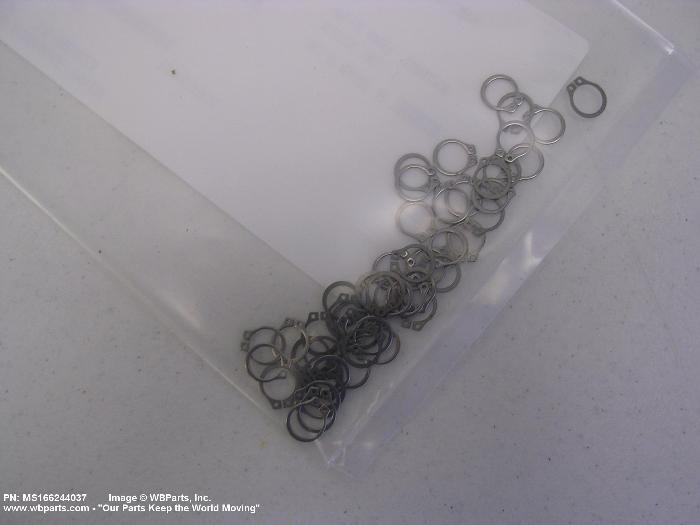

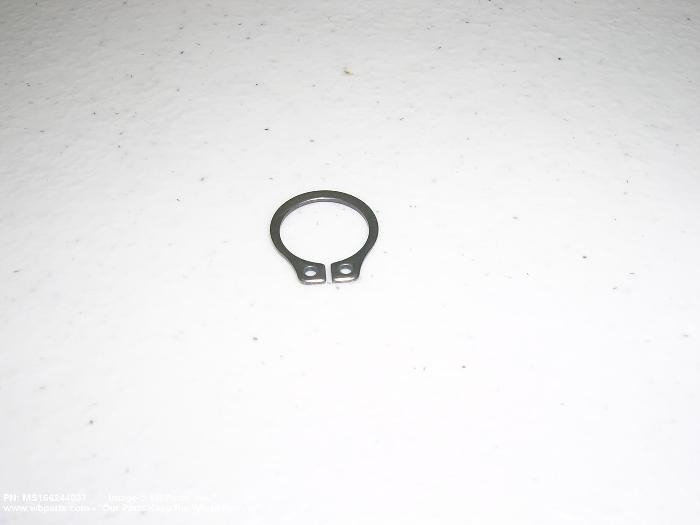

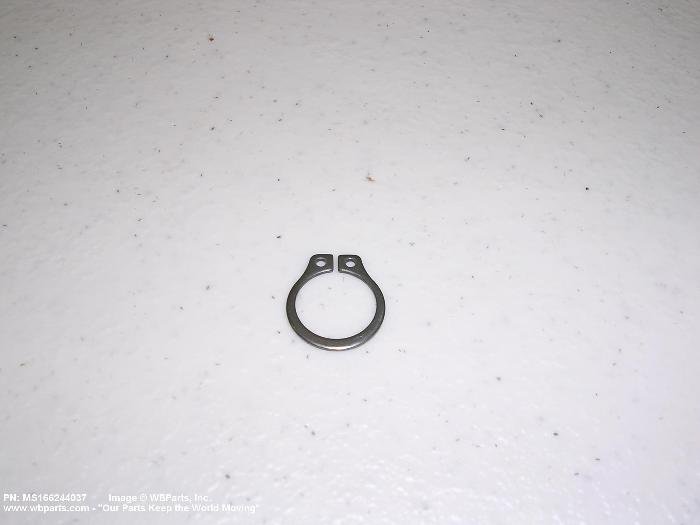

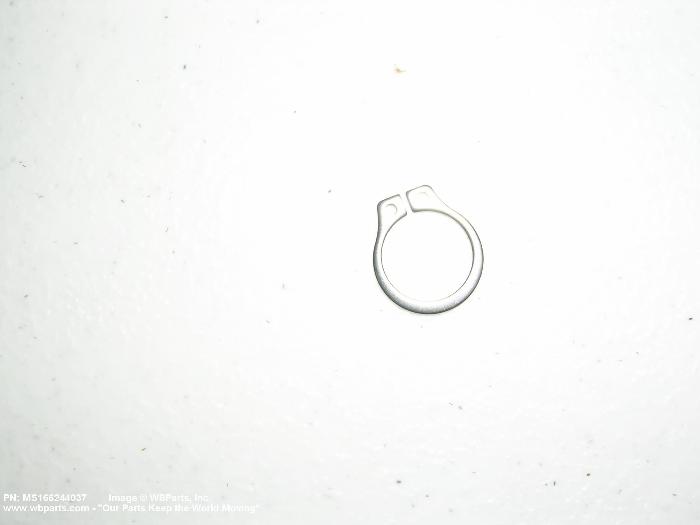

Drawings & Photos | NSN 5325-01-203-5612
Demand History | NSN 5325-01-203-5612
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-203-5612 | 2023-03-80 | 6 | Taiwan |
| MS16624-4037 | 2020-06-174 | 80 | Hong Kong |
| MS16624-4037 | 2017-11-317 | 8 | Canada |
| MS16624-4037 | 2016-05-137 | 2 | |
| 5325-01-203-5612 | 2015-03-84 | 2 | DIBBS |
| 5325-01-203-5612 | 2014-09-265 | 2 | DIBBS |
| MS166244037 | 2014-08-237 | 4 | US |
| MS16624-4037 | 2014-08-217 | 12 | US |
| MS166244037 | 2012-04-110 | 51 | United States |
| MS166244037 | 2011-07-200 | 800 | TR |
| MS166244037 | 2011-02-42 | 500 | US |
| MS166244037 | 2010-10-300 | 15 | United States |
| MS166244037 | 2010-03-70 | 100 | Singapore |
| MS166244037 | 2008-09-247 | 25 | United States |
| MS166244037 | 2008-05-150 | 88 | United States |
| MS166244037 | 2007-10-277 | 25 | United States |
| MS166244037 | 2007-09-264 | 50 | United States |
Cross Reference | NSN 5325-01-203-5612
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-203-5612
Related Products | NSN 5325-01-203-5612
Technical Data | NSN 5325-01-203-5612
| Characteristic | Specifications |
|---|---|
| RING STYLE | EXTERNAL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP; MECH ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS. |
| USAGE DESIGN | EXTERNAL |
| SURFACE TREATMENT | PASSIVATED |
| MATERIAL HARDNESS RATING | 63.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 69.5 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| MATERIAL | STEEL, AMS 5520 |
| INSIDE DIAMETER | 0.336 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| MAJOR THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-01-203-5612
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-203-5612
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
