NSN 5325-01-184-8404 3D01004AF, 3D0100-4AF, 40S474
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-184-8404 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 3D01004AF, 3D0100-4AF, 40S474, 40S47-4, 5325-01-184-8404, 01-184-8404, 5325011848404, 011848404
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1984 | 01-184-8404 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-184-8404
Demand History | NSN 5325-01-184-8404
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3D0100-4AF | 2019-01-06 | 89 | DIBBS |
| 40S47-4 | 2019-01-06 | 89 | DIBBS |
| 5325-01-184-8404 | 2015-05-15 | 206 | DIBBS |
| 5325-01-184-8404 | 2015-02-10 | 206 | DIBBS |
| 5325-01-184-8404 | 2011-03-07 | 151 | DIBBS |
| 5325-01-184-8404 | 2009-04-15 | 93 | DIBBS |
| 5325-01-184-8404 | 2009-01-02 | 230 | DIBBS |
| 5325-01-184-8404 | 2008-03-28 | 9 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-184-8404
Related Products | NSN 5325-01-184-8404
Technical Data | NSN 5325-01-184-8404
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 1050 EYELET STEEL PIN STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A684 ASSN STD SINGLE MATERIAL RESPONSE EYELET ASTM A331 ASSN STD SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

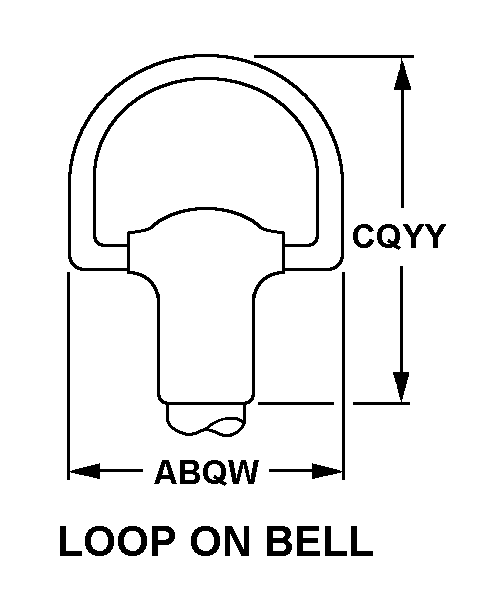

| TURNLOCK STUD HEAD STYLE | 13 LOOP ON BELL |
