NSN 5325-01-184-3760 S1115418BT, S11154-18BT, GG10A18T2
Product Details | NONMETALLIC GROMMET

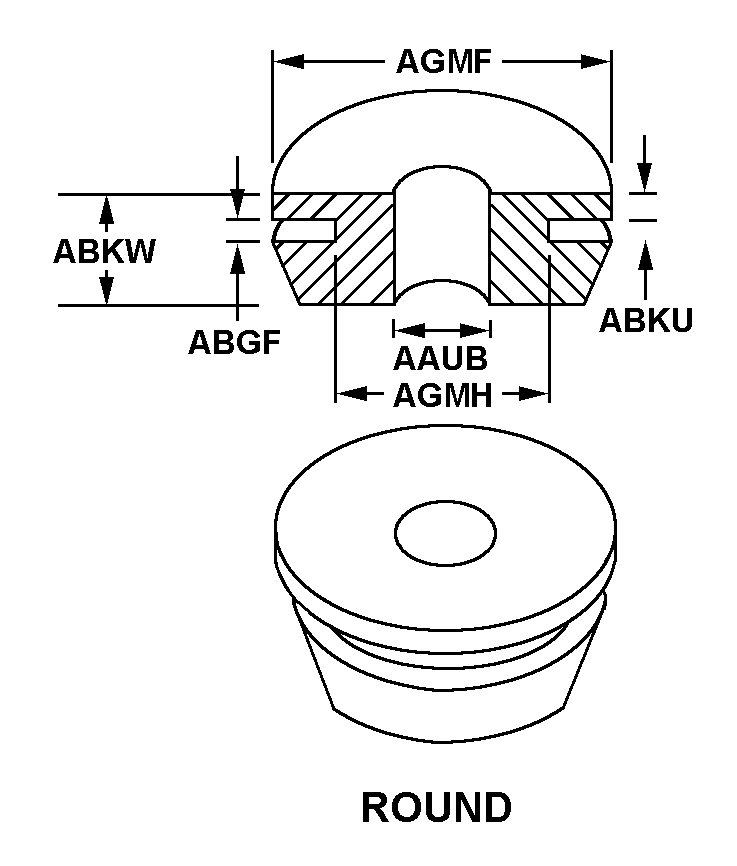

5325-01-184-3760 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: S1115418BT, S11154-18BT, GG10A18T2, 5325-01-184-3760, 01-184-3760, 5325011843760, 011843760
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1984 | 01-184-3760 | 33729 ( GROMMET, NONMETALLIC ) |
Drawings & Photos | NSN 5325-01-184-3760
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-184-3760
Technical Data | NSN 5325-01-184-3760
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-8791 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | WHITE OVERALL |
| GROMMET STYLE | 27 ROUND |
| HOLE DIAMETER | 1.245 INCHES MINIMUM AND 1.255 INCHES MAXIMUM |
| GROOVE WIDTH | 0.071 INCHES NOMINAL |
| FLANGE THICKNESS | 0.078 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.254 INCHES MINIMUM AND 0.264 INCHES MAXIMUM |
| LARGE FLANGE OUTSIDE DIAMETER | 1.658 INCHES MINIMUM AND 1.718 INCHES MAXIMUM |
| GROOVE OUTSIDE DIAMETER | 1.554 INCHES MINIMUM AND 1.560 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| SPECIAL FEATURES | 4 SLOTS EQUALLY SPACE |
| MANUFACTURERS CODE | 09257 |
| DESIGN CONTROL REFERENCE | S11154-18BT |
