NSN 5325-01-182-8994 H117K1889, HS47101, HS4710-1
Product Details | SNAPSLIDE FASTENER LATCH
5325-01-182-8994 An item which is a part of FASTENER, SNAPSLIDE and is used in conjunction with a LATCH GUIDE, SNAPSLIDE FASTENER and a STUD, SNAPSLIDE FASTENER. It is operated with a sliding motion and is secured to the stud by means of the spring action of notched rest.
Part Alternates: H117K1889, HS47101, HS4710-1 , 9207, 5325-01-182-8994, 01-182-8994, 5325011828994, 011828994
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JUN 1984 | 01-182-8994 | 17528 ( LATCH, SNAPSLIDE FASTENER ) |

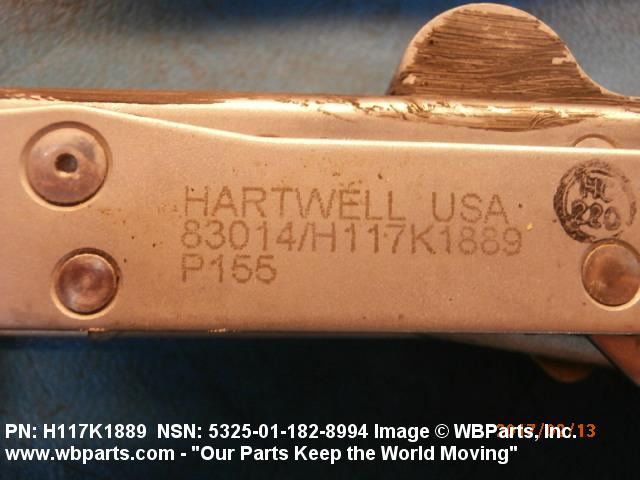

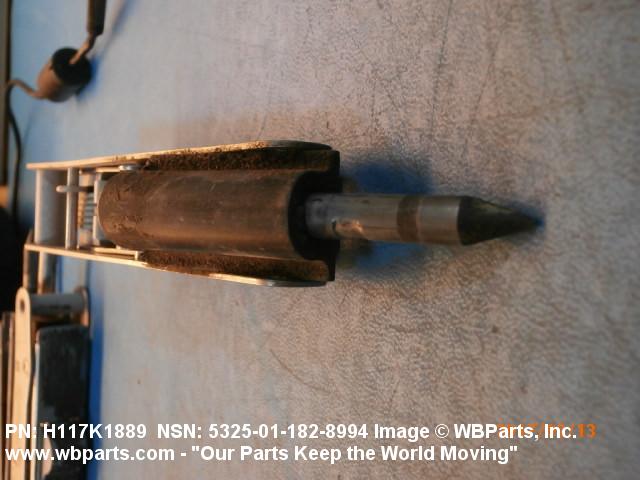

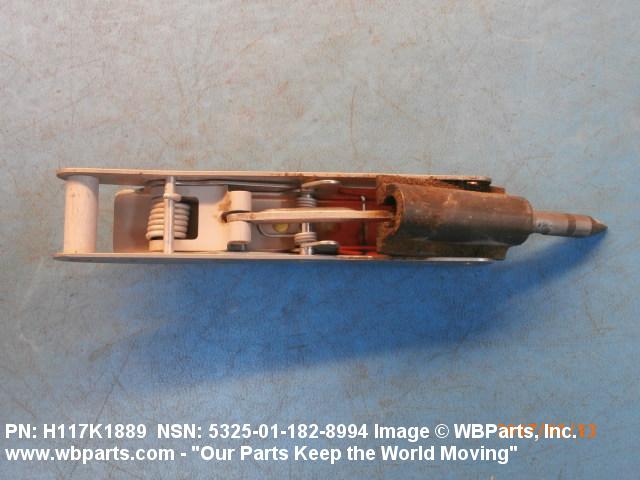

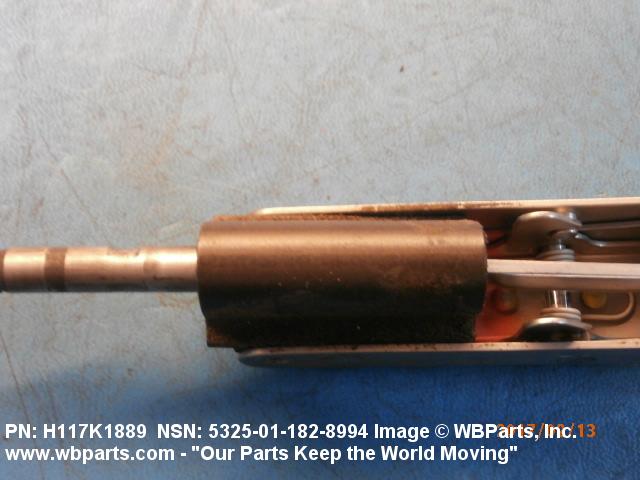

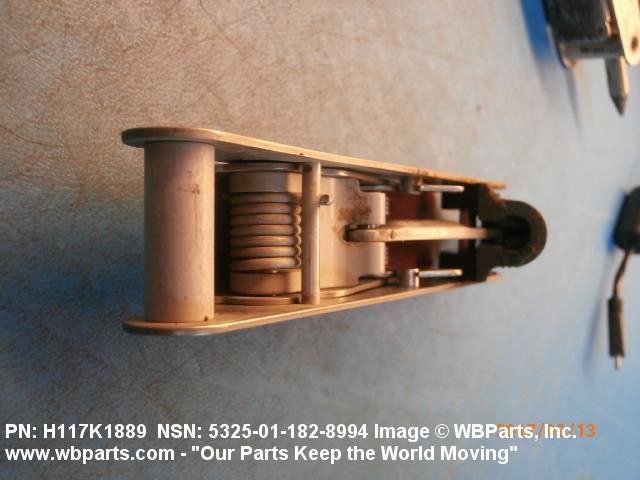

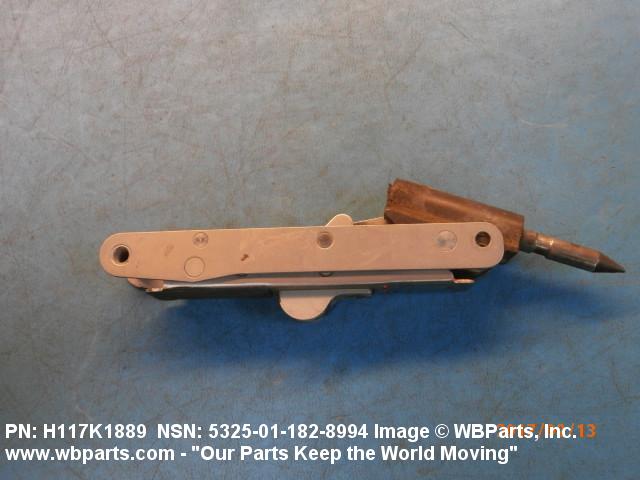

Drawings & Photos | NSN 5325-01-182-8994
Demand History | NSN 5325-01-182-8994
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| H117K1889 | 2024-06-168 | 480 | DIBBS |
| HK5L4710-1 | 2024-06-168 | 480 | DIBBS |
| HS4710-1 | 2024-06-168 | 480 | DIBBS |
| 5325-01-182-8994 | 2024-05-141 | 65 | Singapore |
| H117K1889 | 2024-05-133 | 108 | DIBBS |
| HK5L4710-1 | 2024-05-133 | 108 | DIBBS |
| HS4710-1 | 2024-05-133 | 108 | DIBBS |
| 5325-01-182-8994 | 2024-01-25 | 16 | Singapore |
| 5325-01-182-8994 | 2023-11-331 | 8 | Singapore |
| 5325-01-182-8994 | 2023-10-279 | 8 | Singapore |
| 5325-01-182-8994 | 2022-12-354 | 100 | India |
| H117K1889 | 2021-04-96 | 119 | DIBBS |
| HK5L4710-1 | 2021-04-96 | 119 | DIBBS |
| HS4710-1 | 2021-04-96 | 119 | DIBBS |
| 5325-01-182-8994 | 2020-12-350 | 1 | DIBBS-RFPs |
| H117K1889 | 2020-03-62 | 784 | DIBBS |
| HK5L4710-1 | 2020-03-62 | 784 | DIBBS |
| HS4710-1 | 2020-03-62 | 784 | DIBBS |
| H117K1889 | 2019-11-332 | 238 | DIBBS |
| HK5L4710-1 | 2019-11-332 | 238 | DIBBS |
| HS4710-1 | 2019-11-332 | 238 | DIBBS |
| 5325-01-182-8994 | 2019-11-310 | 84 | Singapore |
| H117K1889 | 2019-10-290 | 325 | DIBBS |
| HK5L4710-1 | 2019-10-290 | 325 | DIBBS |
| HS4710-1 | 2019-10-290 | 325 | DIBBS |
| H117K1889 | 2019-09-248 | 340 | DIBBS |
| HK5L4710-1 | 2019-09-248 | 340 | DIBBS |
| HS4710-1 | 2019-09-248 | 340 | DIBBS |
| H117K1889 | 2019-07-212 | 166 | DIBBS |
| HK5L4710-1 | 2019-07-212 | 166 | DIBBS |
| HS4710-1 | 2019-07-212 | 166 | DIBBS |
| H117K1889 | 2019-03-64 | 24 | Singapore |
| 5325-01-182-8994 | 2019-02-53 | 24 | Singapore |
| H117K1889 | 2019-01-28 | 300 | DIBBS |
| HK5L4710-1 | 2019-01-28 | 300 | DIBBS |
| HS4710-1 | 2019-01-28 | 300 | DIBBS |
| 5325-01-182-8994 | 2019-01-02 | 183 | DIBBS |
| H117K1889 | 2017-02-33 | 4 | United States |
| H117K1889 | 2017-01-30 | 4 | United States |
| 5325-01-182-8994 | 2014-12-363 | 395 | DIBBS |
| 5325-01-182-8994 | 2014-11-317 | 2 | United States |
| 5325-01-182-8994 | 2014-09-271 | 198 | DIBBS |
| 5325-01-182-8994 | 2014-06-162 | 3 | United States |
| HS47101 | 2013-07-206 | 26 | United States |
| HS47101 | 2013-07-206 | 52 | United States |
| 5325-01-182-8994 | 2011-06-157 | 300 | DIBBS |
| 5325-01-182-8994 | 2011-02-40 | 300 | DIBBS |
| 5325-01-182-8994 | 2011-01-18 | 157 | DIBBS |
| 5325-01-182-8994 | 2010-09-256 | 242 | DIBBS |
| 5325-01-182-8994 | 2010-07-209 | 176 | DIBBS |
| 5325-01-182-8994 | 2010-06-162 | 59 | DIBBS |
| 5325-01-182-8994 | 2010-02-36 | 300 | DIBBS |
| 5325-01-182-8994 | 2009-12-352 | 86 | DIBBS |
| 5325-01-182-8994 | 2009-12-336 | 155 | DIBBS |
| 5325-01-182-8994 | 2009-08-236 | 2 | DIBBS |
| 5325-01-182-8994 | 2009-08-236 | 4 | DIBBS |
| 5325-01-182-8994 | 2009-07-189 | 500 | DIBBS |
| 5325-01-182-8994 | 2009-06-167 | 1 | DIBBS |
| 5325-01-182-8994 | 2009-05-134 | 500 | DIBBS |
| 5325-01-182-8994 | 2009-03-61 | 1 | DIBBS |
| 5325-01-182-8994 | 2009-01-22 | 409 | DIBBS |
| 5325-01-182-8994 | 2009-01-14 | 405 | DIBBS |
| 5325-01-182-8994 | 2009-01-14 | 411 | DIBBS |
| 5325-01-182-8994 | 2008-10-289 | 85 | DIBBS |
| 5325-01-182-8994 | 2008-02-36 | 235 | DIBBS |
| 5325-01-182-8994 | 2007-11-318 | 30 | United States |
| 5325-01-182-8994 | 2007-11-318 | 30 | United States |
Cross Reference | NSN 5325-01-182-8994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9207 | 84256 | AVIBANK MFG., INC. |
| H117K1889 | 83014 | HARTWELL CORPORATION |
| HS4710-1 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS4710-1 | 09094 | QRP, INC. |
| HS4710-1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| HS4710-1 | 84256 | AVIBANK MFG., INC. |
| HS4710-1 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-182-8994
Related Products | NSN 5325-01-182-8994
Technical Data | NSN 5325-01-182-8994
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 302 HOUSING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE HOUSING |
| SURFACE TREATMENT | PASSIVATE EJECTOR SPRING PASSIVATE HOUSING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE TREATMENT RESPONSE EJECTOR SPRING MIL-S-5059 MIL SPEC SINGLE TREATMENT RESPONSE HOUSING |

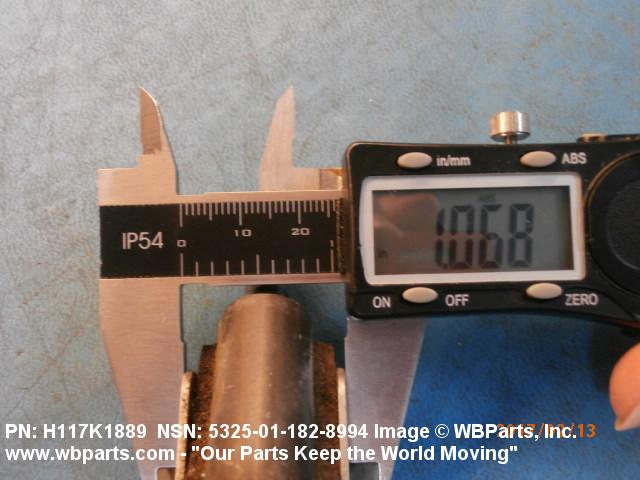

| THICKNESS | 1.064 INCHES NOMINAL |
| LATCH OVERALL LENGTH | 6.930 INCHES NOMINAL |
| SPECIAL FEATURES | BULLET NOSE PIN TYPE WITH RAISED TRIGGER; ALUMINUM ALLOY PARTS: GUIDE BLOCK; PIVOT SPACER; BUSHING BUTTON; FINISH: ANODIZED PER MIL-A-8625; OTHER STEEL COMPONENTS: LINK; BUSHING; STEP PIN; STUD PIN; RIVETS |
| MANUFACTURERS CODE | 8V613 |
| MFR SOURCE CONTROLLING REFERENCE | HS4710-1 |
Restrictions/Controls & Freight Information | NSN 5325-01-182-8994
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-182-8994
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
