NSN 5325-01-150-4867 11280003, 1128000-3, 28S143
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-150-4867 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 11280003, 1128000-3, 28S143, 28S14-3, 5325-01-150-4867, 01-150-4867, 5325011504867, 011504867
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 APR 1983 | 01-150-4867 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

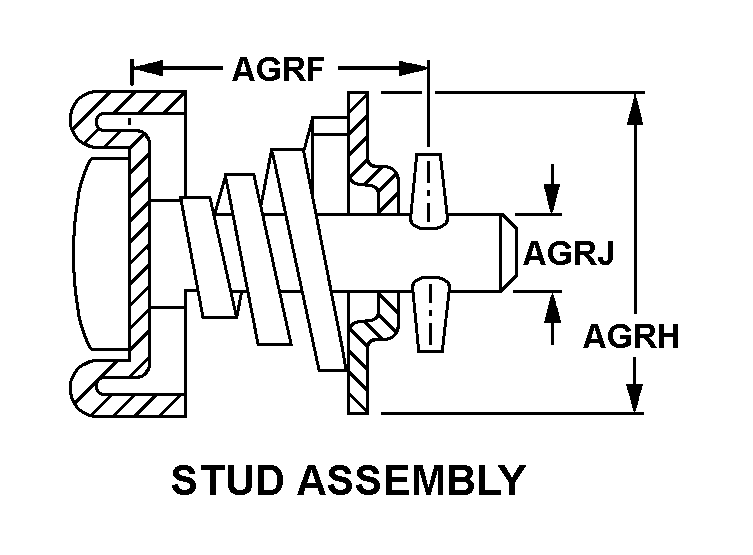

Drawings & Photos | NSN 5325-01-150-4867
Demand History | NSN 5325-01-150-4867
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-150-4867 | 2018-02-43 | 150 | US |
| 5325-01-150-4867 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5325-01-150-4867 | 2014-03-65 | 2485 | DIBBS |
| 5325-01-150-4867 | 2013-08-240 | 1493 | DIBBS |
| 28S143 | 2013-01-17 | 275 | US |
| 5325-01-150-4867 | 2010-03-81 | 333 | DIBBS |
| 5325-01-150-4867 | 2009-08-238 | 4000 | DIBBS |
| 5325-01-150-4867 | 2009-02-42 | 5260 | DIBBS |
| 5325-01-150-4867 | 2008-11-316 | 1871 | DIBBS |
| 5325-01-150-4867 | 2008-10-282 | 3986 | DIBBS |
| 5325-01-150-4867 | 2008-07-197 | 9 | US |
| 5325-01-150-4867 | 2008-02-36 | 3445 | DIBBS |
