NSN 5325-01-054-6660 C74497B, C7449-7B, D15006C1
Product Details | TURNLOCK FASTENER STUD ASSEMBLY

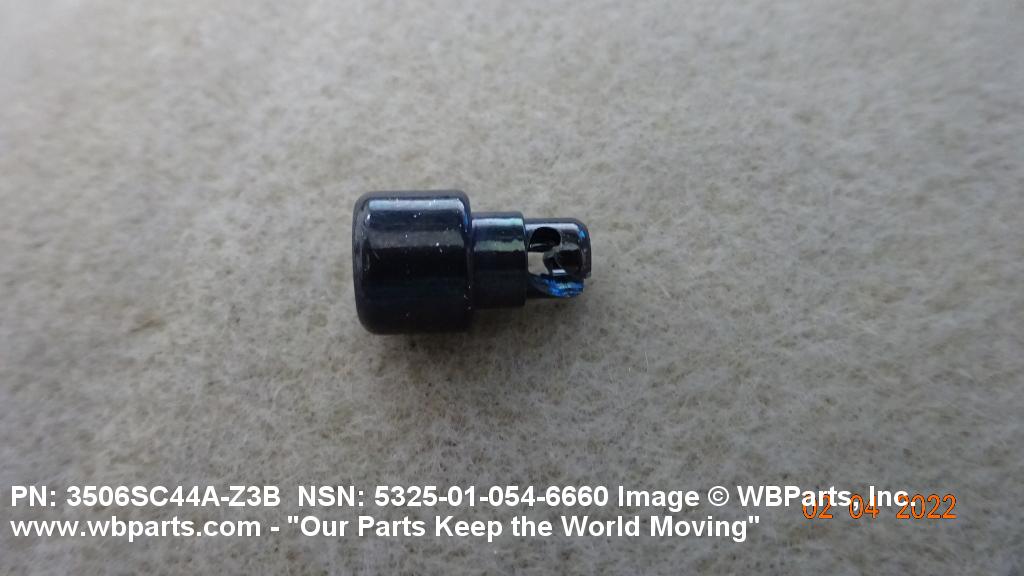

5325-01-054-6660 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: C74497B, C7449-7B, D15006C1, D1500-6-C-1, F235A013106, F235A013-106, PFSC3.5-44A IB, PFSC3-1/2-44ASS, PFSC31244ABLACK, PFSC3-1-2-44ABLACK, PFSC31244ASS, PFSC3544ACBB, PFSC35-44ACBB, PFSC3544AIB, 108532, 10853-2, 3506SC44AZ3B, 3506-SC44A-Z3B, 5325-01-054-6660, 01-054-6660, 5325010546660, 010546660
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JAN 1978 | 01-054-6660 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-054-6660
Demand History | NSN 5325-01-054-6660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-054-6660 | 2024-02-38 | 100 | GE |
| 5325-01-054-6660 | 2023-03-89 | 8 | US |
| 5325-01-054-6660 | 2023-02-41 | 200 | US |
| 5325-01-054-6660 | 2022-01-25 | 100 | United States |
| 5325-01-054-6660 | 2017-07-198 | 1067 | DIBBS |
| 5325-01-054-6660 | 2016-05-130 | 616 | DIBBS |
| 5325-01-054-6660 | 2015-01-28 | 73 | US |
| 3506SC44AZ3B | 2014-07-190 | 200 | EG |
| 3506SC44AZ3B | 2014-07-190 | 400 | EG |
| 5325-01-054-6660 | 2014-02-50 | 50 | IL |
| 3506SC44AZ3B | 2013-06-168 | 100 | US |
| 5325-01-054-6660 | 2013-04-100 | 2076 | DIBBS |
| C74497B | 2012-08-237 | 56 | United States |
| 5325-01-054-6660 | 2012-05-128 | 4 | us |
| 5325-01-054-6660 | 2010-08-243 | 4 | United States |
| 5325-01-054-6660 | 2010-04-100 | 532 | DIBBS |
| 5325-01-054-6660 | 2010-01-11 | 663 | DIBBS |
| 3506SC44AZ3B | 2009-07-189 | 24 | US |
| 5325-01-054-6660 | 2008-09-270 | 550 | DIBBS |
| 3506SC44AZ3B | 2008-07-189 | 100 | United States |
| 3506SC44AZ3B | 2008-04-102 | 10 | US |
Cross Reference | NSN 5325-01-054-6660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10853-2 | 36452 | DRS TECHNOLOGIES CANADA LTD |
| 3506-SC44A-Z3B | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| C7449-7B | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| C7449-7B | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| D1500-6-C-1 | 97928 | HUCK INTL INC |
| F235A013-106 | 78711 | TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION |
| PFSC3-1-2-44ABLACK | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| PFSC3-1/2-44ASS | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| PFSC3.5-44A IB | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| PFSC35-44ACBB | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-054-6660
Related Products | NSN 5325-01-054-6660
Technical Data | NSN 5325-01-054-6660
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1118 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |
| DIAMETER | 0.373 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.285 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 20 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | ANY ACCEPTABLE |
| EYELET OUTSIDE DIAMETER | 0.253 INCHES MINIMUM AND 0.257 INCHES MAXIMUM |
| STUD DIAMETER | 0.212 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| EYELET LENGTH | 0.135 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | COLOR BLACK |
