NSN 5325-01-037-0098 3640161, 364016-1, 01-037-0098
Product Details | RETAINING RING
5325-01-037-0098 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 3640161, 364016-1, 5325-01-037-0098, 01-037-0098, 5325010370098, 010370098
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAR 1977 | 01-037-0098 | 07623 ( RING, RETAINING ) |

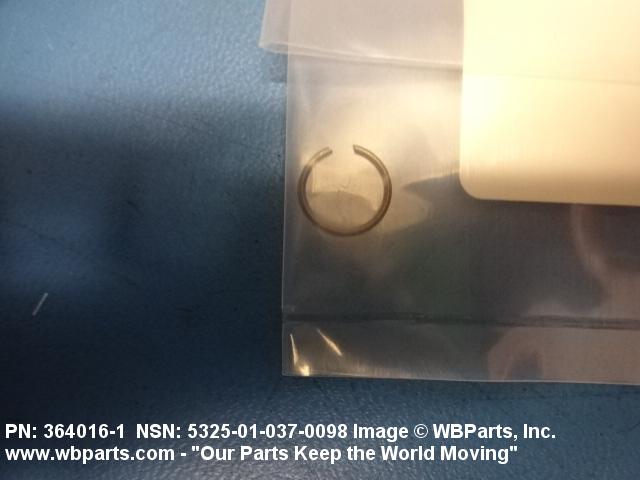

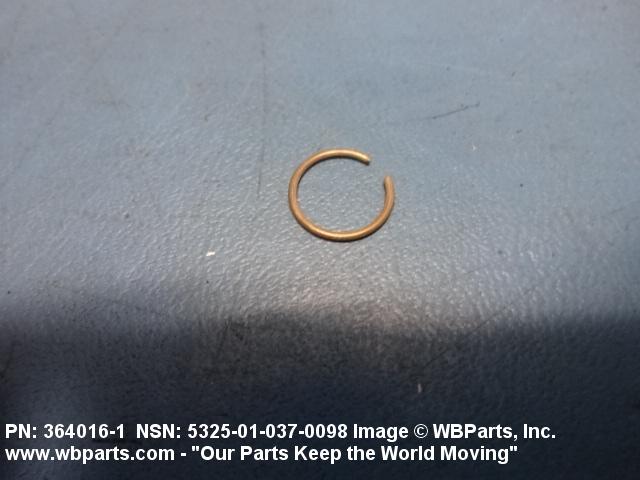

Drawings & Photos | NSN 5325-01-037-0098
Demand History | NSN 5325-01-037-0098
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-037-0098 | 2018-02-37 | 91 | DIBBS |
| 5325-01-037-0098 | 2018-01-24 | 100 | United States |
| 5325-01-037-0098 | 2017-10-295 | 189 | DIBBS |
| 5325-01-037-0098 | 2014-04-106 | 242 | DIBBS |
| 5325-01-037-0098 | 2014-03-85 | 242 | DIBBS |
| 5325-01-037-0098 | 2013-09-267 | 166 | DIBBS |
| 3640161 | 2013-06-171 | 5 | us |
| 5325-01-037-0098 | 2012-03-61 | 44 | DIBBS |
| 5325-01-037-0098 | 2012-02-37 | 44 | DIBBS |
| 3640161 | 2011-09-270 | 1 | United States |
Cross Reference | NSN 5325-01-037-0098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 364016-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-037-0098
Technical Data | NSN 5325-01-037-0098
| Characteristic | Specifications |
|---|---|
| MATERIAL | CRES 17-7PH AMS 5673 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A1 STRAIGHT GAP |
| END STYLE | C3 VERTEX BELOW CENTER |

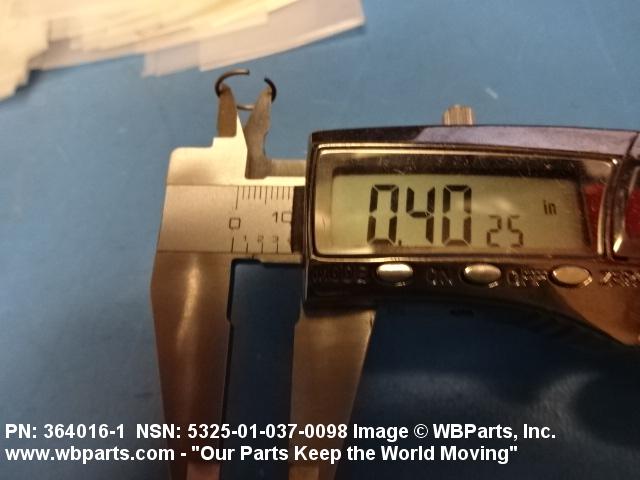

| INSIDE DIAMETER | 0.400 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |

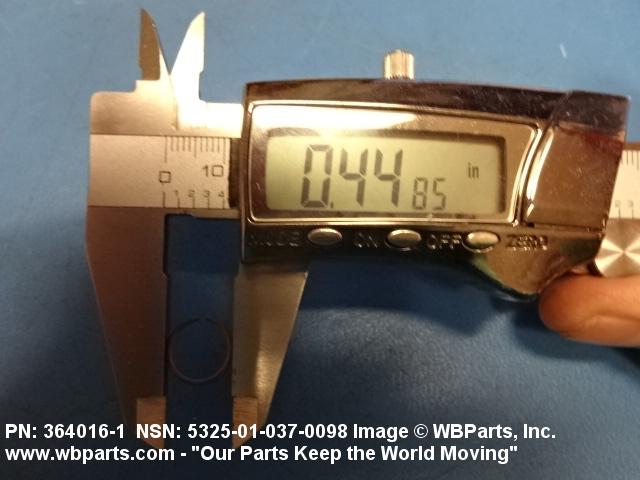

| OUTSIDE DIAMETER | 0.440 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D1 ROUND |
| USAGE DESIGN | EXTERNAL |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 364016-1 |
Restrictions/Controls & Freight Information | NSN 5325-01-037-0098
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-037-0098
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
