NSN 5325-01-027-6676 F750010B1, F7500-10B1, 01-027-6676
Product Details | PANEL FASTENER
5325-01-027-6676
Part Alternates: F750010B1, F7500-10B1, 5325-01-027-6676, 01-027-6676, 5325010276676, 010276676
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1976 | 01-027-6676 | 77777 ( ) |

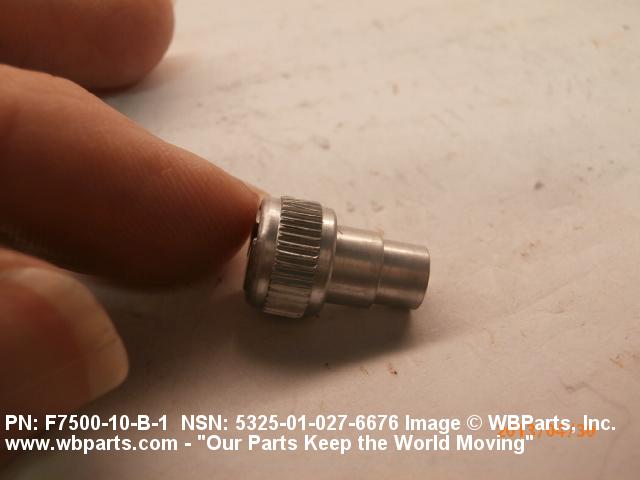

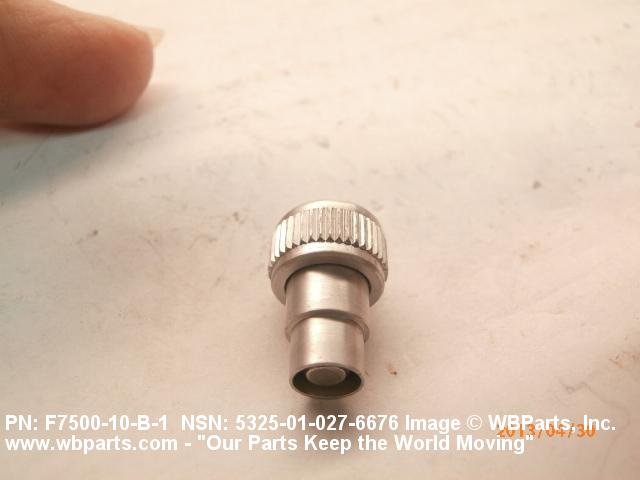

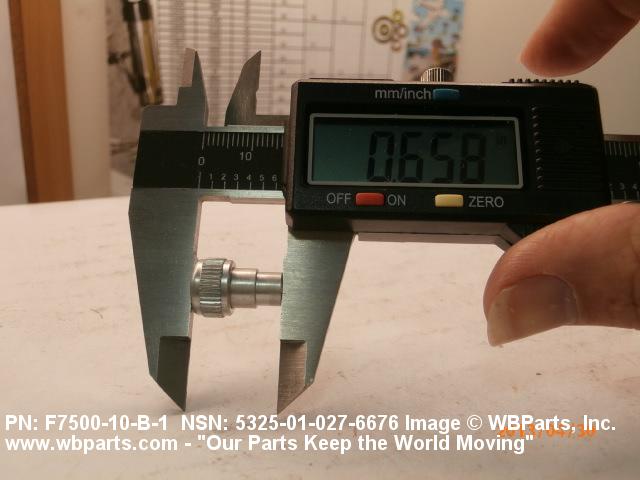

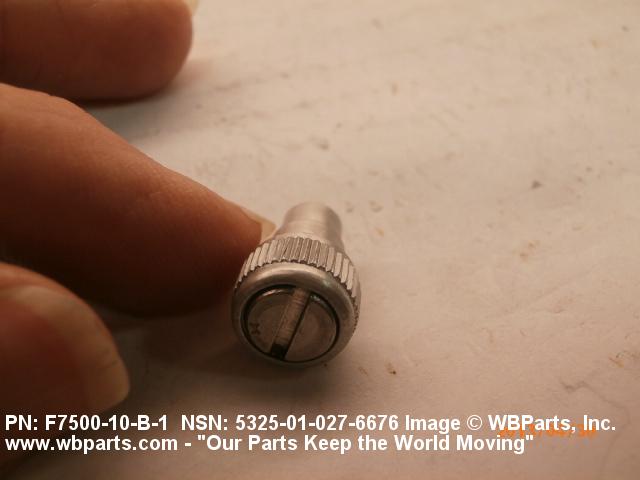

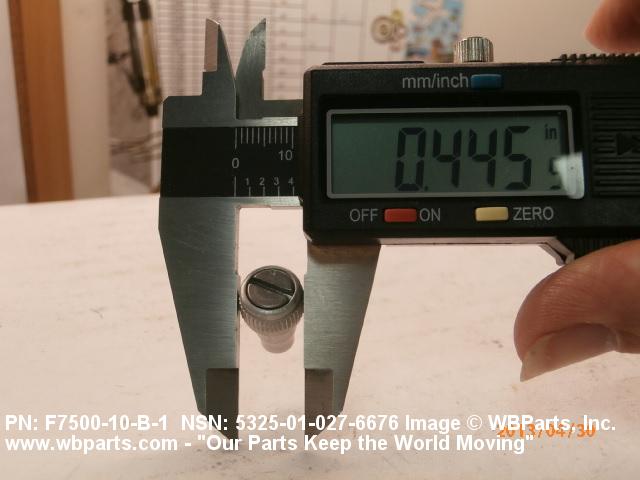

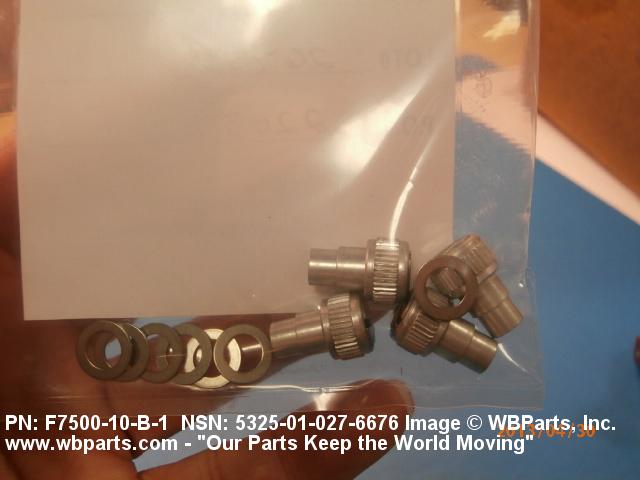

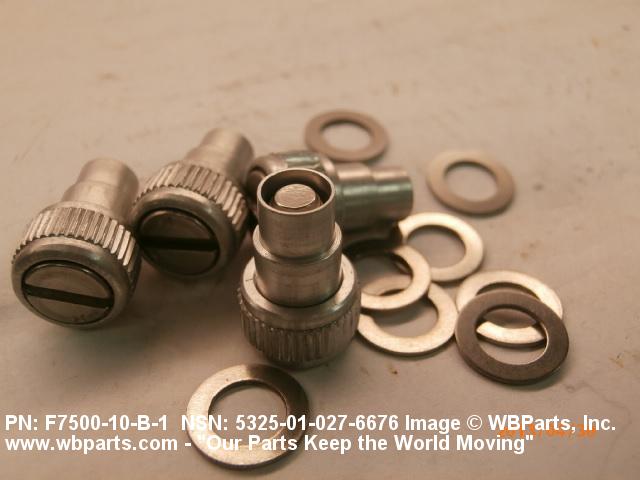

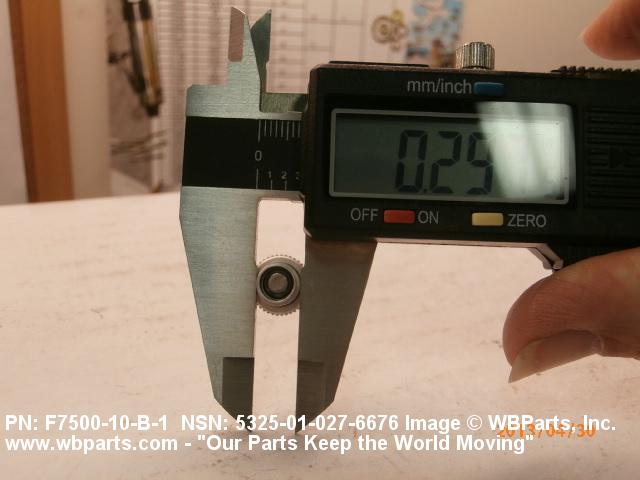

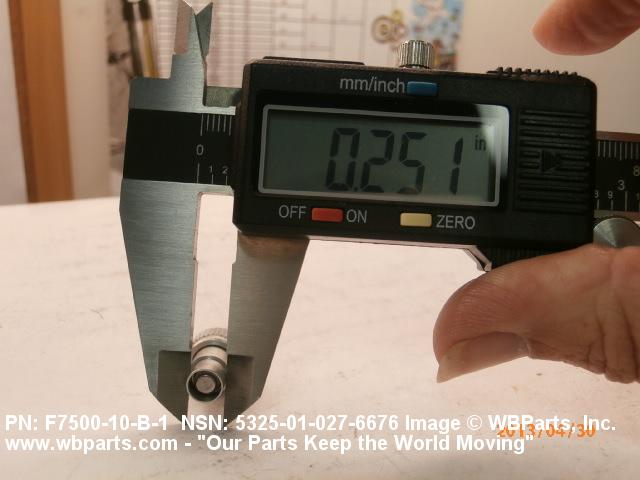

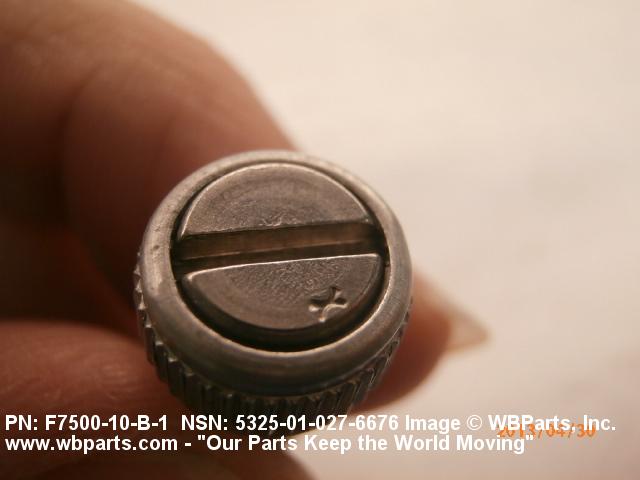

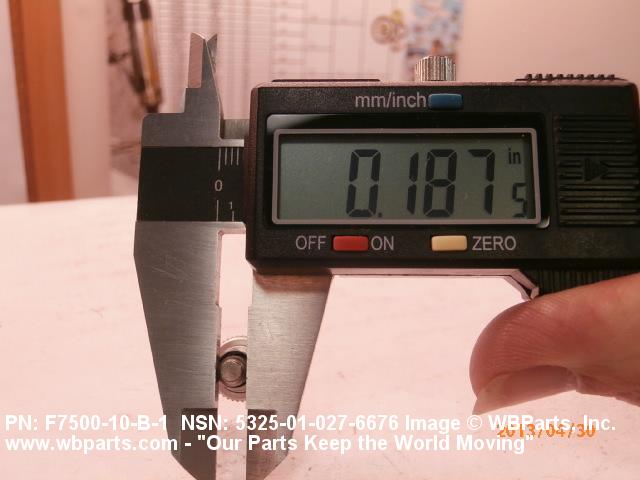

Drawings & Photos | NSN 5325-01-027-6676
Demand History | NSN 5325-01-027-6676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F750010B1 | 2013-04-113 | 4 | United States |
| 5325-01-027-6676 | 2008-02-44 | 20 | United Kingdom |
| 5325-01-027-6676 | 2008-02-44 | 40 | United Kingdom |
| 5325-01-027-6676 | 2008-02-44 | 60 | United Kingdom |
| 5325-01-027-6676 | 2008-02-44 | 100 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-027-6676
Related Products | NSN 5325-01-027-6676
Technical Data | NSN 5325-01-027-6676
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | CRES STUD,SPRING AND WASHERS PASSIVATED,ALUMINUM ALLOY KNOB AND SLEEVE ANODIZED,0.644 IN. LG STUD,0.190-32 UNF 3A THD,SLOTTED DRIVE,0.290 IN. LG KNOB,0.451 IN. DIA KNOB,0.362 IN. SLEEVE LG. 0.297 IN. OD LARGE END 0.250 IN. OD SMALL END 0.047 IN. MIN 0.109 IN. MAX TOP PANEL GRIP 0.313 IN. MIN 0.437 IN. MAX TOTAL GRIP RANGE |
| MANUFACTURERS CODE | 0HDW7 |
| DESIGN CONTROL REFERENCE | F7500-10B1 |
Restrictions/Controls & Freight Information | NSN 5325-01-027-6676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-027-6676
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
