NSN 5325-01-026-3244 MS166254125, MS16625-4125, MILR21248
Product Details | RETAINING RING

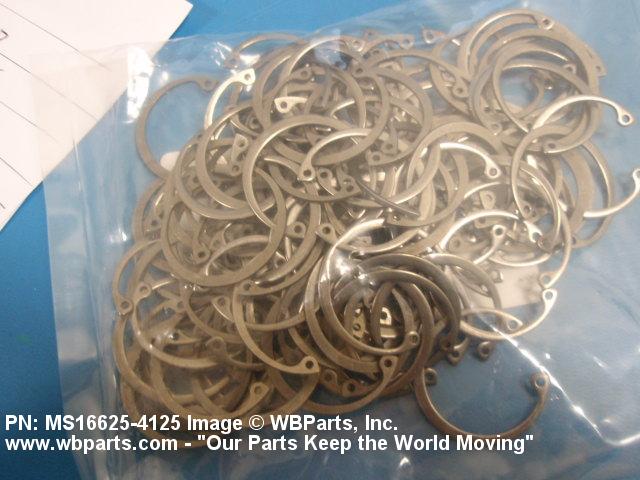

5325-01-026-3244 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166254125, MS16625-4125, MILR21248, MIL-R-21248, 5325-01-026-3244, 01-026-3244, 5325010263244, 010263244
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1976 | 01-026-3244 | 07623 ( RING, RETAINING ) |
Drawings & Photos | NSN 5325-01-026-3244
Demand History | NSN 5325-01-026-3244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS166254125 | 2019-06-176 | 6 | US |
| MS166254125 | 2017-10-290 | 28 | Colombia |
| MS16625-4125 | 2014-09-267 | 20 | GR |
| MILR21248 | 2013-04-112 | 5 | MX |
| MS166254125 | 2012-01-16 | 100 | United States |
| MILR21248 | 2011-02-47 | 24 | us |
| 5325-01-026-3244 | 2009-02-41 | 1360 | DIBBS |
| 5325-01-026-3244 | 2008-04-120 | 30 | US |
