NSN 5325-01-022-0444 056423 ITEM 5, 056423ITEM5, 56423SA5
Product Details | NONMETALLIC EYELET
5325-01-022-0444 A small, cylindrically-shaped item, designed to be flanged or crimped on both ends after insertion in a hole to serve as a lining of, or reinforcement for, the edges of a hole.
Part Alternates: 056423 ITEM 5, 056423ITEM5, 56423SA5, 56423SA-5, 58090, 5325-01-022-0444, 01-022-0444, 5325010220444, 010220444
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAY 1976 | 01-022-0444 | 22005 ( EYELET, NONMETALLIC ) |
Drawings & Photos | NSN 5325-01-022-0444
Demand History | NSN 5325-01-022-0444
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-022-0444 | 2010-04-100 | 143 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-022-0444
Technical Data | NSN 5325-01-022-0444
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |

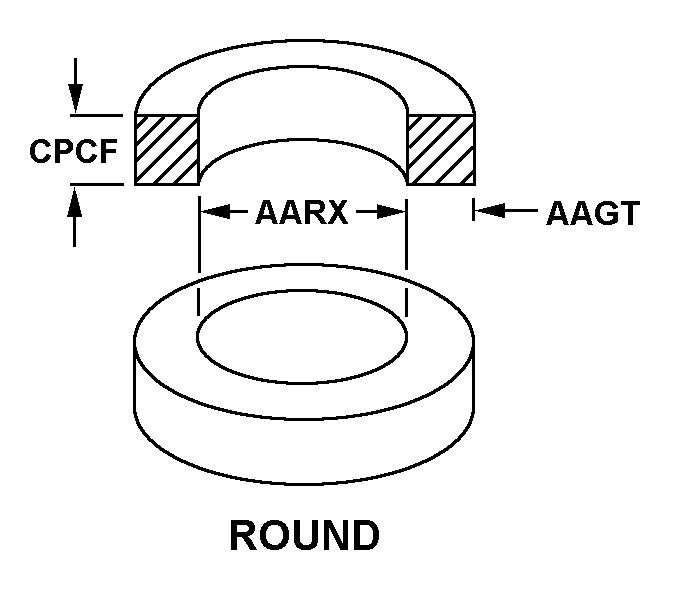

| EYELET STYLE | 1 ROUND |
| WALL THICKNESS | 0.245 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.360 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| WALL HEIGHT | 0.375 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MANUFACTURERS CODE | 96046 |
| DESIGN CONTROL REFERENCE | 58090 |
Restrictions/Controls & Freight Information | NSN 5325-01-022-0444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-022-0444
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
