NSN 5325-01-014-4414 1416, 2069186PC1416, 2625-012X01 PC 1 54-51-1864
Product Details | NONMETALLIC GROMMET
5325-01-014-4414 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 1416, 2069186PC1416, 2625-012X01 PC 1 54-51-1864, 2625012X01PC154511864, 54511864, 54-51-1864, 5325-01-014-4414, 01-014-4414, 5325010144414, 010144414
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 DEC 1975 | 01-014-4414 | 33729 ( GROMMET, NONMETALLIC ) |

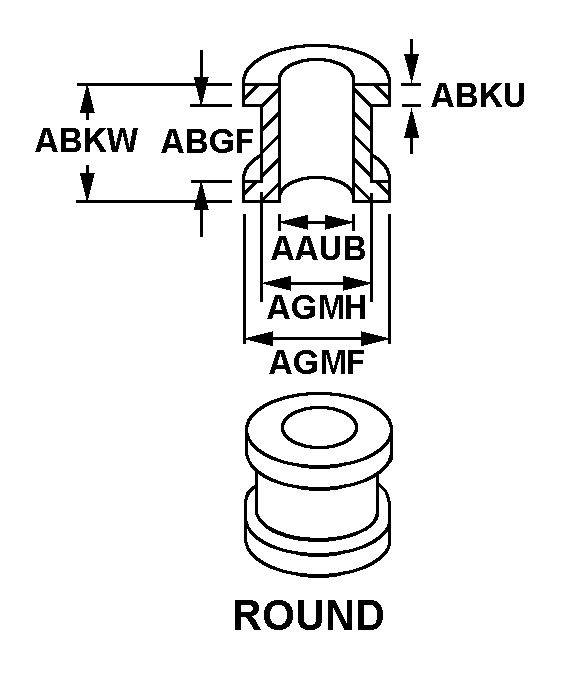

Drawings & Photos | NSN 5325-01-014-4414
Demand History | NSN 5325-01-014-4414
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-014-4414 | 2021-12-351 | 102 | United States |
| 5325-01-014-4414 | 2020-01-24 | 1 | United States |
| 5325-01-014-4414 | 2019-06-171 | 3188 | DIBBS |
| 5325-01-014-4414 | 2019-02-50 | 200 | DIBBS |
| 5325-01-014-4414 | 2018-06-165 | 100 | United States |
| 1416 | 2013-12-337 | 6 | United States |
| 5325-01-014-4414 | 2011-11-318 | 1529 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-014-4414
Technical Data | NSN 5325-01-014-4414
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| GROMMET STYLE | 15 ROUND |
| HOLE DIAMETER | 1.906 INCHES NOMINAL |
| GROOVE WIDTH | 1.000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 2.656 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 2.406 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| NONMETALLIC HARDNESS RATING | 55.0 MINIMUM SHORE DUROMETER A AND 65.0 MAXIMUM SHORE DUROMETER A |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
Restrictions/Controls & Freight Information | NSN 5325-01-014-4414
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-014-4414
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
