NSN 5325-01-011-7182 N04899, PFSC3 1-2-41A-BLACK, PFSC3-1-2-41A BLK

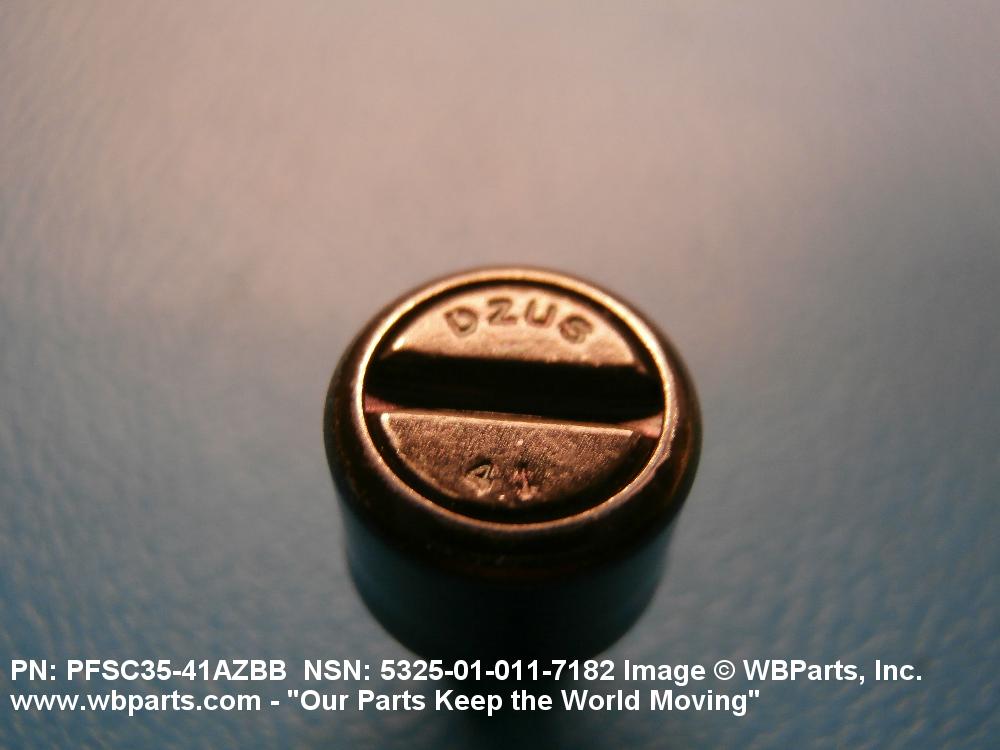

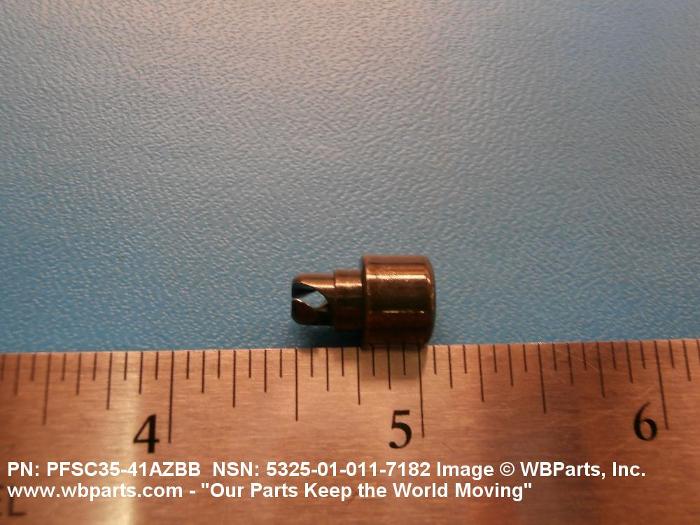

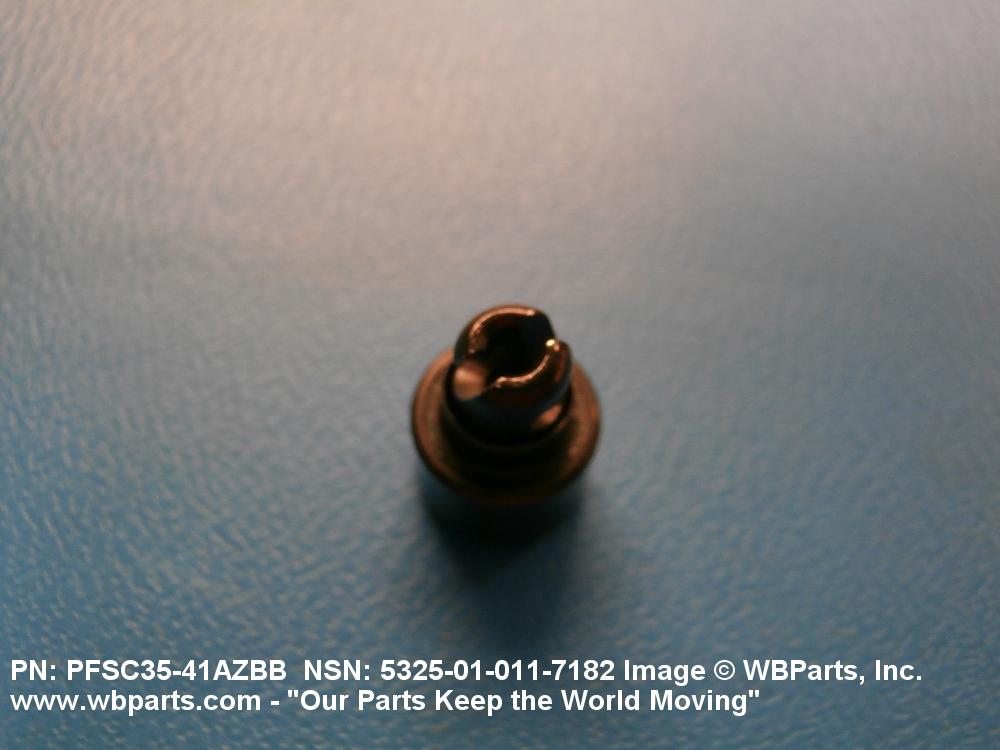

Product Details | TURNLOCK FASTENER STUD ASSEMBLY

5325-01-011-7182 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.

Part Alternates: N04899, PFSC3 1-2-41A-BLACK, PFSC3-1-2-41A BLK, PFSC31241ABLACK, PFSC31241ABLK, PFSC3541ACBB, PFSC35-41ACBB, PFSC3541AZBB, PFSC35-41AZBB, DME14006B2, DME1400-6-B-2, GS520U4, 1361904100, 136190-4100, 3506SC41AZ3B, 3506-SC41A-Z3B, 97125452, 971254-52, 5325-01-011-7182, 01-011-7182, 5325010117182, 010117182

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 OCT 1975	01-011-7182	18484 ( STUD ASSEMBLY, TURNLOCK FASTENER )

Drawings & Photos | NSN 5325-01-011-7182

Part Number	Request Date	QTY	Origin
5325-01-011-7182	2024-07-199	8	United States
3506SC41AZ3B	2018-11-309	200	us
3506-SC41A-Z3B	2014-06-157	50	United States
5325-01-011-7182	2014-03-61	1944	DIBBS
5325-01-011-7182	2013-02-59	12	US
5325-01-011-7182	2013-02-45	30	United States
PFSC3541AZBB	2012-10-289	2000	US
PFSC3541ACBB	2012-08-229	400	United States
PFSC3541ACBB	2012-08-228	400	United States
5325010117182	2012-02-46	24	Pakistan
PFSC3541AZBB	2011-01-11	100	UK
PFSC3541ACBB	2010-09-252	120	US
PFSC3541ACBB	2010-08-236	116	US
PFSC3541ACBB	2010-07-201	50	US
PFSC3541ACBB	2009-10-303	123	US
5325-01-011-7182	2007-12-354	100	US
5325-01-011-7182	2007-12-352	100	PK
97125452	2007-10-275	5	Singapore
3506SC41AZ3B	2006-10-283	300	us

Cross Reference | NSN 5325-01-011-7182

Part Number	Cage Code	Manufacturer
136190-4100	37695	RAYTHEON COMPANY DBA RAYTHEON
3506-SC41A-Z3B	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
971254-52	82577	RAYTHEON COMPANY DBA RAYTHEON
DME1400-6-B-2	97928	HUCK INTL INC
GS520U4	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
N04899	K0967	MBDA UK LTD
PFSC3 1-2-41A-BLACK	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
PFSC3-1-2-41A BLK	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
PFSC35-41ACBB	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION
PFSC35-41AZBB	72794	SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-011-7182

Compare

Related Products | NSN 5325-01-011-7182

5325-01-011-7493, 5325-01-011-7494, 5325-01-011-7581, 5325-01-011-7872, 5325-01-011-8013

Technical Data | NSN 5325-01-011-7182

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM-B-633 TY 2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
TURNLOCK STUD HEAD STYLE	3 FLAT FILLISTER
DIAMETER	0.373 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
STUD HEAD HEIGHT	0.285 INCHES NOMINAL
STUD ASSEMBLY STYLE	22 STUD ASSEMBLY
DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD	0.410 INCHES NOMINAL
EYELET OUTSIDE DIAMETER	0.373 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
STUD DIAMETER	0.212 INCHES MINIMUM AND 0.215 INCHES MAXIMUM
EYELET LENGTH	0.100 INCHES MINIMUM AND 0.120 INCHES MAXIMUM
DRIVE TYPE	SLOTTED
MATERIAL ACCOMMODATED THICKNESS	0.094 INCHES NOMINAL
