Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-868-3389 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 2930958, 293095-8, 5325-00-868-3389, 00-868-3389, 5325008683389, 008683389
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-868-3389 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

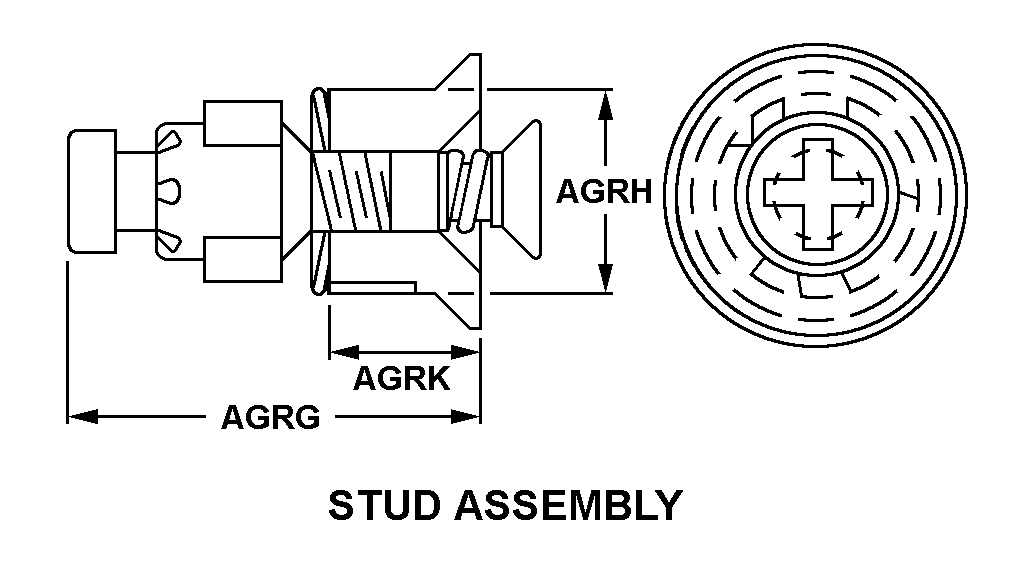

Drawings & Photos | NSN 5325-00-868-3389
Cross Reference | NSN 5325-00-868-3389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 293095-8 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-868-3389
Related Products | NSN 5325-00-868-3389
Technical Data | NSN 5325-00-868-3389
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 21 STUD HEAD |
| DIAMETER | 0.520 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.345 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 4 STUD ASSEMBLY |
| DISTANCE FROM STUD END TO LARGEST BEARING SURFACE OF EYELET | 1.140 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.373 INCHES NOMINAL |
| EYELET LENGTH | 0.795 INCHES NOMINAL |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.550 INCHES MINIMUM AND 0.624 INCHES MAXIMUM |
| MANUFACTURERS CODE | 60119 |
| DESIGN CONTROL REFERENCE | 293095-8 |
