NSN 5325-00-865-0478 B9141941, B914194-1, H32221
Product Details | NONMETALLIC GROMMET
5325-00-865-0478 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: B9141941, B914194-1, H32221, H322-2-1, H55921, H559-2-1, HN5G527, HN5G-52-7, HN5G52-7, G4000382, G400038-2, 02552P141, 13900109, 1390-0109, 16597F00M00R00, 16-597F00M00R00, 5325-00-865-0478, 00-865-0478, 5325008650478, 008650478
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-865-0478 | 33729 ( GROMMET, NONMETALLIC ) |

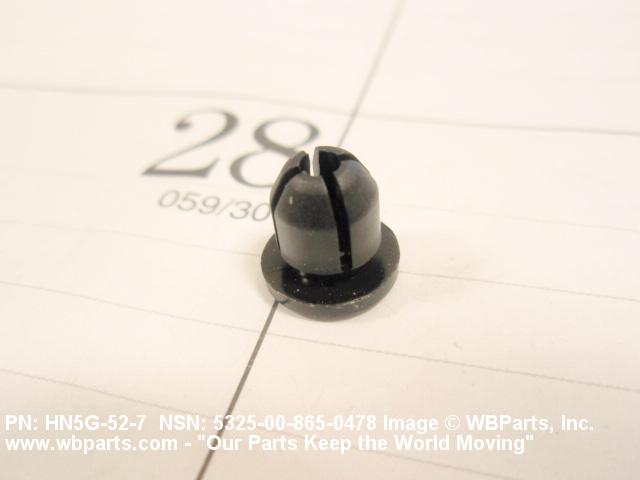

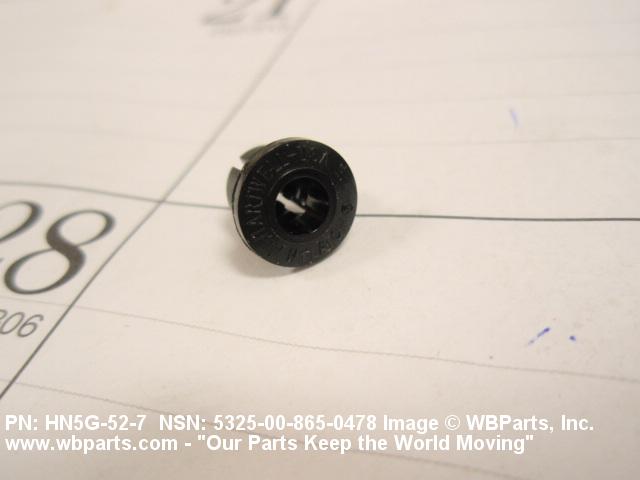

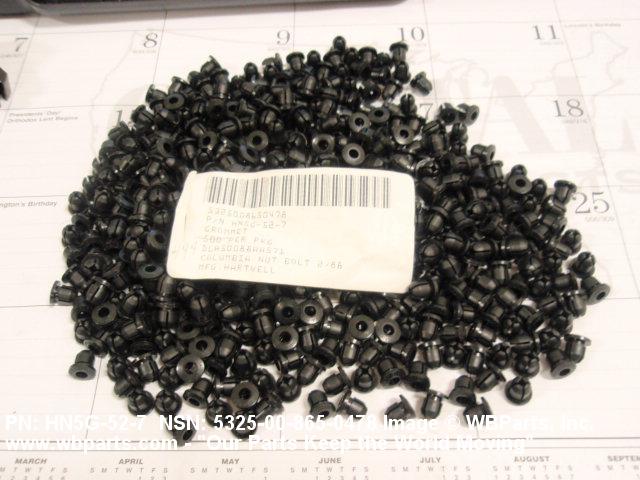

Drawings & Photos | NSN 5325-00-865-0478
Demand History | NSN 5325-00-865-0478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-865-0478 | 2019-07-207 | 1 | CL |
| H32221 | 2017-07-194 | 250 | United States |
| 5325-00-865-0478 | 2011-12-346 | 334 | DIBBS |
| H32221 | 2011-09-257 | 1 | DK |
| HN5G527 | 2010-08-240 | 1 | United States |
| 5325-00-865-0478 | 2010-08-234 | 2000 | us |
| H32221 | 2010-08-232 | 2000 | Hong Kong |
| B9141941 | 2010-02-54 | 100 | Hong Kong |
| HN5G527 | 2010-02-54 | 100 | Hong Kong |
| 5325-00-865-0478 | 2009-11-314 | 100 | US |
Cross Reference | NSN 5325-00-865-0478
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02552P141 | 06301 | DASD CORP INFORMATION SYSTEMS DIV |
| 1390-0109 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1390-0109 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 16-597F00M00R00 | 30331 | CONCURRENT COMPUTER CORPORATION |
| B914194-1 | K0268 | RAYTHEON SYSTEMS LTD |
| G400038-2 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| H322-2-1 | 83014 | HARTWELL CORPORATION |
| H559-2-1 | 83014 | HARTWELL CORPORATION |
| HN5G-52-7 | F6033 | TECNOTEC SARL |
| HN5G-52-7 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| HN5G52-7 | 83014 | HARTWELL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-865-0478
Related Products | NSN 5325-00-865-0478
Technical Data | NSN 5325-00-865-0478
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC ACETAL OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 27 ROUND |
| HOLE DIAMETER | 0.312 INCHES NOMINAL |
| GROOVE WIDTH | 0.057 INCHES NOMINAL |
| FLANGE THICKNESS | 0.080 INCHES NOMINAL |
| OVERALL HEIGHT | 0.467 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.420 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 0.297 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| NONMETALLIC HARDNESS RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5325-00-865-0478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-865-0478
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
V EA : Each |
