NSN 5325-00-859-3779 27S891AB, 27S8-9-1AB, 00-859-3779
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-859-3779 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 27S891AB, 27S8-9-1AB, 5325-00-859-3779, 00-859-3779, 5325008593779, 008593779
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-859-3779 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

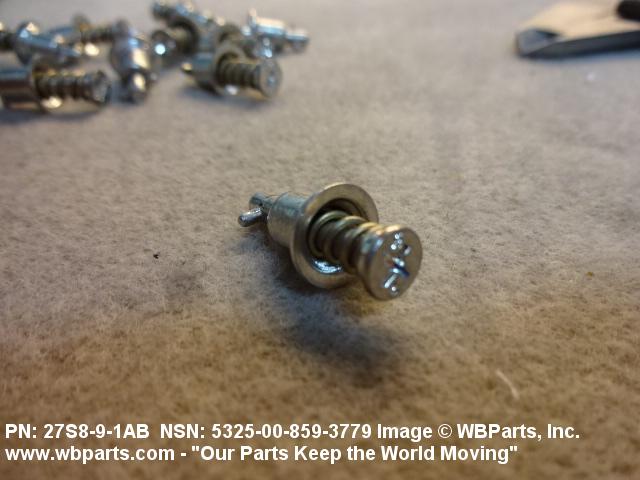

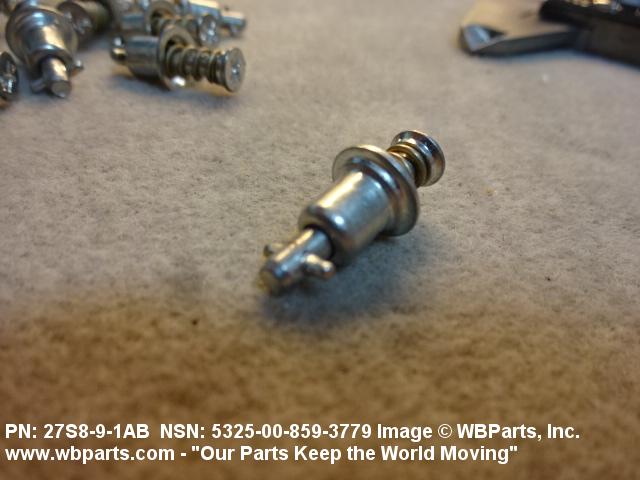

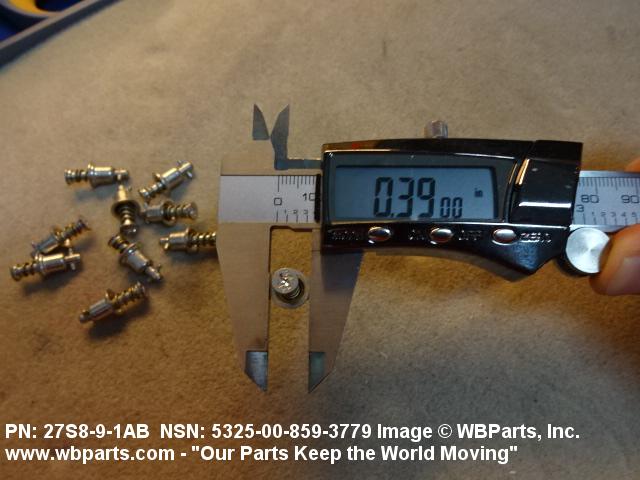

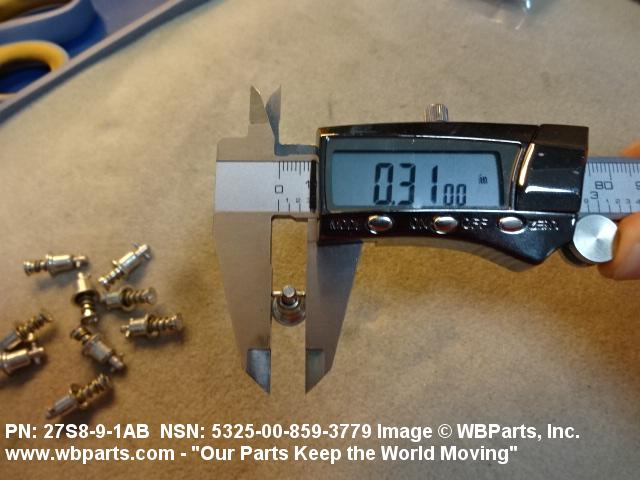

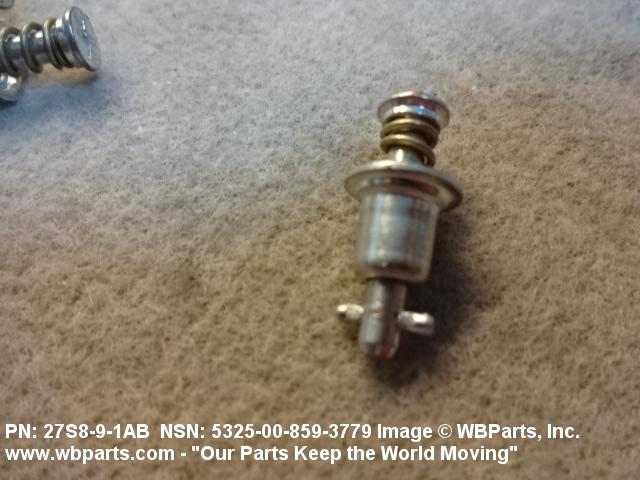

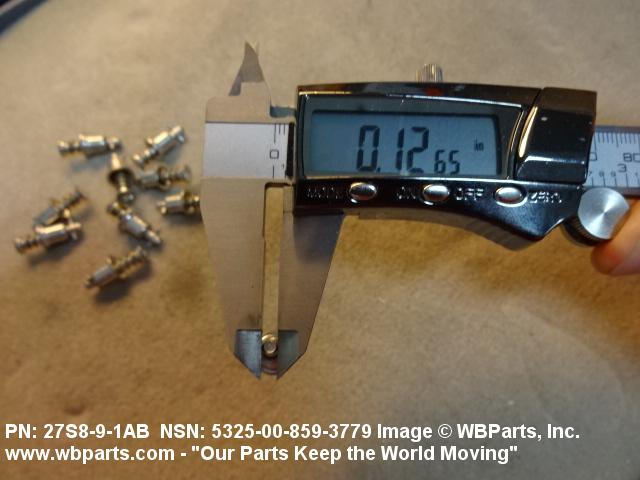

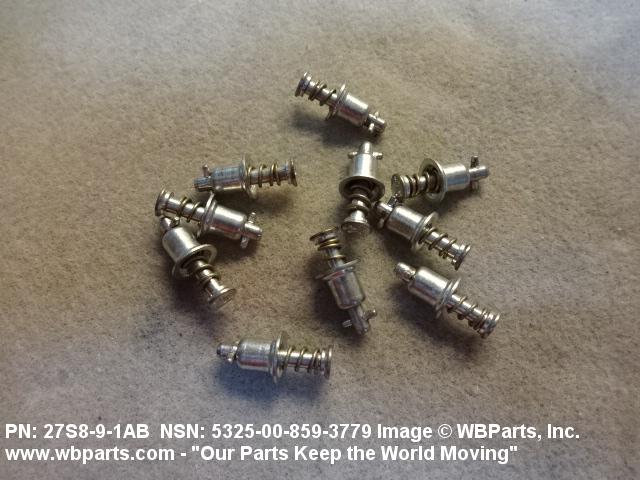

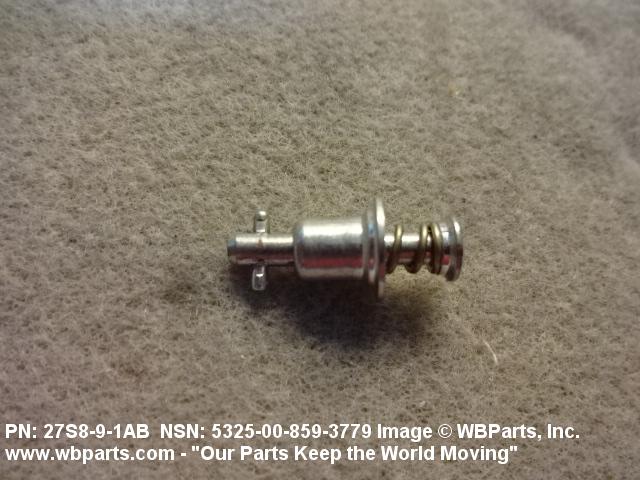

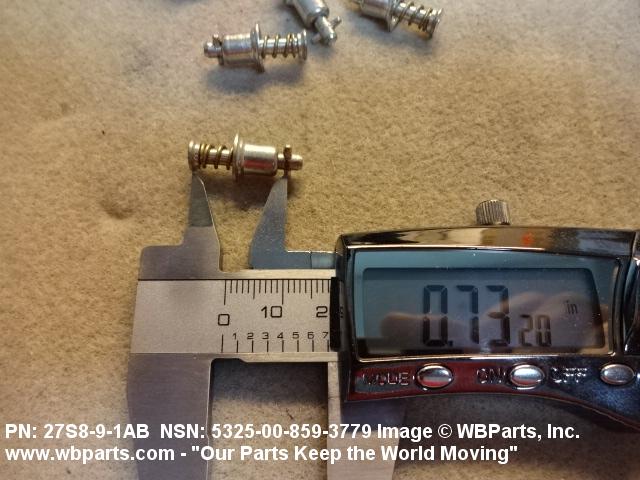

Drawings & Photos | NSN 5325-00-859-3779
Demand History | NSN 5325-00-859-3779
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 27S891AB | 2022-08-215 | 20 | United States |
| 5325-00-859-3779 | 2020-09-265 | 495 | Taiwan |
| 5325-00-859-3779 | 2020-08-224 | 150 | Taiwan |
| 5325-00-859-3779 | 2020-08-224 | 345 | Taiwan |
| 5325-00-859-3779 | 2020-06-181 | 495 | Taiwan |
| 5325-00-859-3779 | 2020-06-157 | 1 | DIBBS-RFPs |
| 27S891AB | 2018-11-316 | 10 | Thailand |
| 5325-00-859-3779 | 2017-03-87 | 100 | Taiwan |
| 5325-00-859-3779 | 2015-04-106 | 2193 | DIBBS |
| 5325-00-859-3779 | 2015-04-95 | 2193 | DIBBS |
| 5325-00-859-3779 | 2015-03-88 | 1822 | DIBBS |
| 5325-00-859-3779 | 2014-01-15 | 31 | Taiwan |
| 5325-00-859-3779 | 2011-03-88 | 10311 | DIBBS |
| 5325-00-859-3779 | 2010-02-36 | 6595 | DIBBS |
| 5325-00-859-3779 | 2009-09-266 | 2909 | DIBBS |
| 27S891AB | 2009-08-225 | 8 | US |
| 5325-00-859-3779 | 2009-04-105 | 2141 | DIBBS |
| 27S891AB | 2008-08-237 | 200 | US |
| 5325-00-859-3779 | 2008-03-64 | 1845 | DIBBS |
Cross Reference | NSN 5325-00-859-3779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27S8-9-1AB | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-859-3779
Related Products | NSN 5325-00-859-3779
Technical Data | NSN 5325-00-859-3779
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OVERALL |
| SURFACE TREATMENT | CADMIUM EJECTOR SPRING TIN EYELET TIN STUD |
| TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |
| DIAMETER | 0.390 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 8 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.730 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.247 INCHES NOMINAL |
| EYELET LENGTH | 0.328 INCHES NOMINAL |
| SECURING DEVICE TYPE | WASHER |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.270 INCHES MINIMUM AND 0.299 INCHES MAXIMUM |
| SPECIAL FEATURES | TORQ SET RECESS HEAD |
Restrictions/Controls & Freight Information | NSN 5325-00-859-3779
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-859-3779
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
