NSN 5325-00-852-6805 10606529-3, 10630050155, 10630050-155
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-852-6805 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 10606529-3, 10630050155, 10630050-155, 1126010-15, 260015W, 2600-15W, 480368-115, 5325-00-852-6805, 00-852-6805, 5325008526805, 106065293, 008526805, 480368115, 112601015
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-852-6805 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

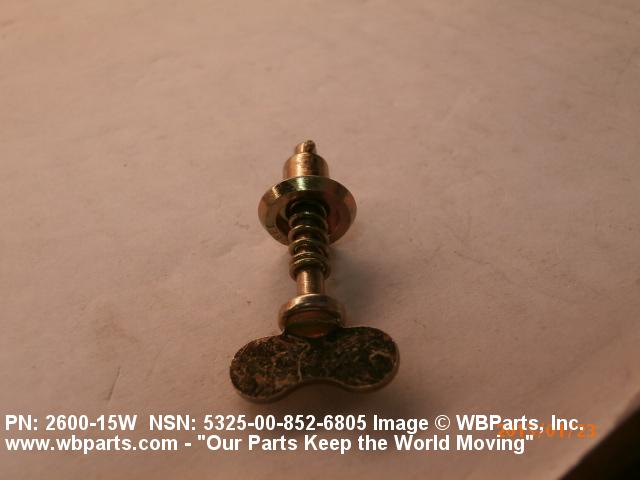

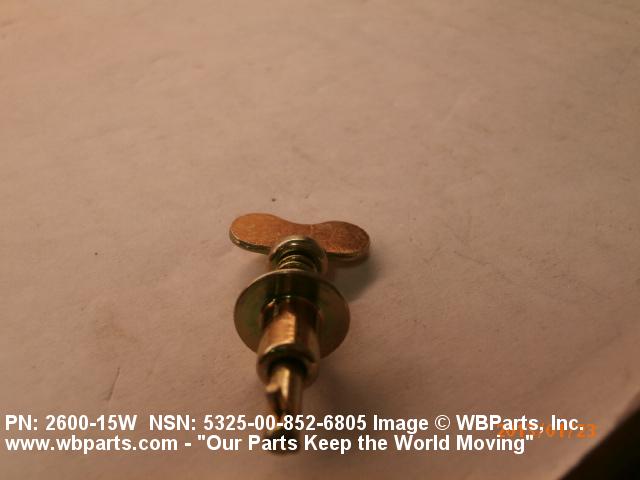

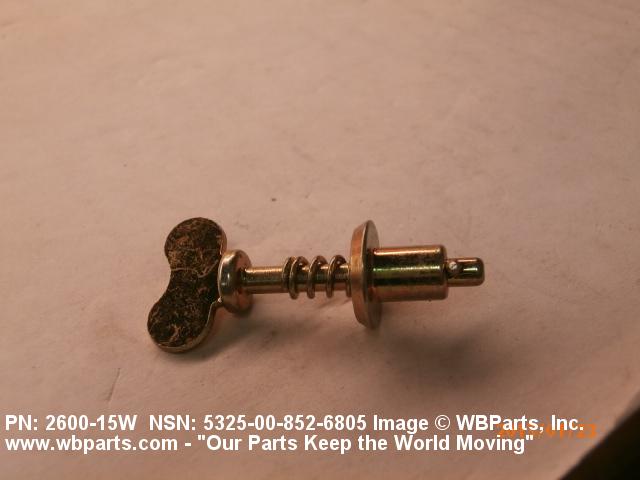

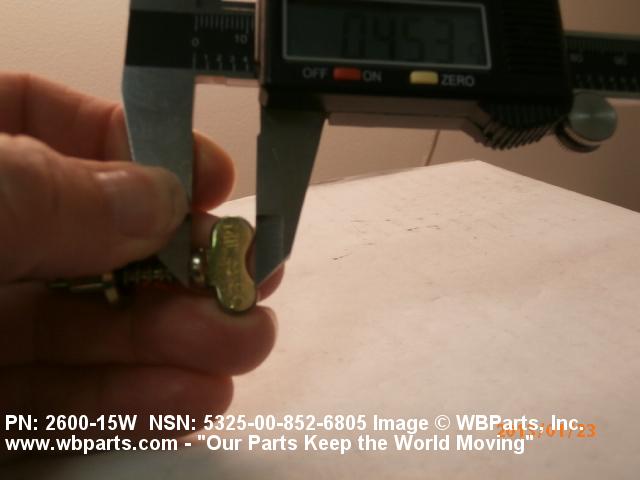

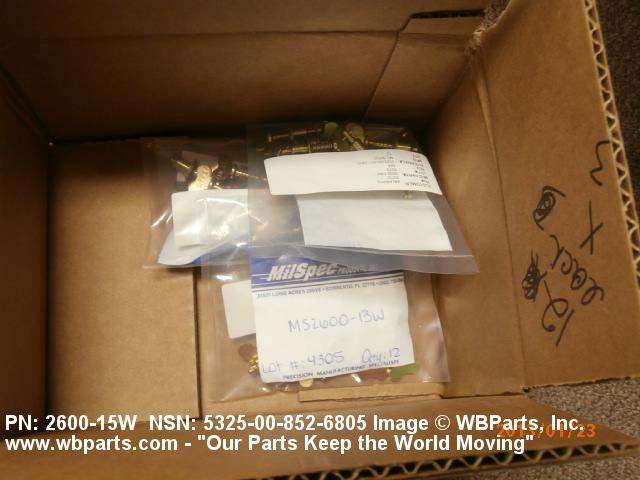

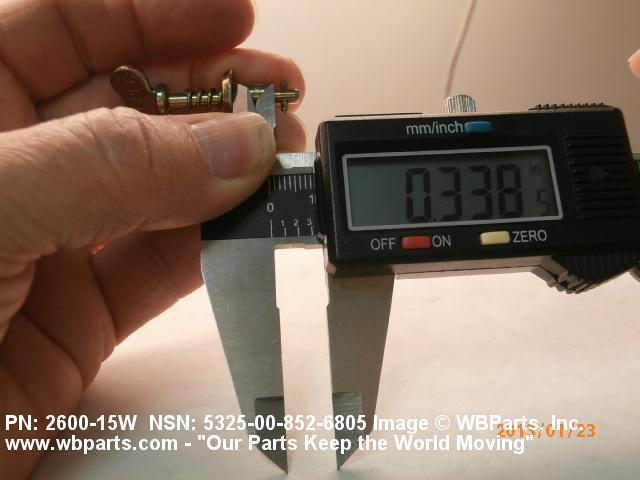

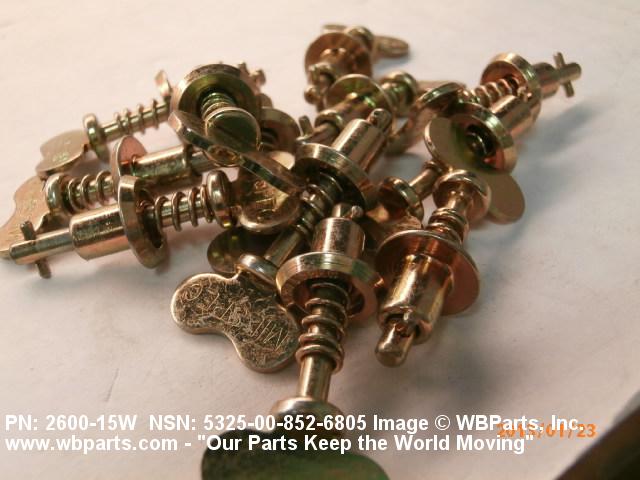

Drawings & Photos | NSN 5325-00-852-6805
Demand History | NSN 5325-00-852-6805
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-852-6805 | 2017-04-92 | 30 | DIBBS |
| 5325-00-852-6805 | 2017-02-52 | 31 | DIBBS |
| 5325-00-852-6805 | 2016-08-231 | 100 | DIBBS |
| 5325-00-852-6805 | 2016-08-221 | 112 | DIBBS |
| 5325-00-852-6805 | 2016-02-35 | 158 | DIBBS |
| 5325-00-852-6805 | 2013-08-240 | 100 | DIBBS |
| 5325-00-852-6805 | 2013-06-168 | 100 | DIBBS |
| 5325-00-852-6805 | 2013-05-150 | 147 | DIBBS |
| 5325-00-852-6805 | 2013-04-93 | 116 | DIBBS |
| 260015W | 2013-01-15 | 12 | United States |
| 5325-00-852-6805 | 2012-06-154 | 0 | DIBBS |
| 5325-00-852-6805 | 2011-10-300 | 164 | DIBBS |
| 5325-00-852-6805 | 2010-04-113 | 200 | DIBBS |
| 5325-00-852-6805 | 2010-04-97 | 211 | DIBBS |
| 5325-00-852-6805 | 2009-01-06 | 400 | DIBBS |
| 5325-00-852-6805 | 2008-12-336 | 241 | DIBBS |
| 5325-00-852-6805 | 2008-11-324 | 130 | DIBBS |
| 5325-00-852-6805 | 2008-09-259 | 62 | DIBBS |
| 5325-00-852-6805 | 2008-09-254 | 67 | DIBBS |
| 5325-00-852-6805 | 2008-06-155 | 48 | DIBBS |
| 5325-00-852-6805 | 2008-05-148 | 45 | DIBBS |
| 5325-00-852-6805 | 2008-03-86 | 63 | DIBBS |
Cross Reference | NSN 5325-00-852-6805
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10606529-3 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10630050-155 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 10630050-155 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10630050-155 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 1126010-15 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 2600-15W | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 480368-115 | 02734 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 480368-115 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-852-6805
Technical Data | NSN 5325-00-852-6805
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 1009 EYELET STEEL PIN STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE EYELET QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE PIN ASTM A322 FED SPEC ALL MATERIAL RESPONSES OR ASTM A331 ASSN STD 2ND MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |

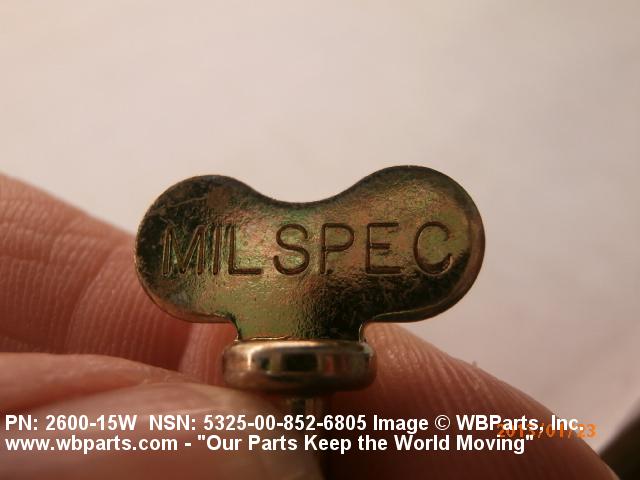

| TURNLOCK STUD HEAD STYLE | 10 FILLISTER WING |

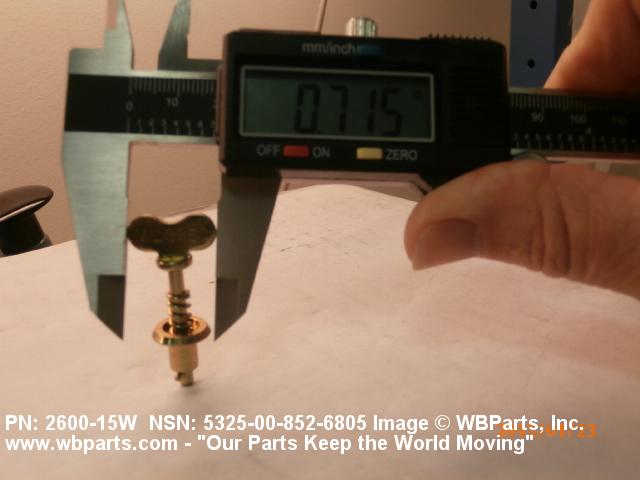

| HEAD LENGTH | 0.700 INCHES MINIMUM AND 0.740 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.420 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.962 INCHES MINIMUM AND 0.977 INCHES MAXIMUM |

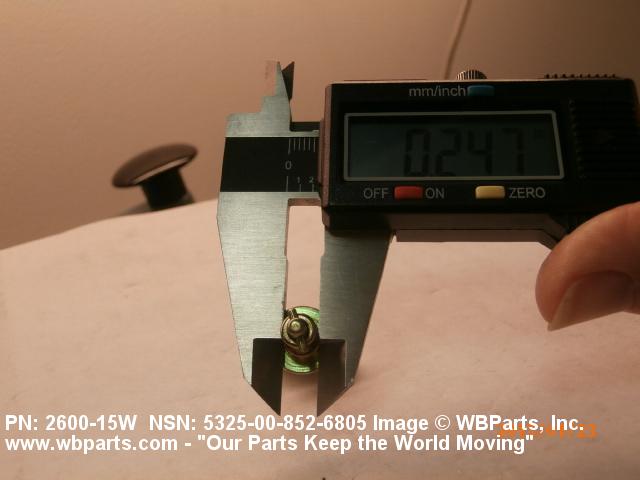

| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.420 INCHES MINIMUM AND 0.479 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 2600-15W |
Restrictions/Controls & Freight Information | NSN 5325-00-852-6805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
