NSN 5325-00-827-6797 0124961060, 012-4961-060, 11260082
Product Details | TURNLOCK FASTENER STUD ASSEMBLY

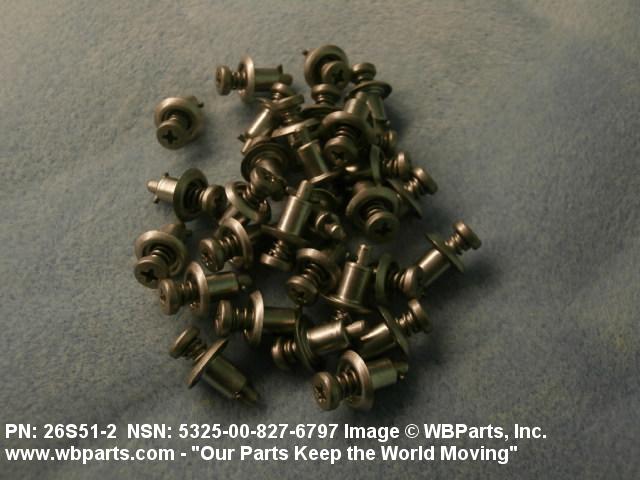

5325-00-827-6797 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 0124961060, 012-4961-060, 11260082, 1126008-2, 208A1931, 208A193-1, 26S512, 26S51-2, 91756871, 9175687-1, 917S6871, 917S687-1, 5325-00-827-6797, 00-827-6797, 5325008276797, 008276797
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-827-6797 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

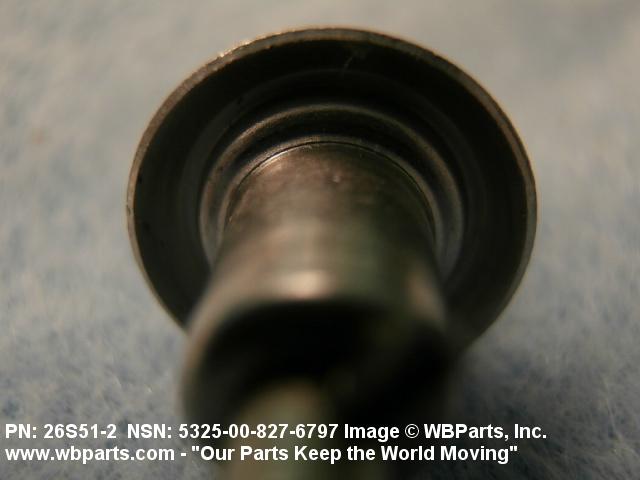

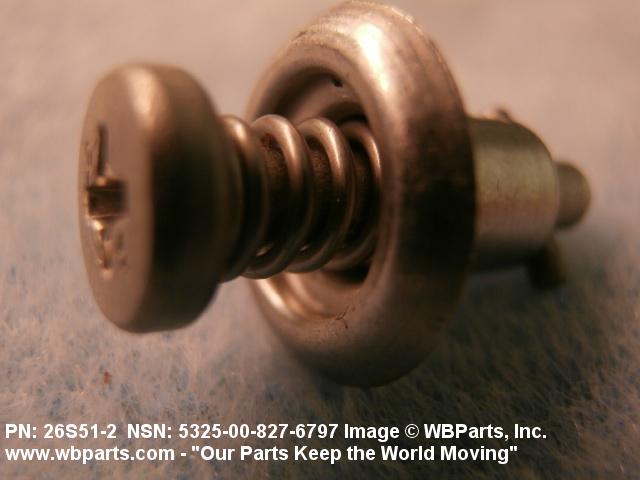

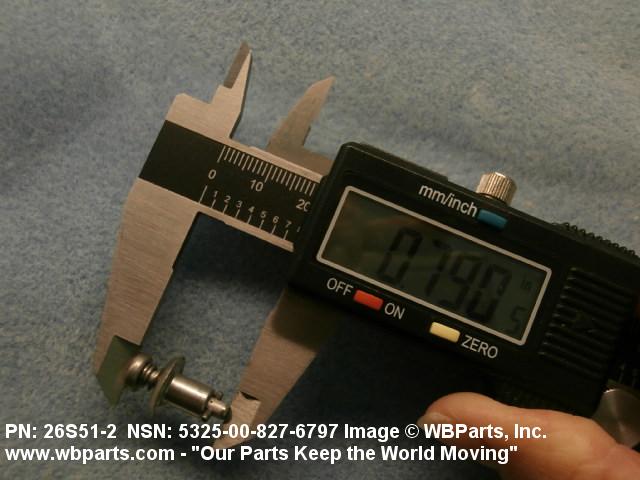

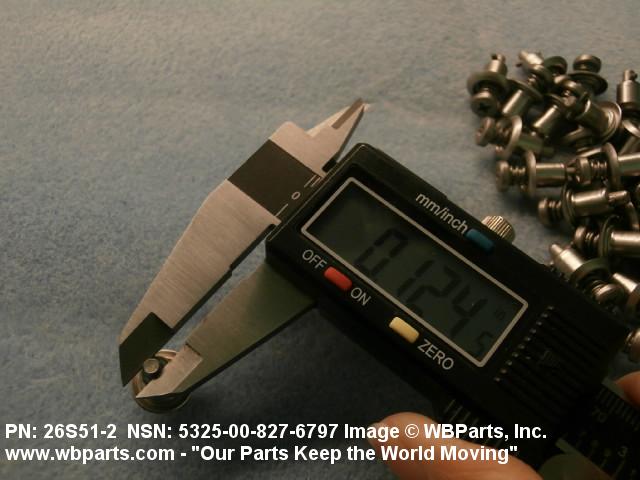

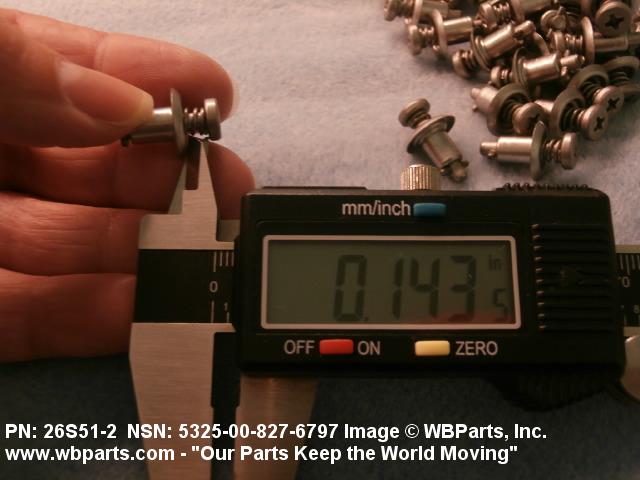

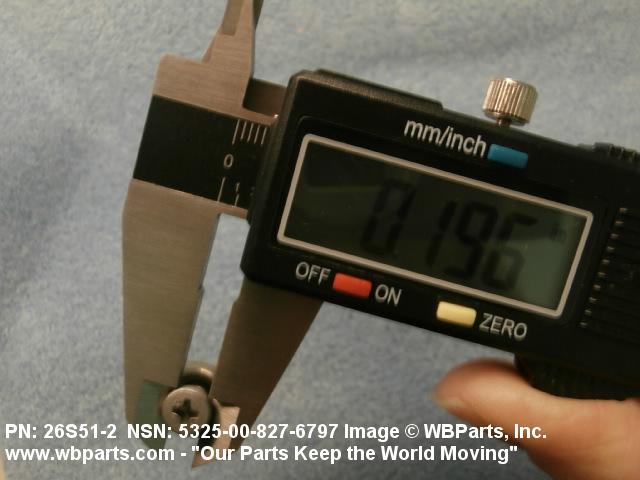

Drawings & Photos | NSN 5325-00-827-6797
Demand History | NSN 5325-00-827-6797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-827-6797 | 2024-06-169 | 17 | United States |
| 26S512 | 2023-12-340 | 300 | Czech Republic |
| 26S512 | 2023-03-75 | 114 | United States |
| 1126008-2 | 2022-06-177 | 284 | DIBBS |
| 26S51-2 | 2022-06-177 | 284 | DIBBS |
| 1126008-2 | 2022-06-167 | 210 | DIBBS |
| 26S51-2 | 2022-06-167 | 210 | DIBBS |
| 1126008-2 | 2021-11-322 | 284 | DIBBS |
| 26S51-2 | 2021-11-322 | 284 | DIBBS |
| 1126008-2 | 2021-07-207 | 240 | DIBBS |
| 26S51-2 | 2021-07-207 | 240 | DIBBS |
| 1126008-2 | 2021-07-196 | 240 | DIBBS |
| 26S51-2 | 2021-07-196 | 240 | DIBBS |
| 1126008-2 | 2020-11-321 | 234 | DIBBS |
| 26S51-2 | 2020-11-321 | 234 | DIBBS |
| 1126008-2 | 2020-11-309 | 234 | DIBBS |
| 26S51-2 | 2020-11-309 | 234 | DIBBS |
| 1126008-2 | 2019-02-37 | 795 | DIBBS |
| 26S51-2 | 2019-02-37 | 795 | DIBBS |
| 5325-00-827-6797 | 2014-02-56 | 848 | DIBBS |
| 5325-00-827-6797 | 2013-04-98 | 438 | DIBBS |
| 5325-00-827-6797 | 2013-01-29 | 0 | DIBBS |
| 5325-00-827-6797 | 2012-11-334 | 18 | DIBBS |
| 26S512 | 2012-10-297 | 400 | Czech Republic |
| 26S512 | 2012-06-159 | 800 | Czech Republic |
| 5325-00-827-6797 | 2012-03-75 | 145 | DIBBS |
| 5325-00-827-6797 | 2011-08-242 | 170 | DIBBS |
| 5325-00-827-6797 | 2011-08-234 | 79 | DIBBS |
Cross Reference | NSN 5325-00-827-6797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 012-4961-060 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 012-4961-060 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 1126008-2 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 208A193-1 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 26S51-2 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 9175687-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 917S687-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-827-6797
Related Products | NSN 5325-00-827-6797
Technical Data | NSN 5325-00-827-6797
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 EJECTOR SPRING STEEL COMP 305 EYELET STEEL COMP 302 PIN STEEL COMP 302 OR STEEL CORROSION RESISTING STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE EYELET QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE PIN QQ-W-423 FED SPEC 1ST MATERIAL RESPONSE OR COMP 384,CAGEC 71321 MFR REF 2ND MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |

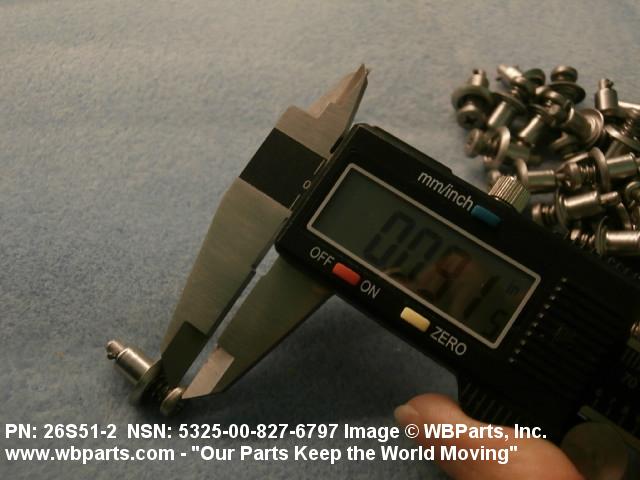

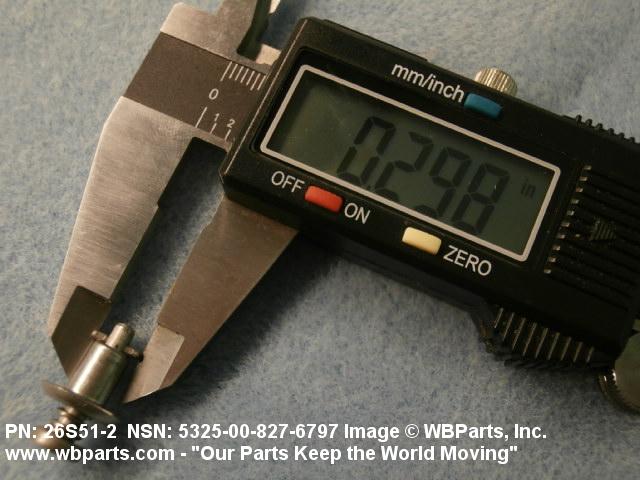

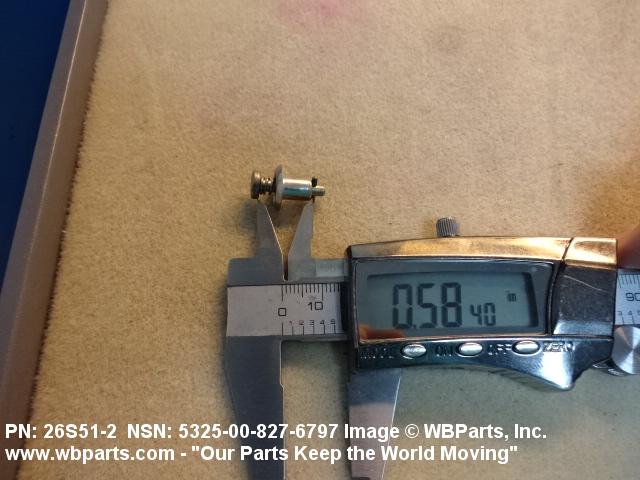

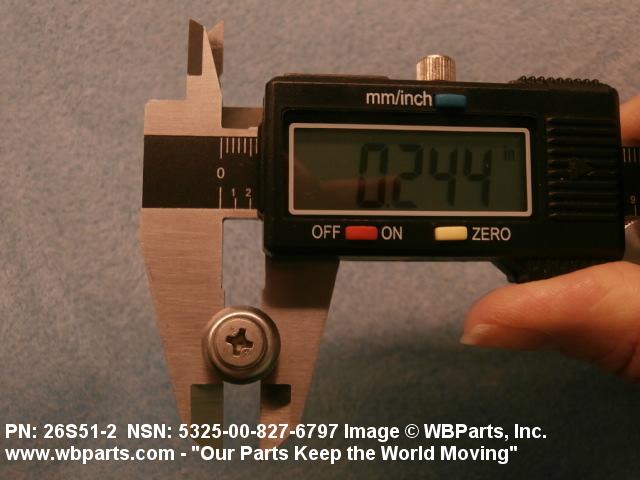

| DIAMETER | 0.298 INCHES MINIMUM AND 0.308 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.581 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.332 INCHES NOMINAL |

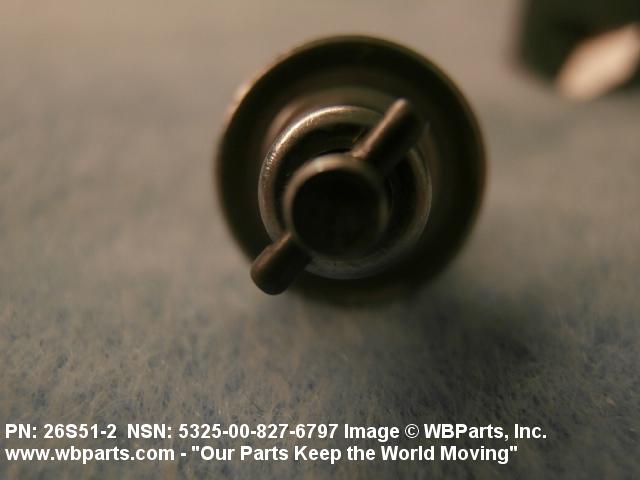

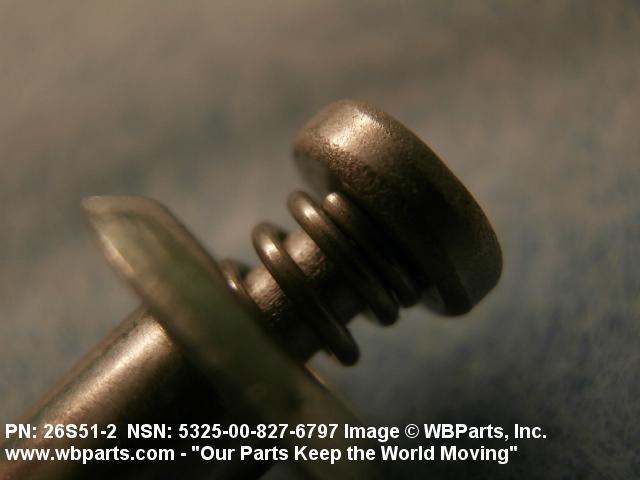

| SECURING DEVICE TYPE | SPRING |

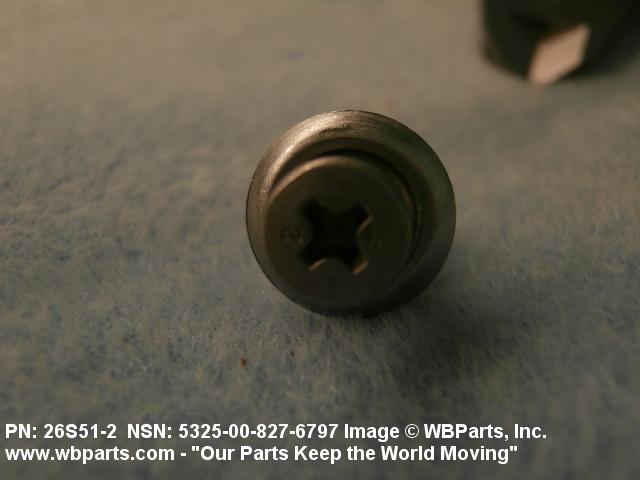

| DRIVE TYPE | CROSS RECESS |

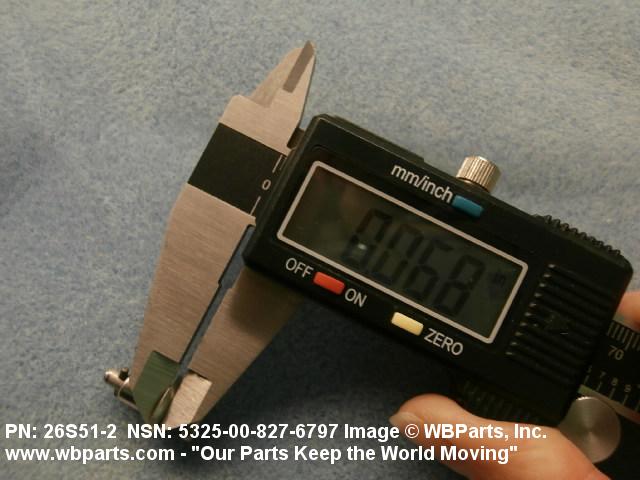

| MATERIAL ACCOMMODATED THICKNESS | 0.060 INCHES MINIMUM AND 0.089 INCHES MAXIMUM |
