Product Details | RETAINING RING

5325-00-811-3949 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: 10013329, 743472, 74347-2, 5325-00-811-3949, 00-811-3949, 5325008113949, 008113949

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-811-3949

Drawings & Photos | NSN 5325-00-811-3949


Cross Reference | NSN 5325-00-811-3949

Part Number Cage Code Manufacturer
10013329 06401 L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST
10013329 18876 U S ARMY AVIATION AND MISSILE COMMAND
10013329 56232 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
74347-2 70210 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
74347-2 72599 ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
74347-2 99193 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-811-3949

Technical Data | NSN 5325-00-811-3949

Characteristic Specifications
MATERIAL MUSIC WIRE
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED

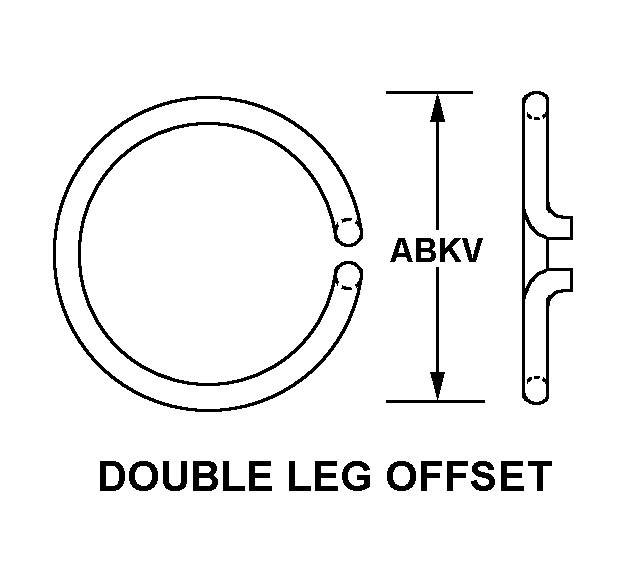

RING STYLE A33 DOUBLE LEG OFFSET
OUTSIDE DIAMETER 5.960 INCHES MINIMUM AND 6.010 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE D1 ROUND
MATERIAL DIAMETER 0.080 INCHES NOMINAL
USAGE DESIGN INTERNAL

Restrictions/Controls & Freight Information | NSN 5325-00-811-3949

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating Q 70
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
