NSN 5325-00-804-2769 MS166251156, MS16625-1156, N1300156CD

Product Details | RETAINING RING

5325-00-804-2769 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MS166251156, MS16625-1156, N1300156CD, N1300-156CD, N5000156MI, N5000-156MI, N5000156SMD, N-5000-156-S-MD, N5000-156-S-MD, NAS669156, NAS669-156, CBU1221, CR156CD, J901706, ZA3621007P29, ZA362-1007-P29, 5390910, 69998156, 69998-156, 14G31662, 14G316-62, 2185D15, 274843, 3000X156STCD, 3000-X156-ST-CD, 3901706, 52276, 5325-00-804-2769, 00-804-2769, 5365008042769, 5325008042769, 008042769

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-804-2769	07623 ( RING, RETAINING )

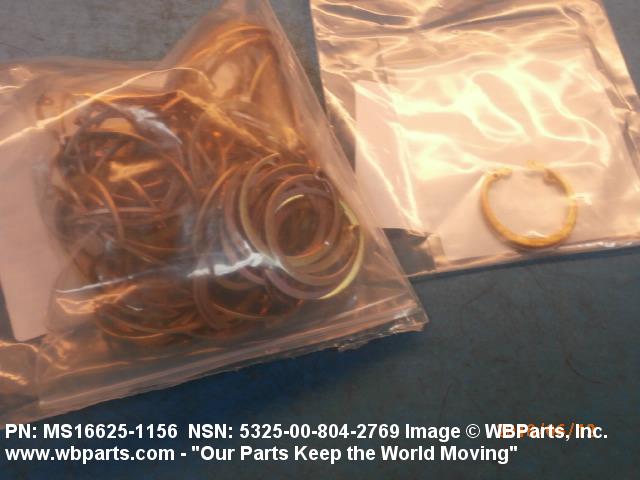

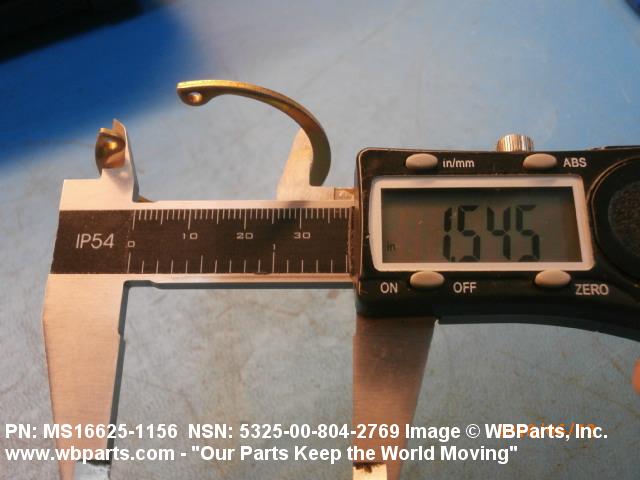

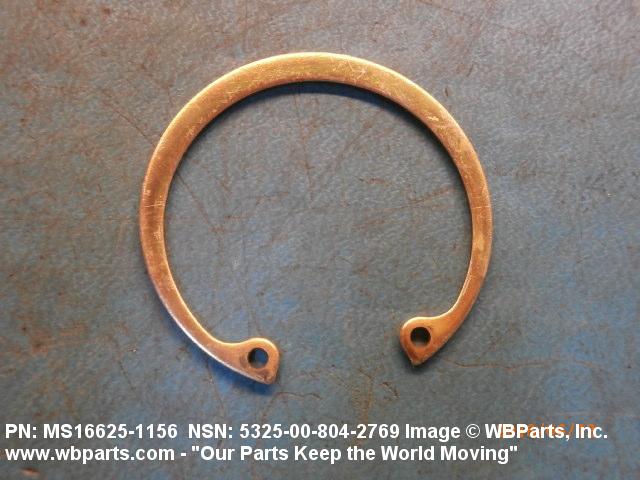

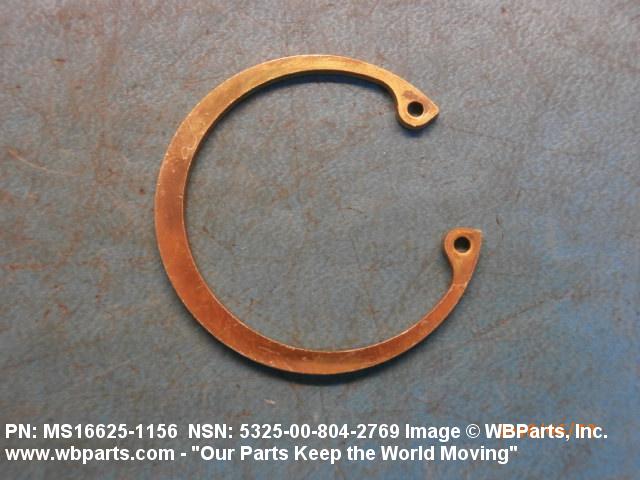

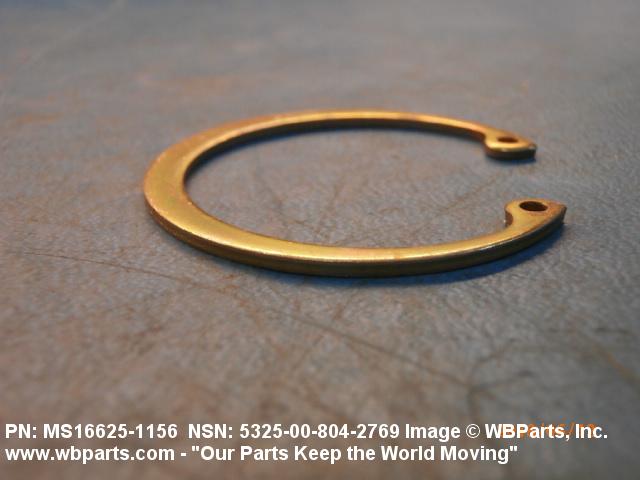

Drawings & Photos | NSN 5325-00-804-2769

Part Number	Request Date	QTY	Origin
5325-00-804-2769	2024-08-231	295	DIBBS
5325-00-804-2769	2023-10-299	358	DIBBS
5325-00-804-2769	2019-07-209	844	DIBBS
5325-00-804-2769	2018-04-92	12	United States
5325-00-804-2769	2017-07-192	390	MANUAL
MS16625-1156	2017-07-192	390	PK
MS166251156	2014-10-295	360	United States
MS166251156	2012-09-269	160	United States
MS166251156	2012-05-128	460	US
5325-00-804-2769	2010-06-160	417	DIBBS
MS166251156	2009-08-225	440	US
MS166251156	2008-08-224	200	United Arab Emirates
MS166251156	2008-08-222	200	United Arab Emirates
MS166251156	2008-06-179	30	Italy

Cross Reference | NSN 5325-00-804-2769

Part Number	Cage Code	Manufacturer
14G316-62	48521	COLT INDUSTRIES OPERATING CORP PRATT AND WHITNEY MACHINE TOOL DIV
14G316-62	79500	WESTINGHOUSE ELECTRIC CORP
2185D15	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
274843	30379	EUCLID INC
274843	73342	ALLISON TRANSMISSION, INC.
274843	97907	TEREX CORP
3000-X156-ST-CD	07382	ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
3000-X156-ST-CD	97464	TRUARC CO LLC
3901706	15434	CUMMINS INC.
52276	53397	NUMAX ELECTRONICS INC
5365008042769	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5390910	24617	GENERAL MOTORS CORP
5390910	72560	GENERAL MOTORS CORP DELCO PRODUCTS DIV
69998-156	73030	HAMILTON SUNDSTRAND CORPORATION
CBU1221	U5612	LEYLAND TRUCKS LTD FOR SPARE PARTS S E U6425
CR156CD	80756	SPIROLOX, INC.
J901706	10988	CNH INDUSTRIAL AMERICA LLC
MS16625-1156	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N-5000-156-S-MD	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
N1300-156CD	54963	SEEGER INC ANDERTON-UNITED PRODUCTS DIV
N5000-156-S-MD	79136	TRUARC COMPANY LLC DBA WALDES TRUARC
N5000-156MI	07382	ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
N5000-156MI	79136	TRUARC COMPANY LLC DBA WALDES TRUARC
NAS669-156	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
ZA362-1007-P29	49956	RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-804-2769

Compare

Related Products | NSN 5325-00-804-2769

5325-00-838-4885, 5325-00-912-0468, 5325-01-015-7755, 5325-01-032-4762, 5325-01-089-4579

Technical Data | NSN 5325-00-804-2769

Characteristic	Specifications
MATERIAL	STEEL,FED STD 66 AISI 1066 OR 1069 OR 1070 OR 1072 OR 1074 OR 1075 OR 1078 OR 1080 OR 1084 OR 1086 OR 1090
SURFACE TREATMENT	CADMIUM, QQ-P-416, TYPE 2, CLASS 3
STRENGTH RATING	NOT RATED
MATERIAL HARDNESS RATING	47.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM
CASEHARDENING INDICATOR	NOT CASEHARDENED
RING STYLE	A37 INTERNAL

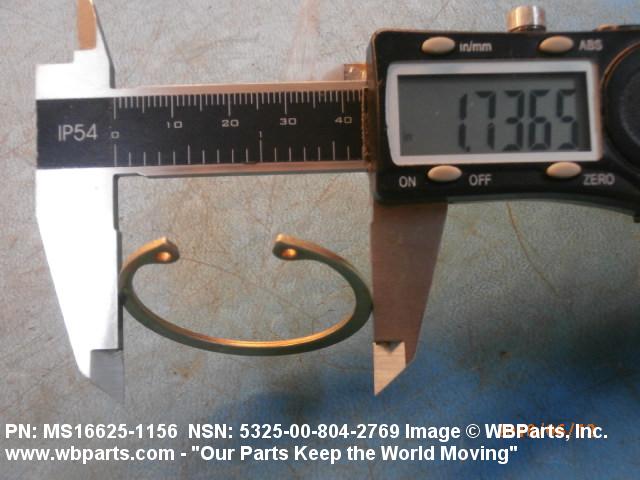

OUTSIDE DIAMETER	1.709 INCHES MINIMUM AND 1.779 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE	D4 RECTANGULAR

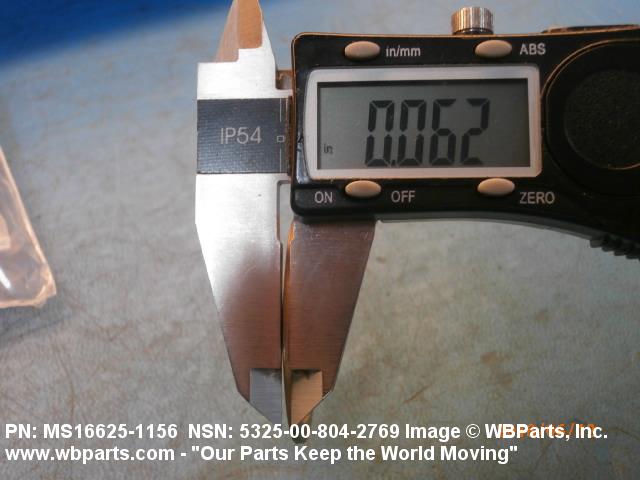

MAJOR THICKNESS	0.059 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
USAGE DESIGN	INTERNAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS16625-1156

Restrictions/Controls & Freight Information | NSN 5325-00-804-2769

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-804-2769

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
