Product Details | RETAINING RING

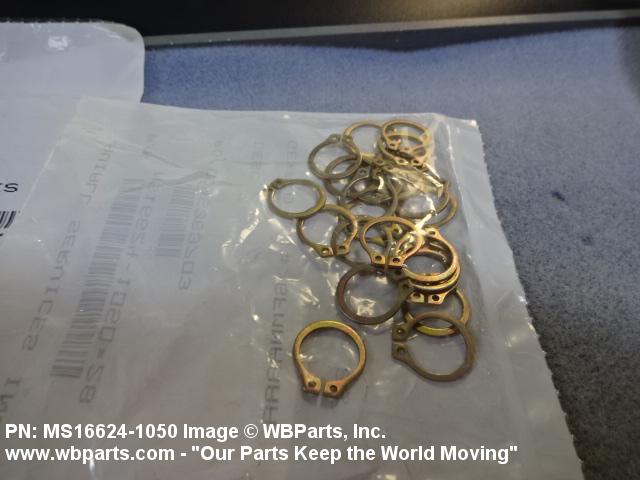

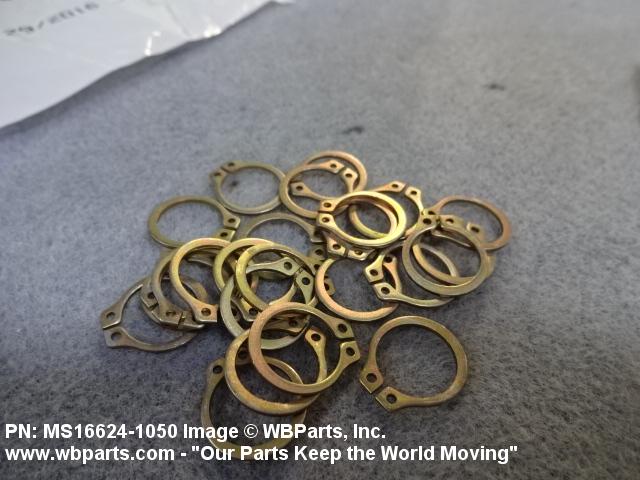

5325-00-803-7301 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MS 16624-1050, MS162241050, MS16224-1050, MS166241050, MS16624-1050, MS1662412, MS16624-12, MS1662450, MS16624-50, M166243050, M16624-3050, N510050, N-5100-50, NAS67050, NAS67-050, NI-082-602-A PI, NI082602API, A-2131 PIECE 14, A2131PIECE14, CARX5583035, CARX5-583035, CS50CD, LS1662450, LS16624-50, P18B177419, P18B1774-19, R271NAA0050NN056NNPF1, MILR21248, T-104, X141001494338PC1, X1-4100-1494338PC1, XT35984PC1, T104, 5572, 583035, 6051100221, 60-511-0022-1, 643A412PC5, 663207, 7073224, 75177A12, 91611703, 94151, 956A995P5, 10310292, 135169, 1439993, 1590714, 15907-14, 176, 1JH2412SUB1PC30, 1JH2420SUB2ITEM10, 1JH2480SUB2PC47, 1JH72SUB4PC18E, 2100935085ALT6PC11, 2100-935085ALT6PC11, 2100983082ALTBPC11, 2100-983082ALTBPC11, 2189113, 21891-13, 273418, 2734-18, 2734PC18, 303851, 310050, 3100-50, 310050STCD, 3100-50-ST-CD, 340-0006-00, 3400006000, 340-0006-000, 34209, 3621005P18, 362-1005P18, 4060001050, 4111701050, 411170-1050, 418-010-160, 43204026, 432-04-026, 501257 A470 5NR, 501257A4705NR, 510050, 5100-50, 510050MD, 5100-50MD, 510050SMD, 5100-50-S-MD, 5325-00-803-7301, 00-803-7301, 5365008037301, 5325008037301, 418010160, 340000600, 008037301

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-803-7301

Drawings & Photos | NSN 5325-00-803-7301


Demand History | NSN 5325-00-803-7301

Part Number Request Date QTY Origin
5325-00-803-7301 2023-05-138 2 US
5325-00-803-7301 2022-06-165 308 United States
5325-00-803-7301 2019-03-74 25 MANUAL
MS16624-1050 2019-03-74 25 Canada
5325-00-803-7301 2018-08-217 4546 DIBBS
5325-00-803-7301 2018-02-36 518 DIBBS
MS16624-1050 2015-07-201 1200
MS166241050 2015-07-196 115 US
5325-00-803-7301 2013-10-295 100 United States
MS16624-1050 2013-07-200 75
NAS67050 2013-07-199 3 United States
MS16624-1050 2013-04-115 20 United States
MILR21248 2013-04-112 5 MX
MS166241050 2013-03-79 12 United States
5325008037301 2012-11-311 6 Singapore
MS166241050 2012-04-100 80 United States
MS166241050 2011-11-308 300 United States
5325-00-803-7301 2011-04-108 600 DIBBS
MS166241050 2011-04-97 39 Greece
MILR21248 2011-02-47 24 us
5325-00-803-7301 2011-02-38 1 Canada
MS166241050 2010-11-327 4 United States
5325-00-803-7301 2010-05-121 715 DIBBS
5325-00-803-7301 2010-03-84 140 DIBBS
MS166241050 2010-03-82 67 Greece
5325-00-803-7301 2010-02-36 186 DIBBS
N510050 2009-11-321 29 Malaysia
5325-00-803-7301 2009-08-224 84 DIBBS
MS166241050 2009-07-196 47 Greece
5325-00-803-7301 2009-02-56 209 DIBBS
5325-00-803-7301 2009-01-14 54 DIBBS
MS166241050 2008-12-353 50 Malaysia
MS166241050 2008-12-340 50 Philippines
MS166241050 2008-10-290 800 US
MS166241050 2008-10-284 800 Turkey

Cross Reference | NSN 5325-00-803-7301

Part Number Cage Code Manufacturer
135169 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1439993 79500 WESTINGHOUSE ELECTRIC CORP
15907-14 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
176 76399 MEMOVOX INC
1JH2412SUB1PC30 79500 WESTINGHOUSE ELECTRIC CORP
1JH2420SUB2ITEM10 79500 WESTINGHOUSE ELECTRIC CORP
1JH2480SUB2PC47 79500 WESTINGHOUSE ELECTRIC CORP
1JH72SUB4PC18E 79500 WESTINGHOUSE ELECTRIC CORP
2100-935085ALT6PC11 80064 NAVAL SHIP SYSTEMS COMMAND
2100-983082ALTBPC11 80064 NAVAL SHIP SYSTEMS COMMAND
21891-13 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2734-18 01359 FAIRCHILD CONTROLS CORPORATION
2734PC18 01359 FAIRCHILD CONTROLS CORPORATION
303851 H0G87 WIBA ZEVENAAR B.V.
3100-50 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
3100-50-ST-CD 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
3100-50-ST-CD 97464 TRUARC CO LLC
340-0006-00 95105 ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
340-0006-000 13499 ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
34209 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
362-1005P18 49956 RAYTHEON COMPANY DBA RAYTHEON
4060001050 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
411170-1050 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418-010-160 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
432-04-026 01205 LOGETRONICS CORPORATION
501257 A470 5NR 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
5100-50 27235 HARDIE-TYNES CO., INC.
5100-50 82340 EDO CORPORATION DIV DEFENSE SYSTEMS
5100-50 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5100-50-S-MD 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
5100-50-S-MD 97464 TRUARC CO LLC
5100-50MD 07382 ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
5100-50MD 79136 TRUARC COMPANY LLC DBA WALDES TRUARC
5365008037301 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5572 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
583035 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
60-511-0022-1 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
643A412PC5 01289 GENERAL ELECTRIC COMPANY DBA GE DIV GE-AVIATION GEAR PLANT
663207 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7073224 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
75177A12 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
91611703 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
94151 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
956A995P5 07639 GE AVIATION SYSTEMS LLC DBA GE AVIATION
956A995P5 24446 GENERAL ELECTRIC CO
956A995P5 30221 GENERAL ELECTRIC CO ARMAMENT AND ELECTRICAL SYSTEMS DEPT
A-2131 PIECE 14 71871 ALFA LAVAL INC.
CARX5-583035 97403 CECOM LR CENTER
CS50CD D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
LS16624-50 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
M16624-3050 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MILR21248 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS 16624-1050 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS16224-1050 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS16624-1050 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16624-12 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16624-50 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
N-5100-50 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS67-050 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NI-082-602-A PI 05805 REXNORD INDUSTRIES, LLC DBA STEARNS DIV
P18B1774-19 83843 SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV
P18B1774-19 99167 HAMILTON SUNDSTRAND CORPORATION
R271NAA0050NN056NNPF1 05047 AMERICAN SOCIETY OF MECHANICAL ENGINEERS
T-104 74410 HOLLAND USA INC
X1-4100-1494338PC1 80064 NAVAL SHIP SYSTEMS COMMAND
XT35984PC1 01359 FAIRCHILD CONTROLS CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-803-7301

Technical Data | NSN 5325-00-803-7301

Characteristic Specifications
MATERIAL STEEL,FED STD 66 AISI 1066 OR 1069 OR 1070 OR 1072 OR 1074 OR 1075 OR 1078 OR 1080 OR 1084 OR 1086 OR 1090
SURFACE TREATMENT CADMIUM, QQ-P-416, TYPE 2, CLASS 3 OR ZINC PLATED,MIL-C-81562,TY 2 CL 3
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING 66.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 71.0 ROCKWELL SUPERFICIAL 30-N MAXIMUM
CASEHARDENING INDICATOR NOT CASEHARDENED
RING STYLE A41 EXTERNAL

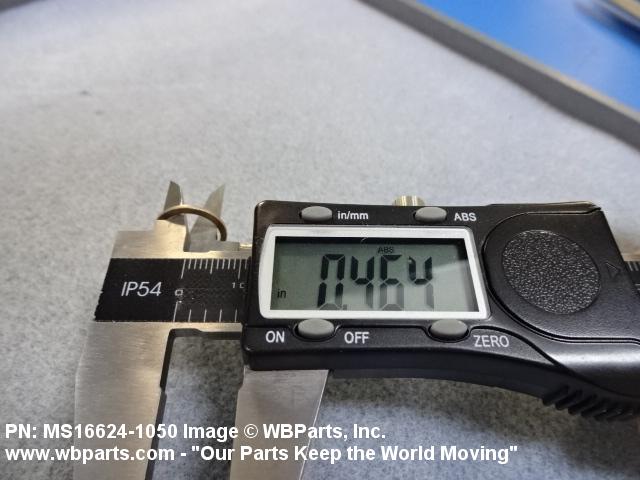

INSIDE DIAMETER 0.456 INCHES MINIMUM AND 0.463 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE D4 RECTANGULAR

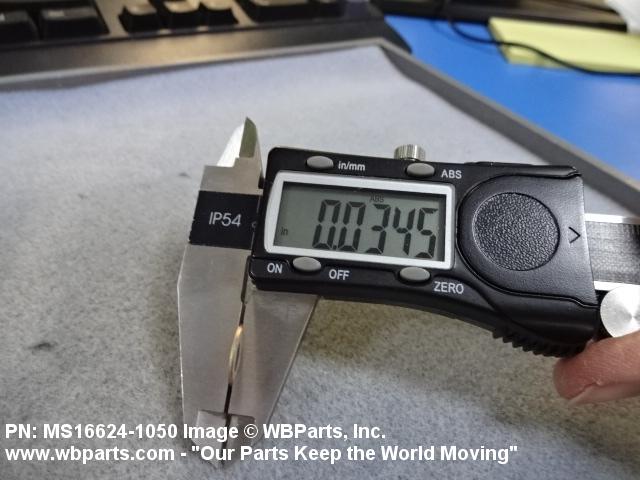

MAJOR THICKNESS 0.033 INCHES MINIMUM AND 0.037 INCHES MAXIMUM
USAGE DESIGN EXTERNAL
III END ITEM IDENTIFICATION W/S: AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); SUPPORT EQUIPMENT, B-1 AIRCRAFT, ELEVATORS, AIRCRAFT; BOILERS, 1200 PSI; STREAM (STD. TENSIONED REPLENSIHMENT AT SEA METHOD); ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); FIRE PUMS; GUIDED MISSILE LAUNCHING SYSTEM, MK 26 (GMLS); GUN, 5-IN./54 CAL, MK-42 & 45
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILR21248
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS16624-1050
