NSN 5325-00-803-5773 BACS21X8C, 40028S, 4002-8S

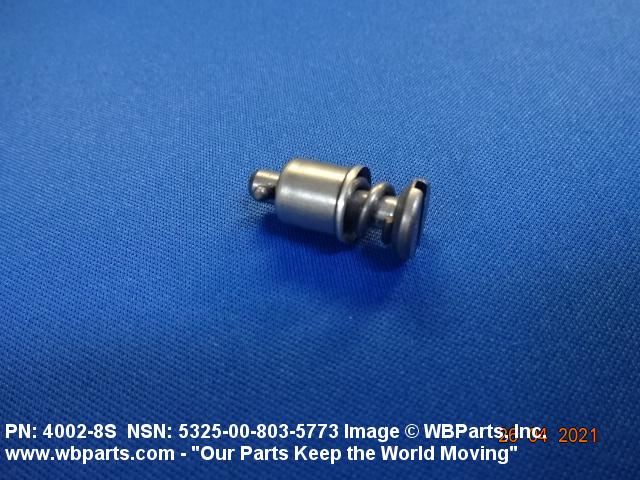

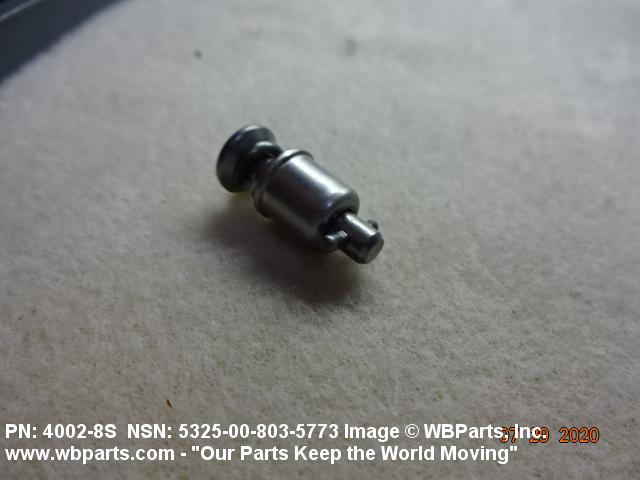

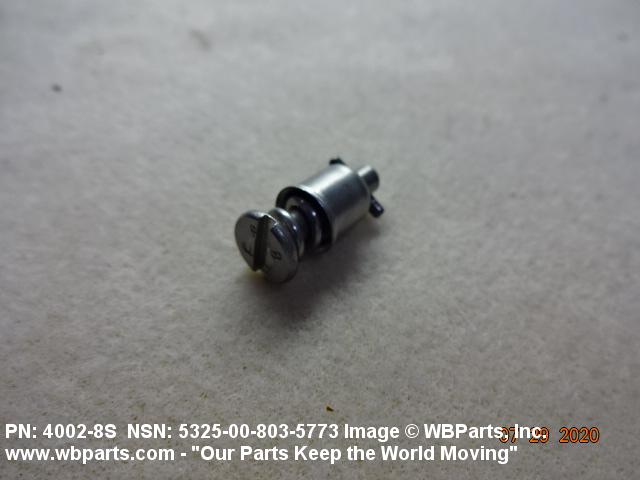

Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-803-5773 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21X8C, 40028S, 4002-8S, 4002-8-S, 5000018104, 50000181-04, 8527629, 5325-00-803-5773, 00-803-5773, 5325008035773, 008035773
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-803-5773 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

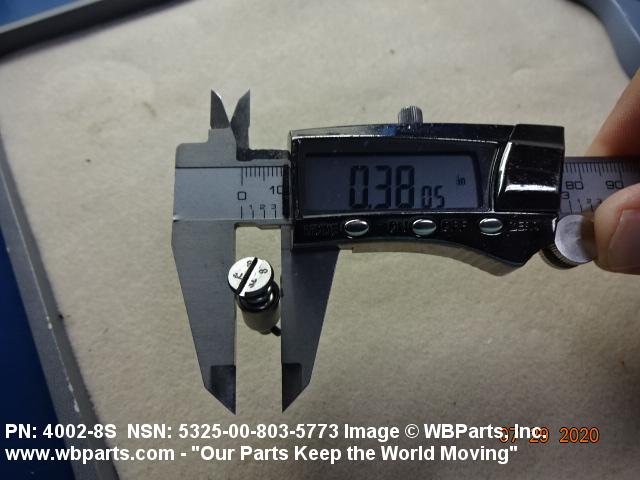

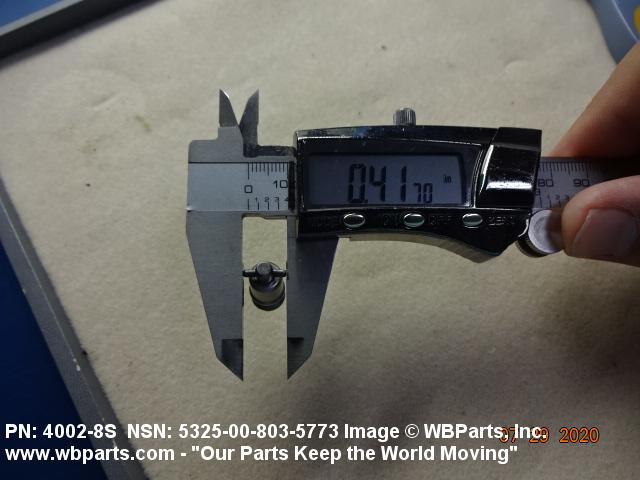

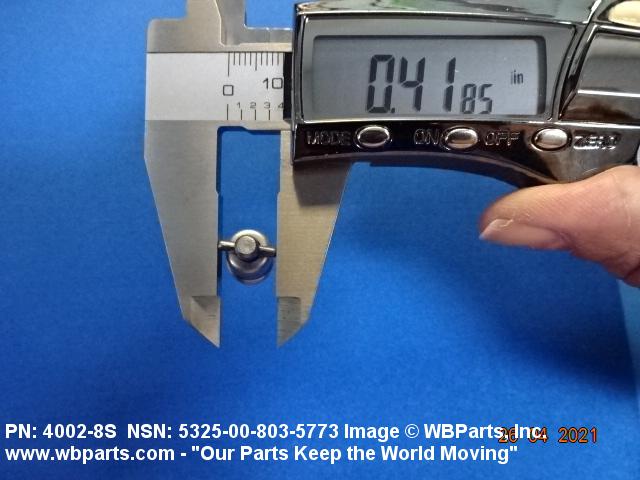

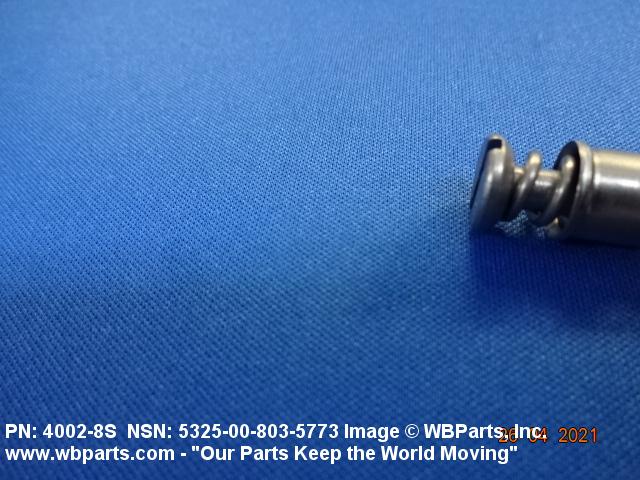

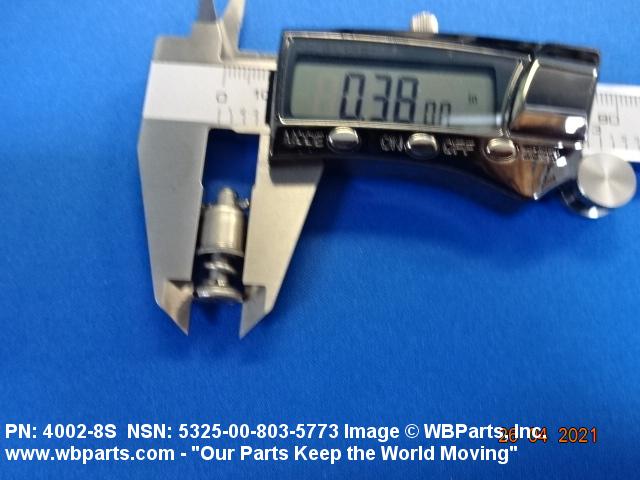

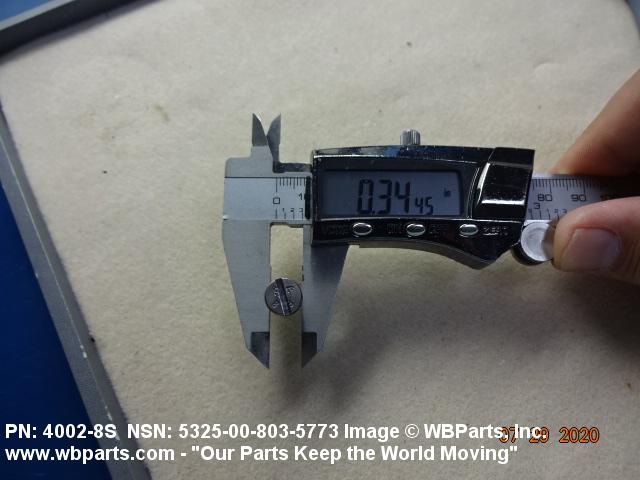

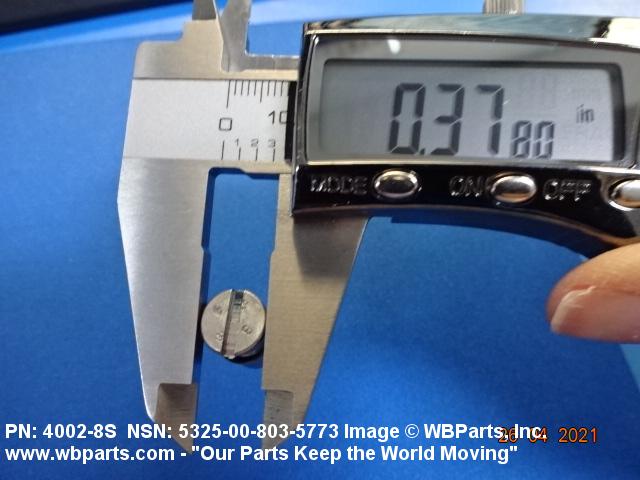

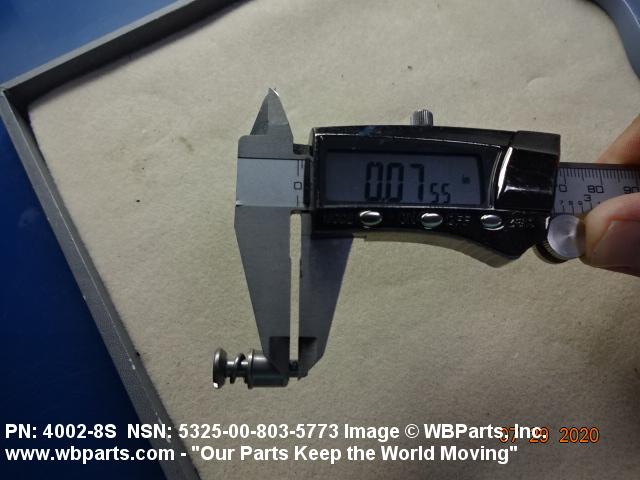

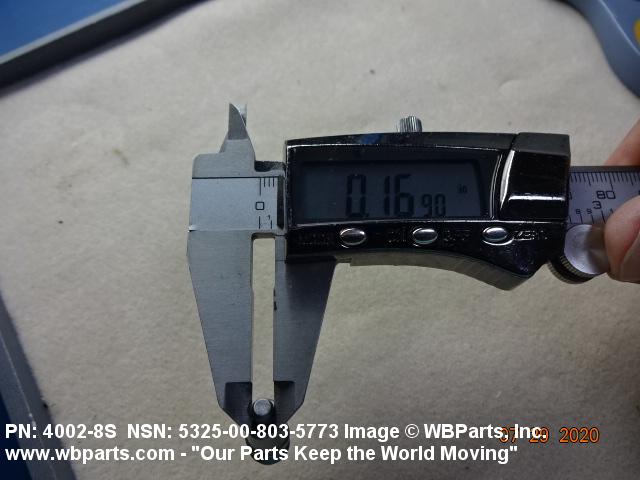

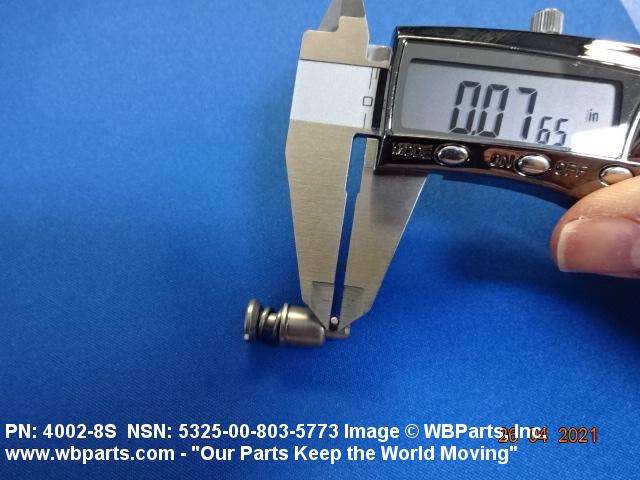

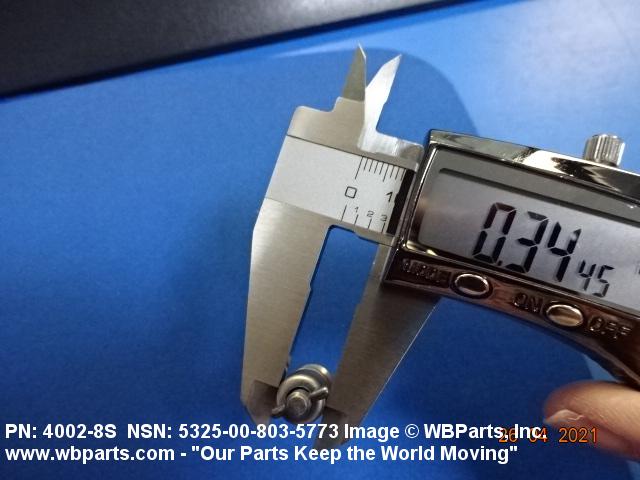

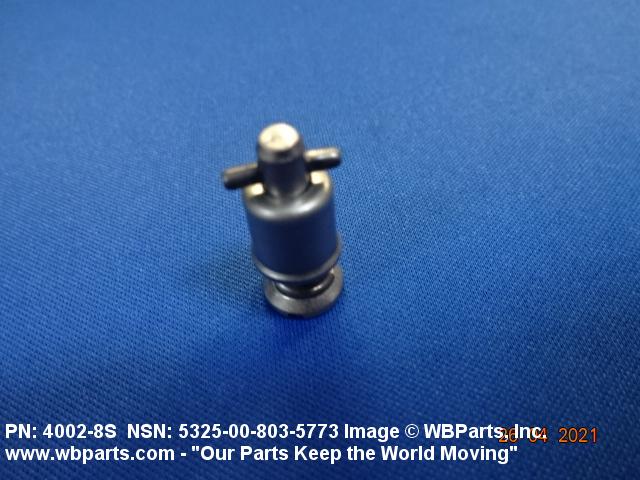

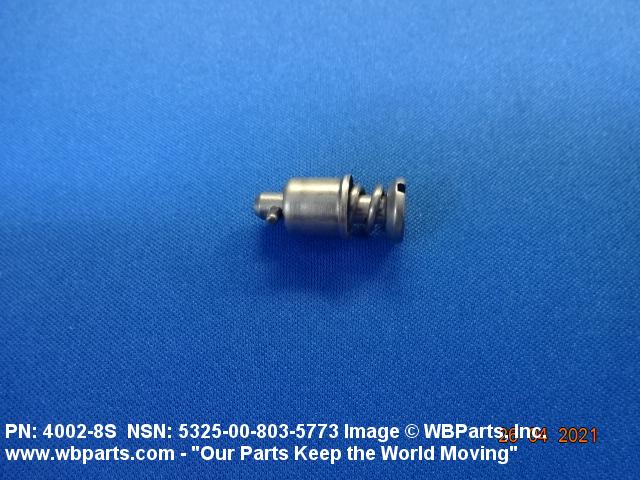

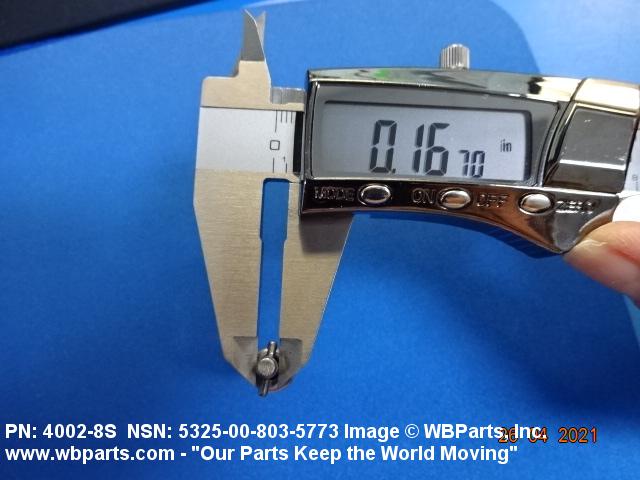

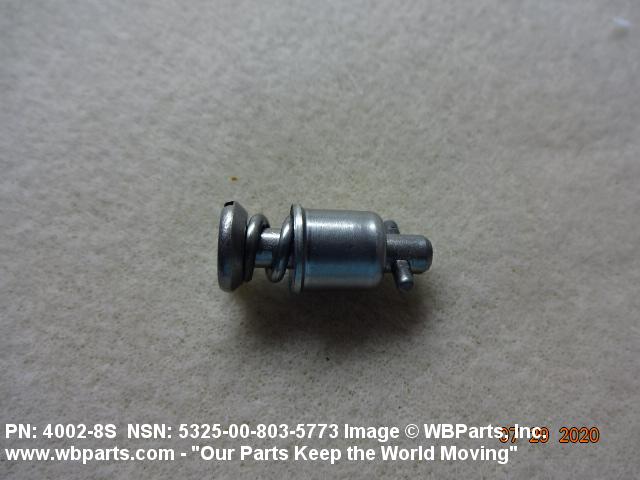

Drawings & Photos | NSN 5325-00-803-5773
Demand History | NSN 5325-00-803-5773
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4002-8S | 2024-06-168 | 38 | DIBBS |
| 4002-8S | 2024-05-129 | 221 | DIBBS |
| 4002-8S | 2024-04-114 | 221 | DIBBS |
| 40028S | 2023-07-202 | 10 | TR |
| 4002-8S | 2023-06-170 | 163 | DIBBS |
| 4002-8S | 2023-03-80 | 95 | DIBBS |
| 40028S | 2020-07-207 | 31 | US |
| BACS21X8C | 2020-03-79 | 1 | Indonesia |
| 5325-00-803-5773 | 2019-11-326 | 400 | United States |
| 5325-00-803-5773 | 2019-11-326 | 720 | United States |
| 5325-00-803-5773 | 2019-11-323 | 400 | United States |
| 5325-00-803-5773 | 2019-01-07 | 16 | United States |
| BACS21X8C | 2018-12-362 | 200 | us |
| 5325-00-803-5773 | 2018-12-346 | 144 | United States |
| BACS21X8C | 2010-03-81 | 40 | US |
| BACS21X8C | 2010-03-79 | 40 | US |
| 5325-00-803-5773 | 2009-09-265 | 180 | South Korea |
| 40028S | 2007-11-323 | 2000 | US |
Cross Reference | NSN 5325-00-803-5773
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4002-8-S | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 4002-8S | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 4002-8S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 4002-8S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 50000181-04 | N0013 | KONGSBERG DEFENCE & AEROSPACE AS |
| 8527629 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| BACS21X8C | 77272 | THE BOEING COMPANY DBA BOEING |
