NSN 5325-00-801-2500 MS166251112, MS16625-1112, MS16625112
Product Details | RETAINING RING
5325-00-801-2500 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166251112, MS16625-1112, MS16625112, MS16625-112, N5000112, N5000-112, N5000112MD, N5000-112MD, N5000112SMD, N5000-112-S-MD, T23694, 0580P21, 190231, 212798, 24-24 080119CA-PHOS , 2424080119CAPHOS, 24LHBUS, 24LHBU-S , 2K49, 5S1522, 75144A21, 7595735, 816, 8368, 83-68, 9987961PC110, 9987-961PC110, 5325-00-801-2500, 00-801-2500, 5325008012500, 008012500
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-801-2500 | 07623 ( RING, RETAINING ) |

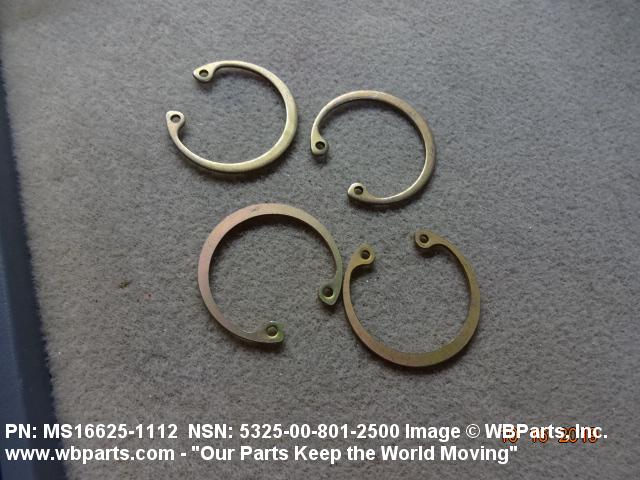

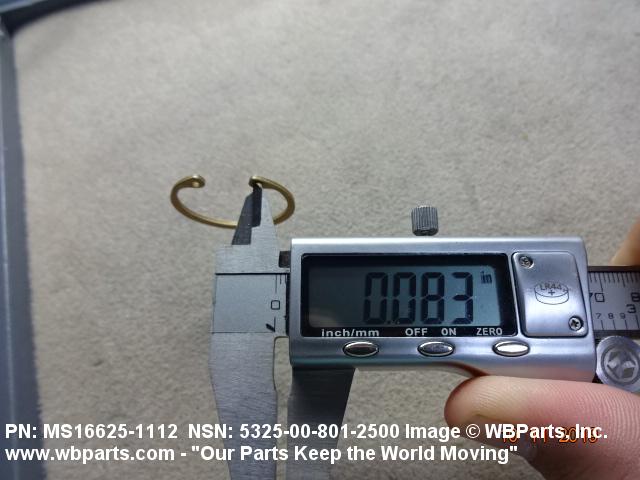

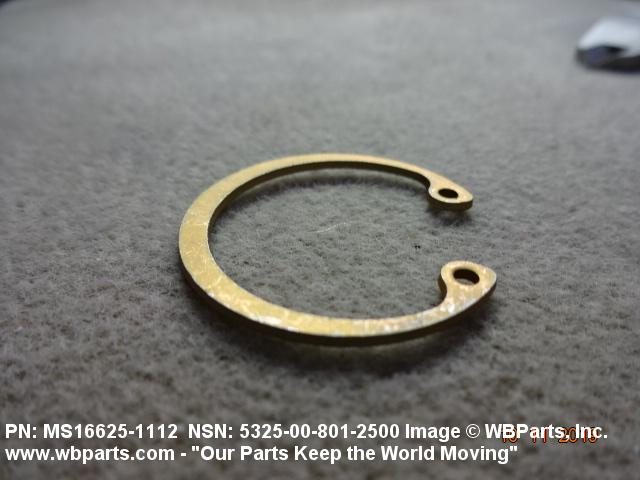

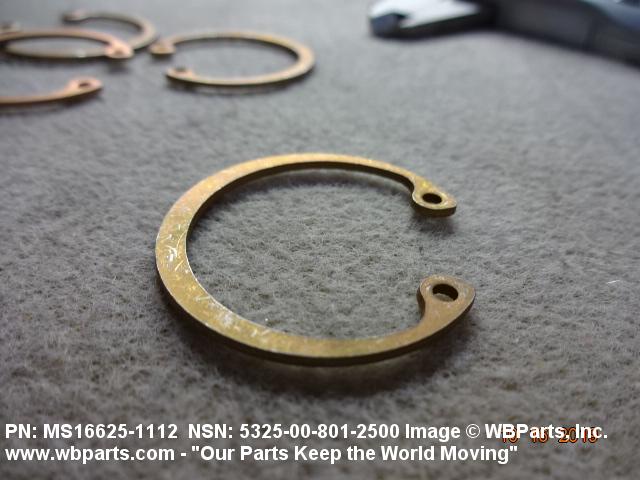

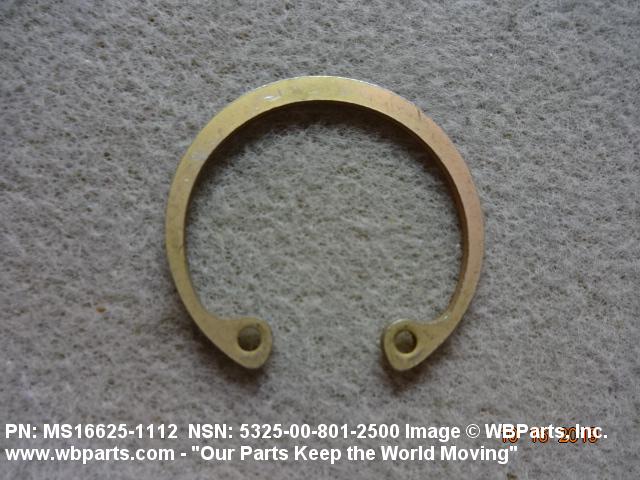

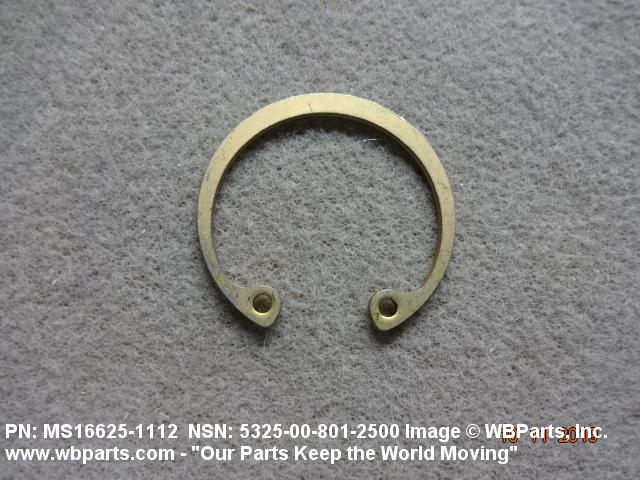

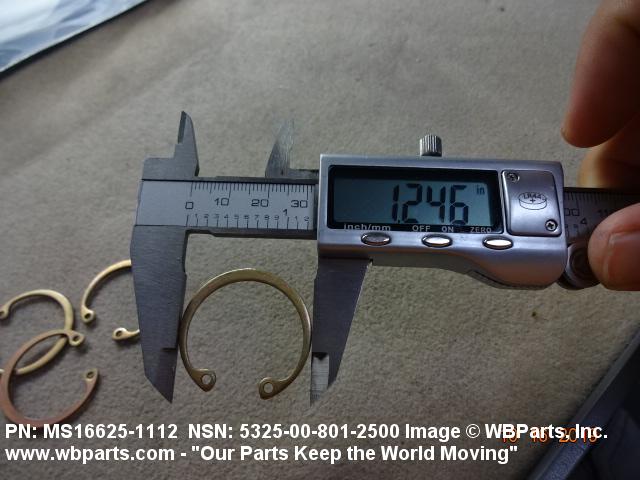

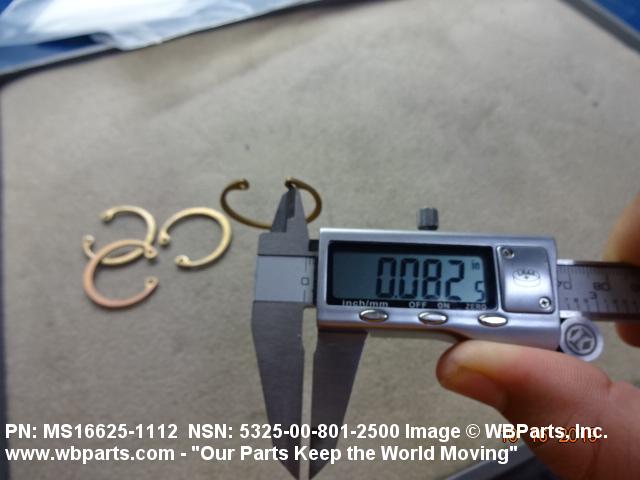

Drawings & Photos | NSN 5325-00-801-2500
Demand History | NSN 5325-00-801-2500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-801-2500 | 2019-08-220 | 1069 | United States |
| 5325-00-801-2500 | 2017-11-311 | 3334 | DIBBS |
| MS166251112 | 2017-11-307 | 3 | UK |
| 5325-00-801-2500 | 2012-01-12 | 4741 | DIBBS |
| MS16625112 | 2010-09-253 | 275 | US |
| 5325-00-801-2500 | 2010-04-93 | 4218 | DIBBS |
| 5325-00-801-2500 | 2010-03-71 | 24 | United States |
| 5325-00-801-2500 | 2009-11-320 | 2534 | DIBBS |
| N5000112 | 2008-05-148 | 1 | Canada |
| MS166251112 | 2007-08-215 | 5 | Turkey |
Cross Reference | NSN 5325-00-801-2500
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0580P21 | 10119 | HARTFORD COMPRESSORS INC DBA FOREIGN PARENT IS DUNHAM-BUSH |
| 190231 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 212798 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 212798 | 16004 | DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC |
| 212798 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S |
| 2K49 | 20049 | THE ELECTRIC TACHOMETER CORP. |
| 5365008012500 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5S1522 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 75144A21 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 7595735 | 19200 | US ARMY ARDEC RDECOM |
| 816 | 32042 | MICROPUMP CORP |
| 83-68 | 04320 | CURTISS-WRIGHT CONTROLS INTEGRATED SENSING, INC. |
| 9987-961PC110 | 31361 | WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP |
| MS16625-1112 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16625-112 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N5000-112 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N5000-112-S-MD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-112MD | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| T23694 | 75160 | DEERE & CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-801-2500
Technical Data | NSN 5325-00-801-2500
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, COMP 1066 OR STEEL, FED STD 66, COMP 1069 OR STEEL, FED STD 66, COMP 1070 OR STEEL, FED STD 66, COMP 1072 OR STEEL, FED STD 66, COMP 1074 OR STEEL, FED STD 66, COMP 1075 OR STEEL, FED STD 66, COMP 1078 OR STEEL, FED STD 66, COMP 1080 OR STEEL, FED STD 66, COMP 1084 OR STEEL, FED STD 66, COMP 1085 OR STEEL, FED STD 66, COMP 1086 OR STEEL, FED STD 66, COMP 1090 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 47.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A37 INTERNAL |

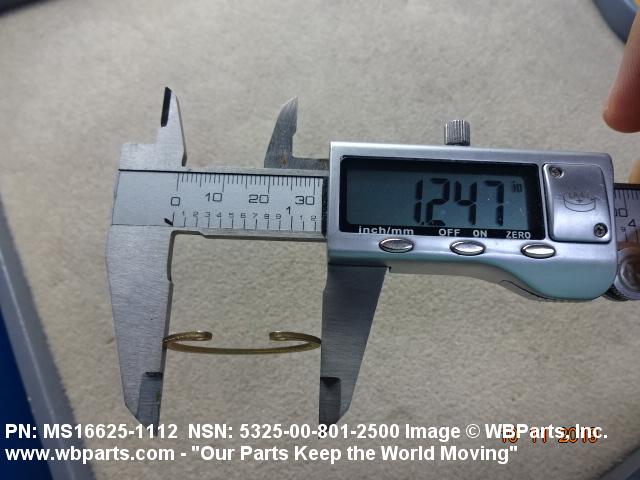

| OUTSIDE DIAMETER | 1.229 INCHES MINIMUM AND 1.274 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |

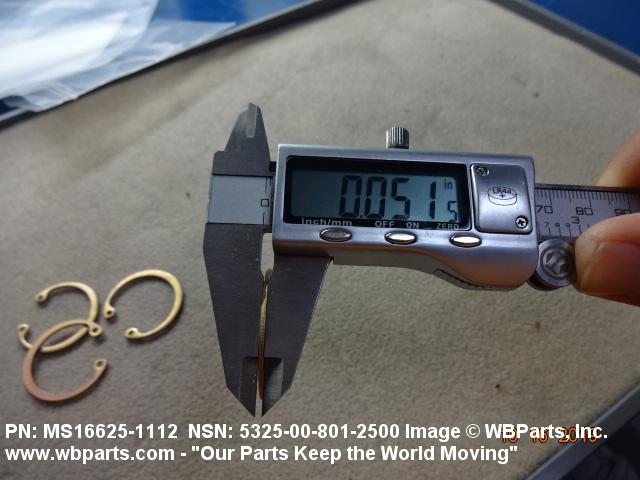

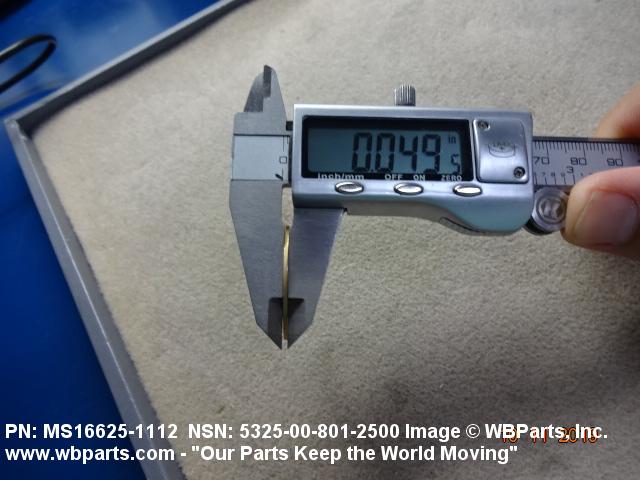

| MAJOR THICKNESS | 0.048 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16625-1112 |
Restrictions/Controls & Freight Information | NSN 5325-00-801-2500
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5325-00-801-2500
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
