NSN 5325-00-797-3002 BACS21Y1R, HK26BC1, HK26BC-1

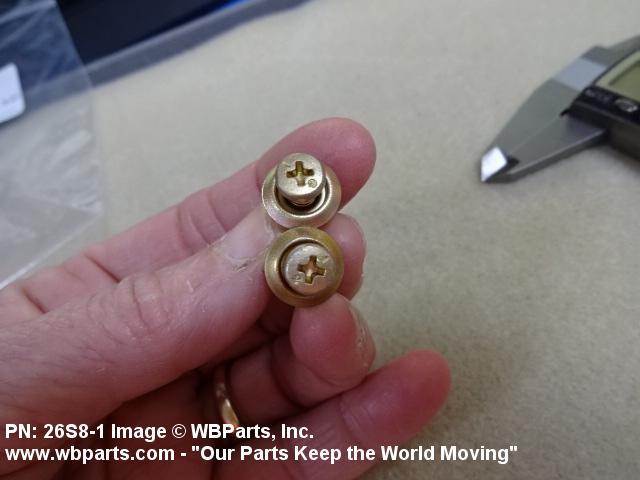

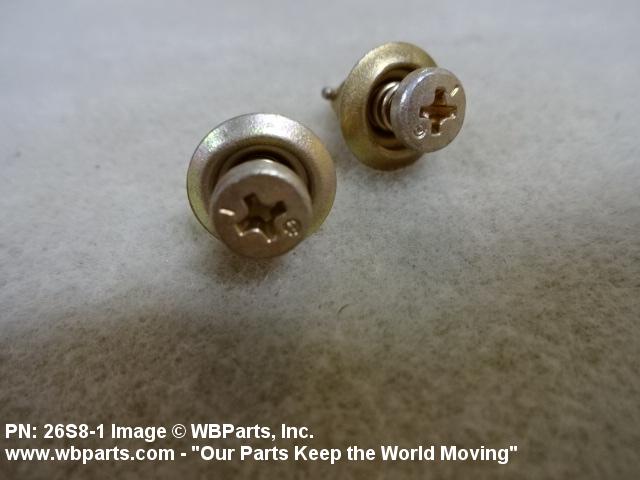

Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-797-3002 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21Y1R, HK26BC1, HK26BC-1, 10331375, 10331395, 11260041, 1126004-1, 26S81, 26S8-1, 26S81AC, 26S8-1AC, 3D00631AC, 3D0063-1AC, 5325-00-797-3002, 00-797-3002, 5325007973002, 007973002
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-797-3002 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-797-3002
Demand History | NSN 5325-00-797-3002
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26S81 | 2024-10-275 | 20 | us |
| 26S81 | 2024-10-275 | 100 | us |
| 1126004-1 | 2021-04-109 | 1488 | DIBBS |
| 26S8-1 | 2021-04-109 | 1488 | DIBBS |
| HK26BC-1 | 2021-04-109 | 1488 | DIBBS |
| 26S81 | 2020-03-91 | 2500 | United States |
| 1126004-1 | 2019-04-115 | 994 | DIBBS |
| 26S8-1 | 2019-04-115 | 994 | DIBBS |
| HK26BC-1 | 2019-04-115 | 994 | DIBBS |
| 5325-00-797-3002 | 2018-10-296 | 994 | DIBBS |
| 5325-00-797-3002 | 2016-12-336 | 1348 | DIBBS |
| 5325-00-797-3002 | 2016-11-327 | 1 | DIBBS-RFPs |
| BACS21Y1R | 2011-07-195 | 15 | United States |
| 5325-00-797-3002 | 2011-03-73 | 2297 | DIBBS |
| 5325-00-797-3002 | 2009-11-306 | 1741 | DIBBS |
| 5325-00-797-3002 | 2008-04-94 | 25 | US |
Cross Reference | NSN 5325-00-797-3002
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10331375 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10331395 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1126004-1 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 26S8-1 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 26S8-1 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 26S8-1AC | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3D0063-1AC | 88277 | BOEING COMPANY, THE DBA BOEING |
| BACS21Y1R | 81205 | THE BOEING COMPANY DBA BOEING |
| HK26BC-1 | 69370 | HO-HO-KUS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-797-3002
Related Products | NSN 5325-00-797-3002
Technical Data | NSN 5325-00-797-3002
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |

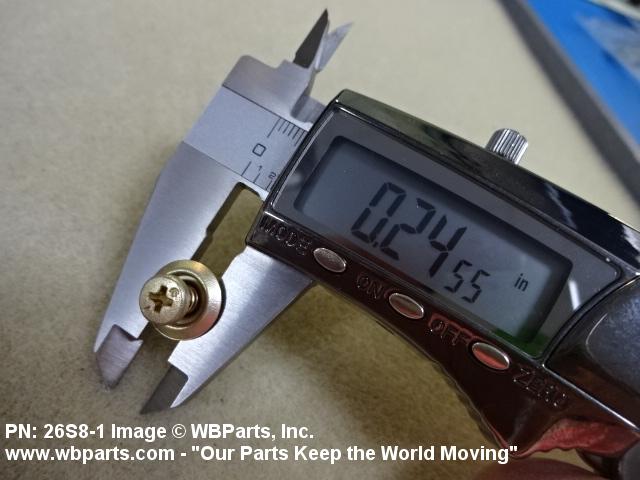

| DIAMETER | 0.251 INCHES MINIMUM AND 0.256 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.069 INCHES MINIMUM AND 0.076 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |

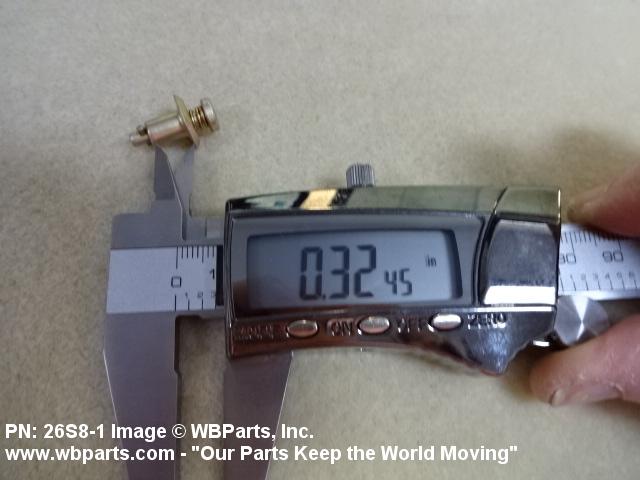

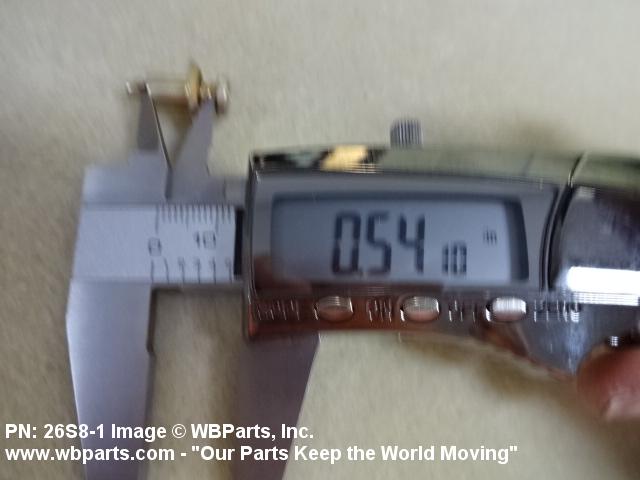

| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.542 INCHES MINIMUM AND 0.557 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.030 INCHES MINIMUM AND 0.419 INCHES MAXIMUM |
