NSN 5325-00-783-4754 MS212665, MS21266-5, MS212665N

Product Details | NONMETALLIC GROMMET

5325-00-783-4754 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.

Part Alternates: MS212665, MS21266-5, MS212665N, MS21266-5N, NASM21266, NMCG51HE, NMC-G51HE, BACG20ZE185, G51HE, G51H-E 4.712IN, G51HE4712IN, P50991, P5099-1, 10050589, 10105897, 122NN5500, 122-NN-5500, 38X002P005, 45P10431, 45P104-31, 45P10443, 45P104-43, 45P10462, 45P104-62, 45P1047, 45P104-7, 51HE, 71489938, 714899-38, 7345504P163, 795841, 79584-1, 90571305, 905713-05, 9M1931, 9M193-1, 9M1935, 9M193-5, 5325-00-783-4754, 00-783-4754, 5325007834754, 007834754

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-783-4754	33729 ( GROMMET, NONMETALLIC )

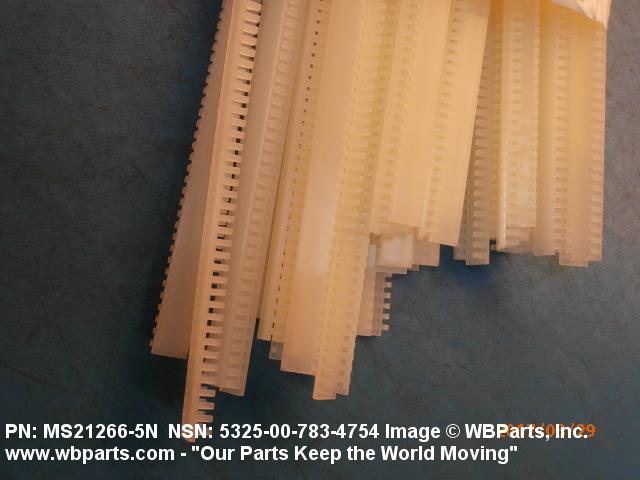

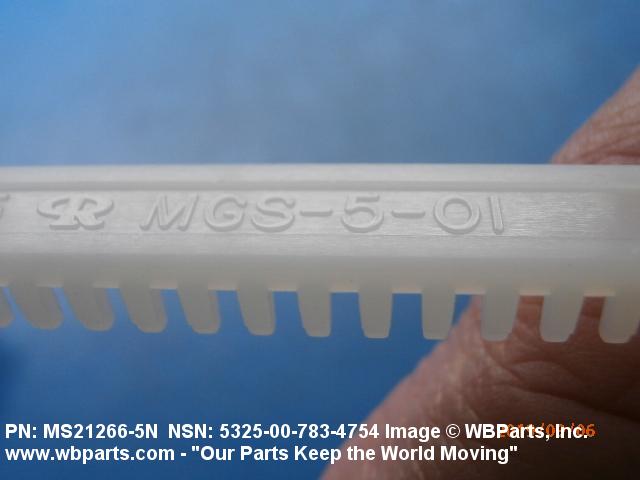

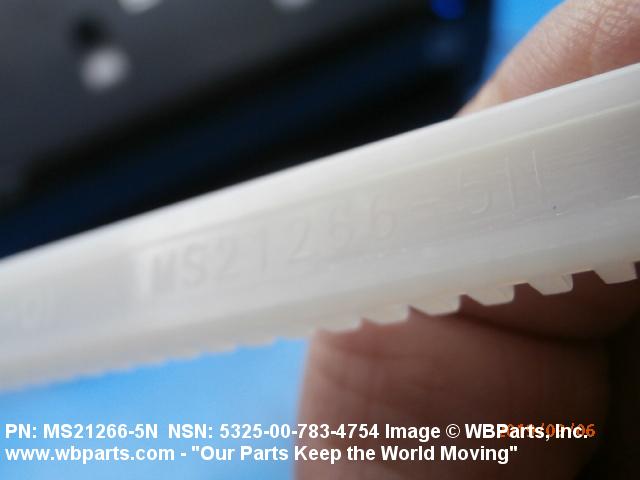

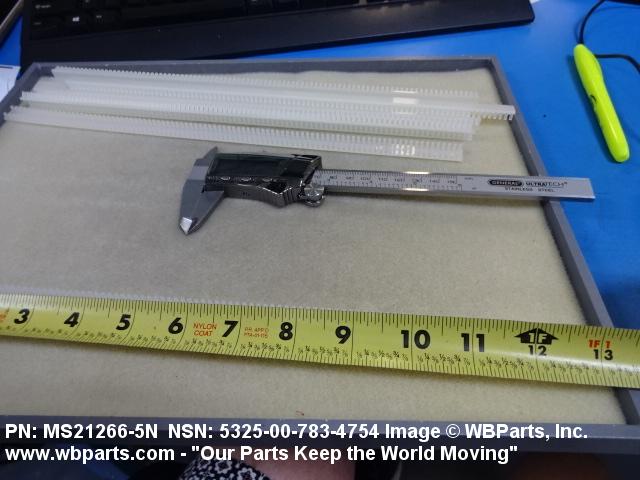

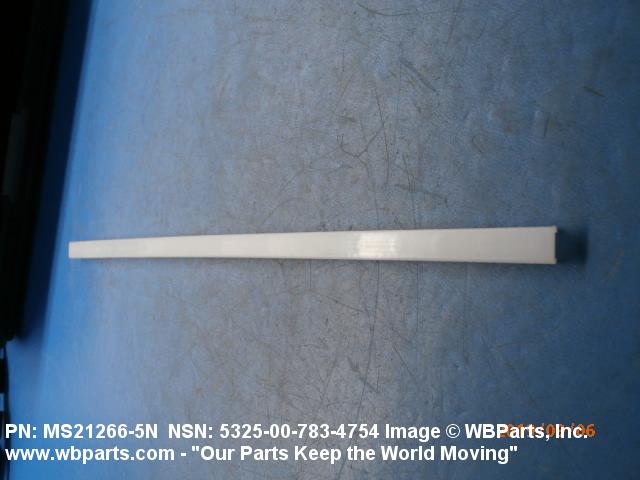

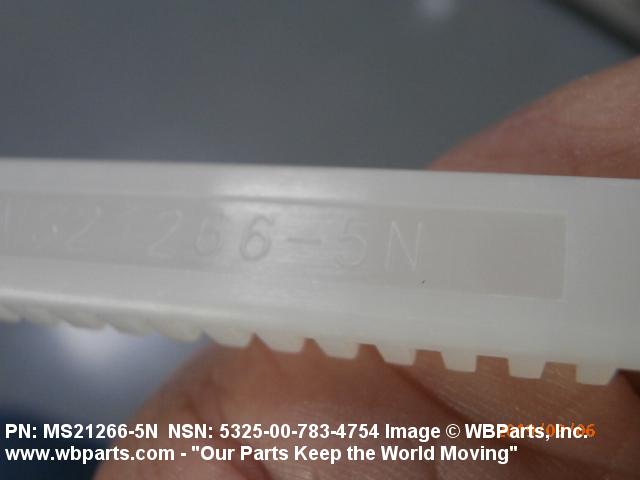

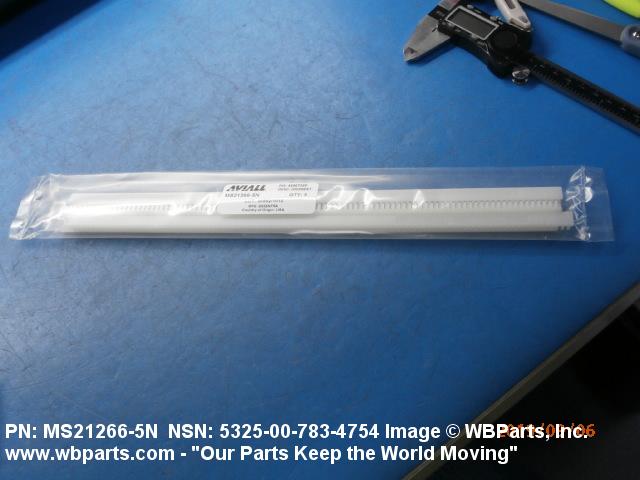

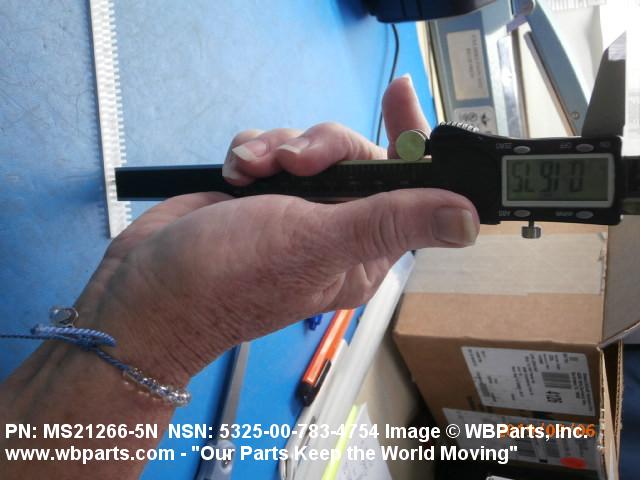

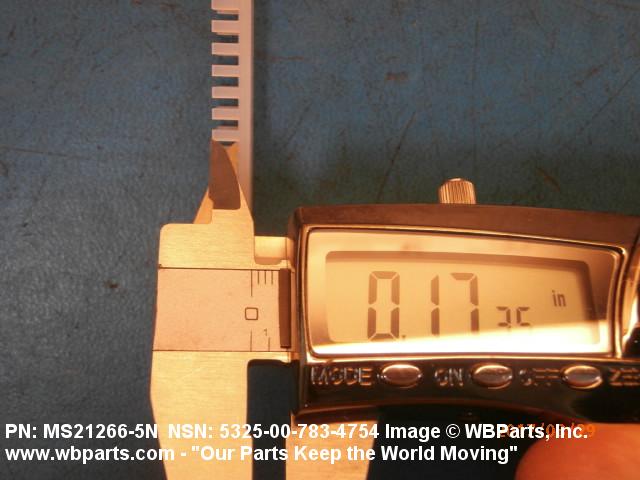

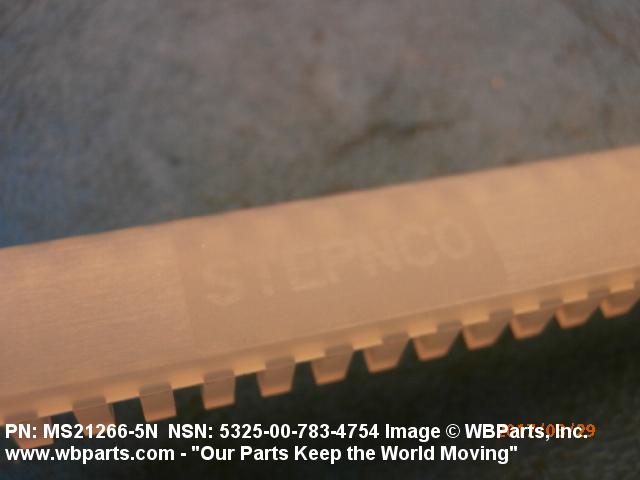

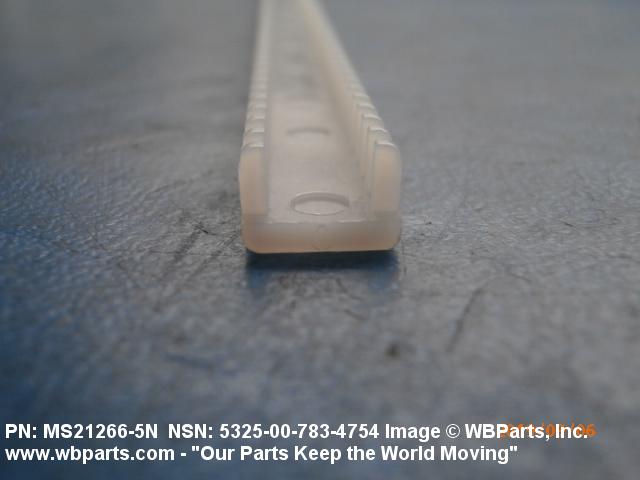

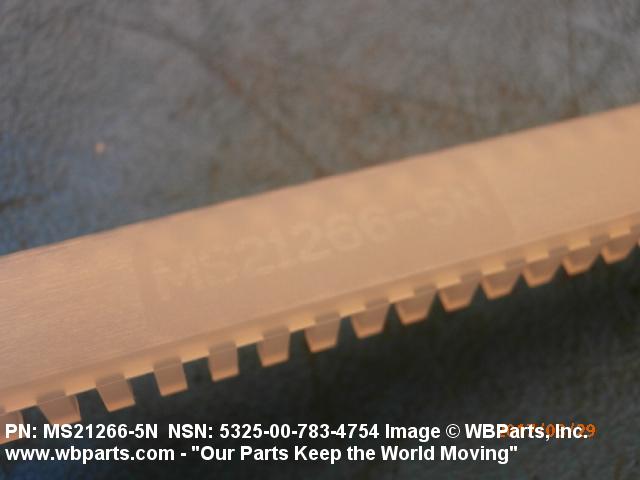

Drawings & Photos | NSN 5325-00-783-4754

Part Number	Request Date	QTY	Origin
5325-00-783-4754	2024-09-260	442	DIBBS
NASM21266	2021-07-182	170	India
5325-00-783-4754	2019-08-218	108	United States
MS212665N	2018-07-212	100	United States
MS212665N	2017-11-314	5	United States
MS212665N	2017-06-158	100	US
MS212665N	2017-06-158	500	US
5325-00-783-4754	2017-03-79	2	Canada
MS212665	2016-07-209	3	United States
MS21266-5N	2016-06-173	100
MS21266-5N	2016-04-110	50	US
MS212665N	2015-04-98	100	United States
45P104-7	2015-03-61	2	US
MS212665N	2015-01-28	5	United States
5325-00-783-4754	2014-04-107	2	NL
MS212665N	2012-08-242	5000	US
MS212665N	2012-06-159	460	US
MS212665N	2012-02-54	2000	US
9M1931	2011-11-327	1	US
MS212665N	2011-10-301	20	US
MS212665N	2011-01-31	30	US
MS212665N	2011-01-12	9	US
MS212665N	2010-12-356	1	Italy
MS212665N	2010-10-299	170	US
MS212665N	2010-02-46	1460	US

Cross Reference | NSN 5325-00-783-4754

Part Number	Cage Code	Manufacturer
10050589	18876	U S ARMY AVIATION AND MISSILE COMMAND
122-NN-5500	11897	PLASTIGLIDE MFG CORP
45P104-31	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
45P104-43	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
45P104-62	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
45P104-7	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
51HE	03296	NMC GROUP, INC.
714899-38	05869	RAYTHEON COMPANY DBA RAYTHEON
7345504P163	03538	LOCKHEED MARTIN CORPORATION DIV MST
79584-1	82340	EDO CORPORATION DIV DEFENSE SYSTEMS
905713-05	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
9M193-1	76301	BOEING COMPANY, THE DBA BOEING
9M193-5	76301	BOEING COMPANY, THE DBA BOEING
BACG20ZE185	81205	THE BOEING COMPANY DBA BOEING
G51H-E 4.712IN	03296	NMC GROUP, INC.
G51HE	03296	NMC GROUP, INC.
MS21266-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21266-5N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21266-5N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21266-5N	K0720	HELLERMANNTYTON LIMITED
MS21266-5N	K1793	HELLERMANNTYTON LTD
NASM21266	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NMC-G51HE	03296	NMC GROUP, INC.
P5099-1	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-783-4754

Compare

Related Products | NSN 5325-00-783-4754

5325-00-786-1555, 5325-00-814-7930, 5325-00-820-9712, 5325-00-911-0366, 5325-00-941-0110

Technical Data | NSN 5325-00-783-4754

Characteristic	Specifications
MATERIAL	PLASTIC POLYAMIDE OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-20693 TYPE 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
COLOR	ANY ACCEPTABLE OVERALL
GROMMET STYLE	60 EDGING
GROOVE DEPTH	0.170 INCHES NOMINAL

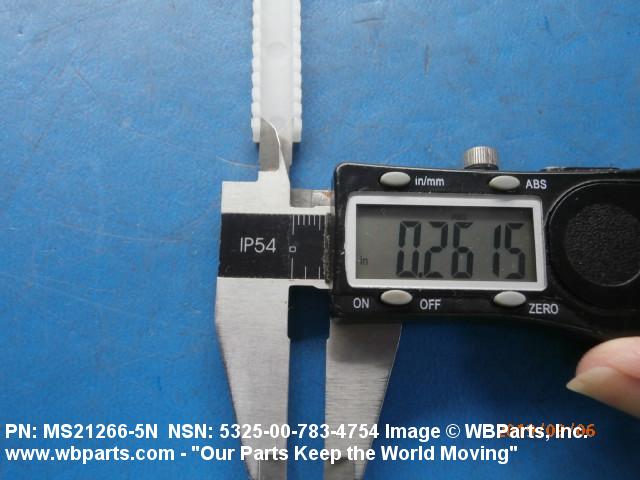

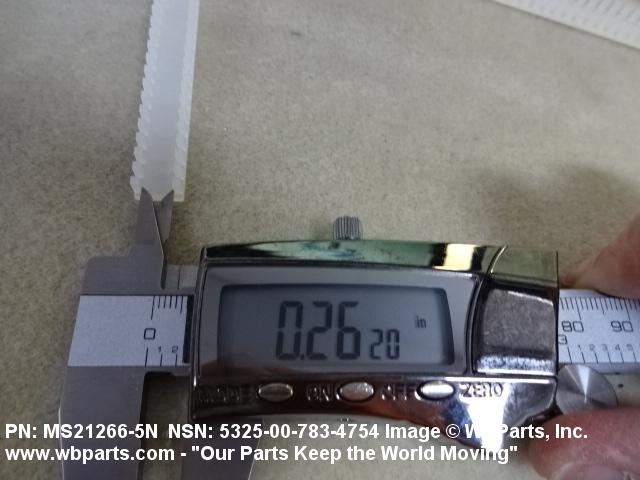

GROOVE WIDTH	0.260 INCHES NOMINAL

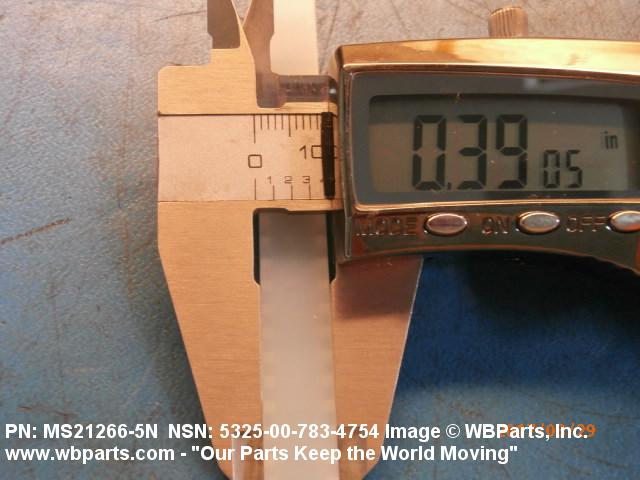

OVERALL HEIGHT	0.385 INCHES NOMINAL

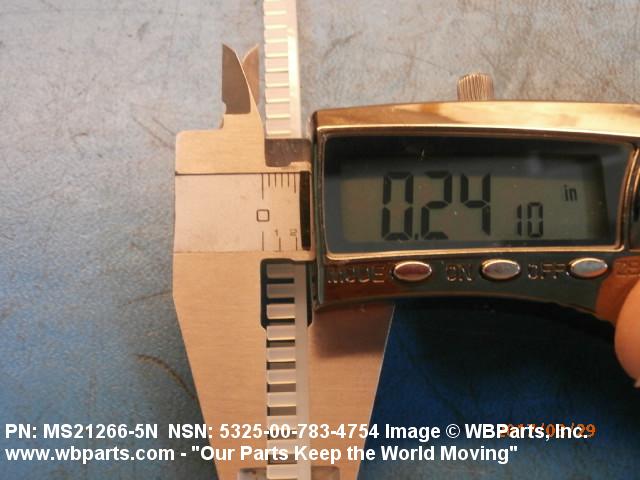

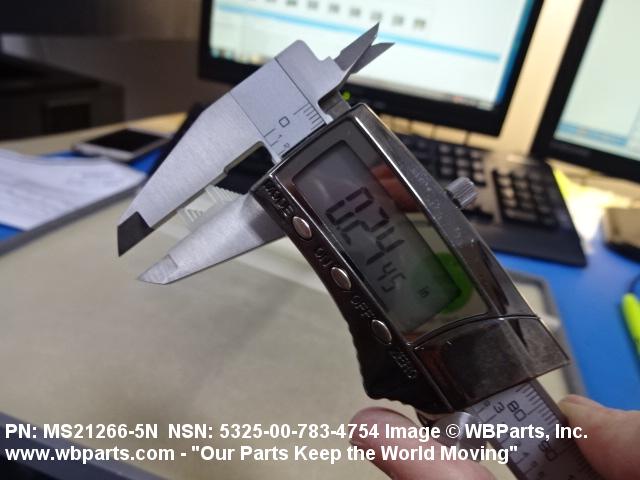

OVERALL WIDTH	0.240 INCHES NOMINAL

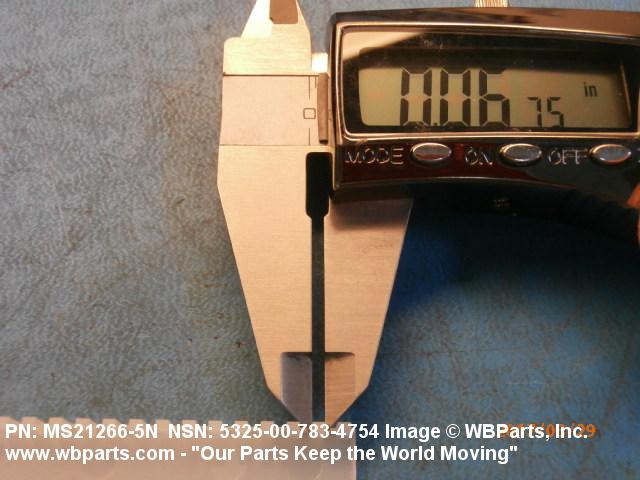

TAB WIDTH	0.067 INCHES NOMINAL
WIDTH BETWEEN TABS	0.067 INCHES NOMINAL

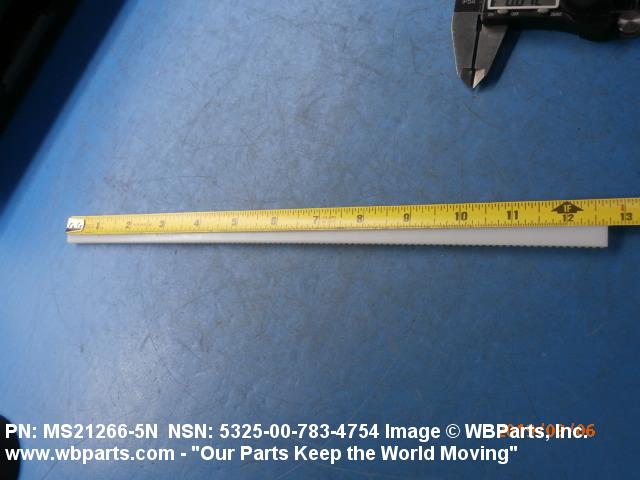

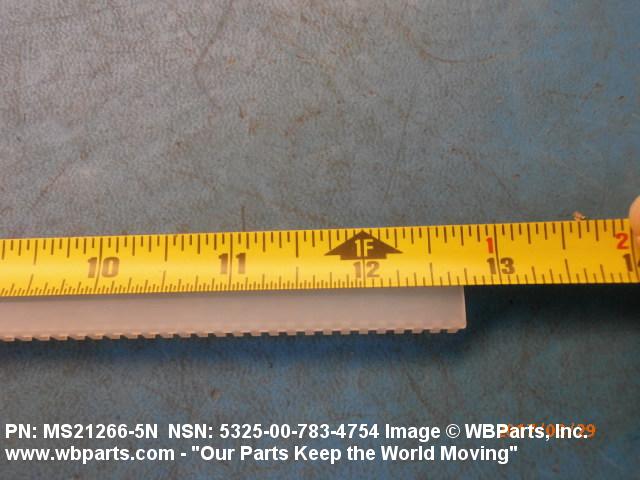

GROMMET OVERALL LENGTH	12.750 INCHES NOMINAL
GROMMET CONSTRUCTION TYPE	SOLID
NONMETALLIC HARDNESS RATING	NOT RATED

Restrictions/Controls & Freight Information | NSN 5325-00-783-4754

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	846	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-783-4754

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
