NSN 5325-00-780-9545 BACS21Z5R, 11280005, 1128000-5
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-780-9545 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21Z5R, 11280005, 1128000-5, 28S145, 28S14-5, 2BS145, 2BS14-5, 5325-00-780-9545, 00-780-9545, 5325007809545, 007809545
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-780-9545 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

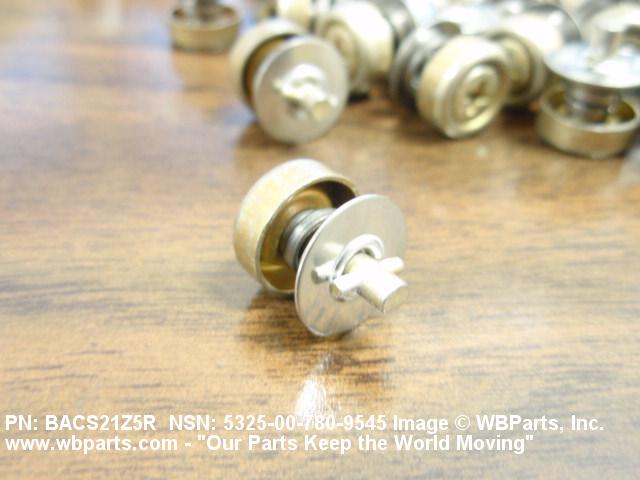

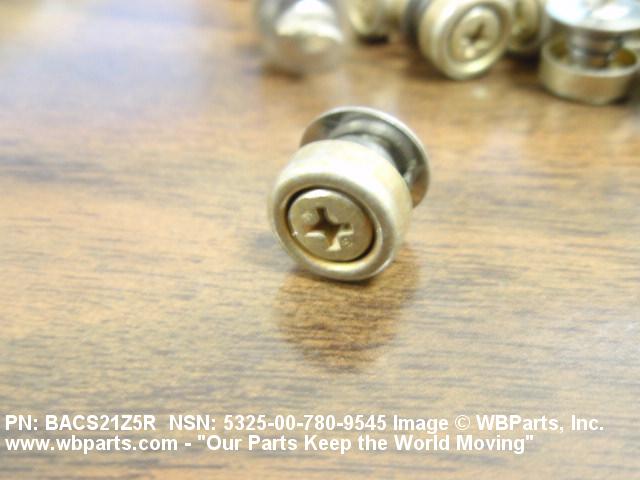

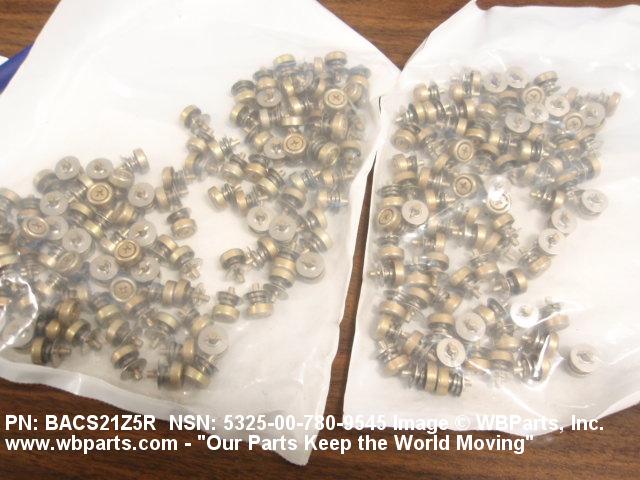

Drawings & Photos | NSN 5325-00-780-9545
Demand History | NSN 5325-00-780-9545
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1128000-5 | 2024-06-168 | 115 | DIBBS |
| 28S14-5 | 2024-06-168 | 115 | DIBBS |
| BACS21Z5R | 2024-06-168 | 115 | DIBBS |
| 1128000-5 | 2024-02-59 | 3223 | DIBBS |
| 28S14-5 | 2024-02-59 | 3223 | DIBBS |
| BACS21Z5R | 2024-02-59 | 3223 | DIBBS |
| 1128000-5 | 2024-02-51 | 3223 | DIBBS |
| 28S14-5 | 2024-02-51 | 3223 | DIBBS |
| BACS21Z5R | 2024-02-51 | 3223 | DIBBS |
| 1128000-5 | 2024-01-17 | 227 | DIBBS |
| 28S14-5 | 2024-01-17 | 227 | DIBBS |
| BACS21Z5R | 2024-01-17 | 227 | DIBBS |
| 1128000-5 | 2019-01-21 | 2064 | DIBBS |
| 28S14-5 | 2019-01-21 | 2064 | DIBBS |
| BACS21Z5R | 2019-01-21 | 2064 | DIBBS |
| 5325-00-780-9545 | 2011-08-222 | 6900 | DIBBS |
| 5325-00-780-9545 | 2011-05-151 | 6214 | DIBBS |
| 5325-00-780-9545 | 2010-09-256 | 4958 | DIBBS |
| 5325-00-780-9545 | 2010-07-203 | 200 | United States |
| 5325-00-780-9545 | 2010-02-47 | 200 | US |
| 5325-00-780-9545 | 2009-06-162 | 2468 | DIBBS |
| 5325-00-780-9545 | 2009-03-84 | 653 | DIBBS |
| 5325-00-780-9545 | 2008-11-329 | 491 | DIBBS |
Cross Reference | NSN 5325-00-780-9545
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1128000-5 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 28S14-5 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 28S14-5 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2BS14-5 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS21Z5R | 77272 | THE BOEING COMPANY DBA BOEING |
| BACS21Z5R | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-780-9545
Related Products | NSN 5325-00-780-9545
Technical Data | NSN 5325-00-780-9545
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.489 INCHES MINIMUM AND 0.511 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 12 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.371 INCHES MINIMUM AND 0.381 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.519 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| STUD DIAMETER | 0.305 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| SECURING DEVICE TYPE | WASHER |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.150 INCHES MINIMUM AND 0.179 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-780-9545
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-780-9545
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
