Product Details | TURNLOCK FASTENER EJECTOR SPRING
5325-00-778-0463 A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position.
Part Alternates: 9067724, 5325-00-778-0463, 00-778-0463, 5325007780463, 007780463
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-778-0463 | 18424 ( EJECTOR SPRING, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-778-0463
Demand History | NSN 5325-00-778-0463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-778-0463 | 2020-01-26 | 14 | DIBBS |
| 5325-00-778-0463 | 2018-01-24 | 15 | DIBBS |
| 5325-00-778-0463 | 2018-01-16 | 15 | DIBBS |
| 5325-00-778-0463 | 2017-03-86 | 50 | DIBBS |
| 5325-00-778-0463 | 2014-02-49 | 100 | DIBBS |
| 5325-00-778-0463 | 2013-09-258 | 39 | DIBBS |
| 5325-00-778-0463 | 2012-01-03 | 33 | DIBBS |
| 5325-00-778-0463 | 2011-08-213 | 10 | DIBBS |
| 5325-00-778-0463 | 2011-05-143 | 300 | DIBBS |
| 5325-00-778-0463 | 2011-04-119 | 30 | DIBBS |
| 5325-00-778-0463 | 2011-04-93 | 100 | DIBBS |
| 5325-00-778-0463 | 2011-01-29 | 4 | DIBBS |
| 5325-00-778-0463 | 2010-12-347 | 10 | DIBBS |
| 5325-00-778-0463 | 2010-10-280 | 100 | DIBBS |
| 5325-00-778-0463 | 2010-09-273 | 30 | DIBBS |
| 5325-00-778-0463 | 2010-08-223 | 7 | DIBBS |
| 5325-00-778-0463 | 2010-08-223 | 30 | DIBBS |
| 5325-00-778-0463 | 2010-08-223 | 100 | DIBBS |
| 5325-00-778-0463 | 2010-07-185 | 100 | DIBBS |
| 5325-00-778-0463 | 2009-12-359 | 30 | DIBBS |
| 5325-00-778-0463 | 2009-11-311 | 7 | DIBBS |
Cross Reference | NSN 5325-00-778-0463
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9067724 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-778-0463
Related Products | NSN 5325-00-778-0463
Technical Data | NSN 5325-00-778-0463
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-17919,MATERIAL NO. 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

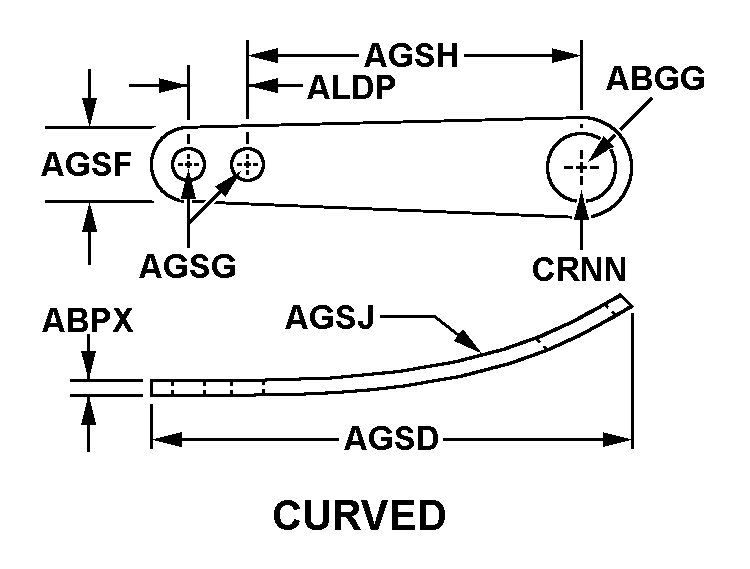

| EJECTOR SPRING STYLE | 5 CURVED |
