NSN 5325-00-689-8837 BACS21EE2R, BACS21Y2R , BACS21YAR
Product Details | TURNLOCK FASTENER STUD ASSEMBLY

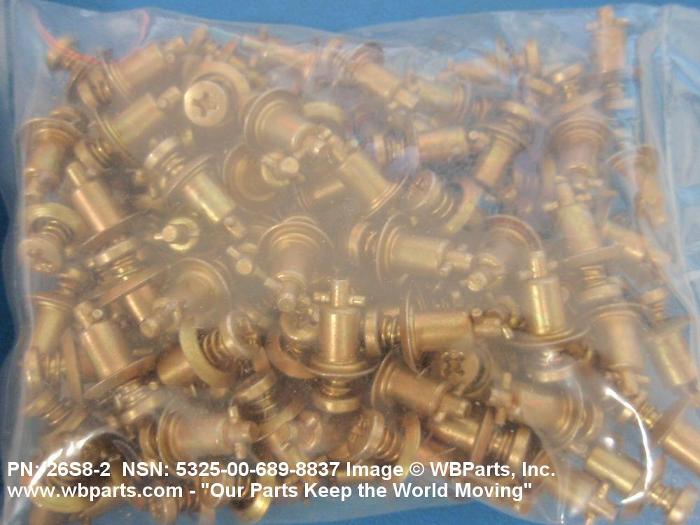

5325-00-689-8837 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21EE2R, BACS21Y2R , BACS21YAR, HE12800283102, HE128-0028-3102, 11260042, 1126004-2 , 26S802, 26S8-02, 26S82, 26S8-2, 5325-00-689-8837, 00-689-8837, 5325006898837, 006898837
