Product Details | TURNLOCK FASTENER STUD ASSEMBLY

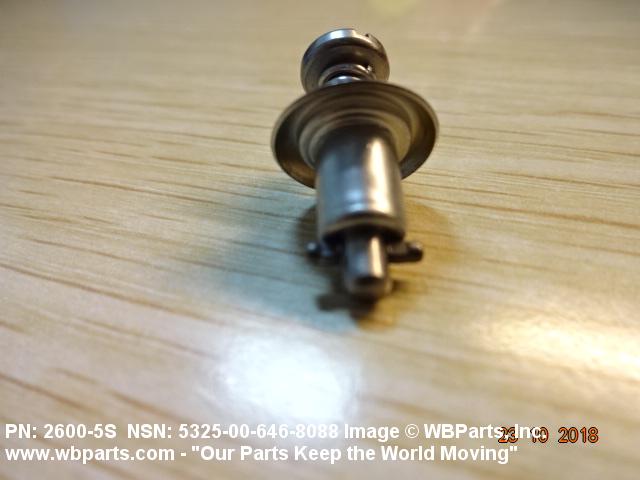

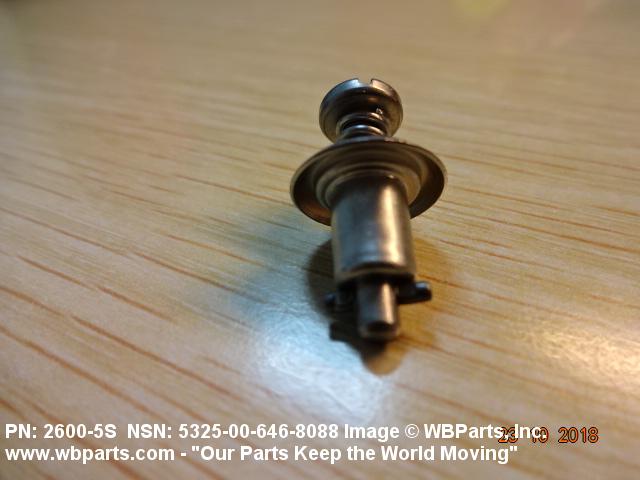

5325-00-646-8088 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 26005S, 2600-5S, 6600483161430557, 660-04-831614-305-57, 91315177 , 5325-00-646-8088, 00-646-8088, 5325006468088, 006468088
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JAN 1985 | 00-646-8088 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

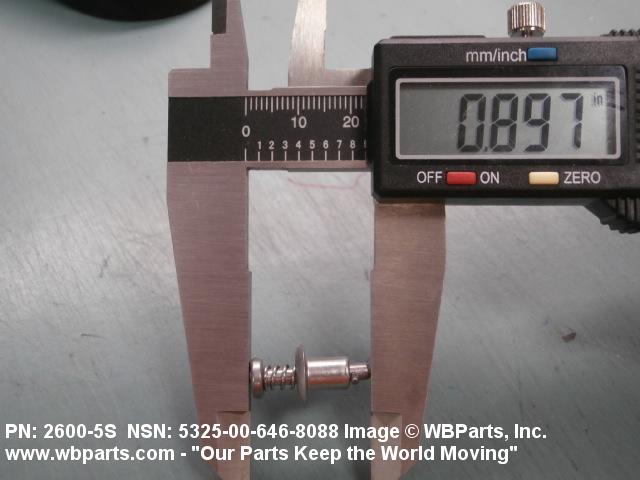

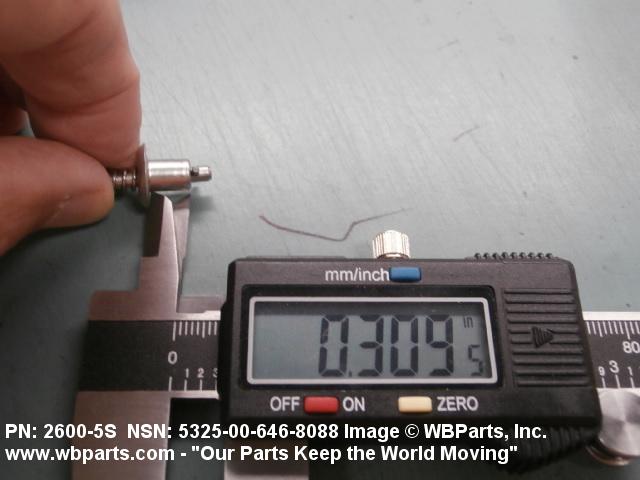

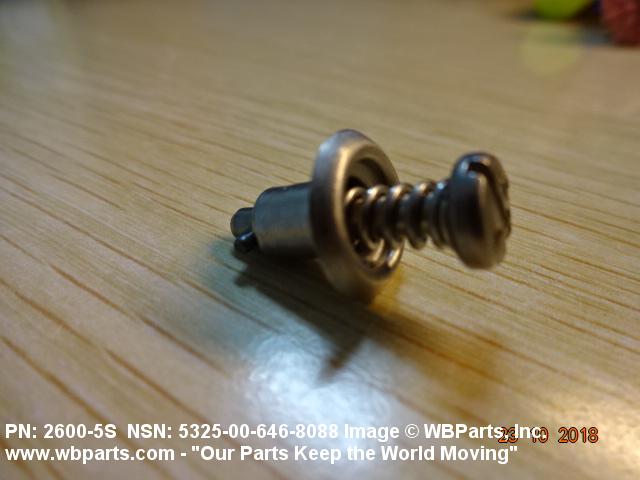

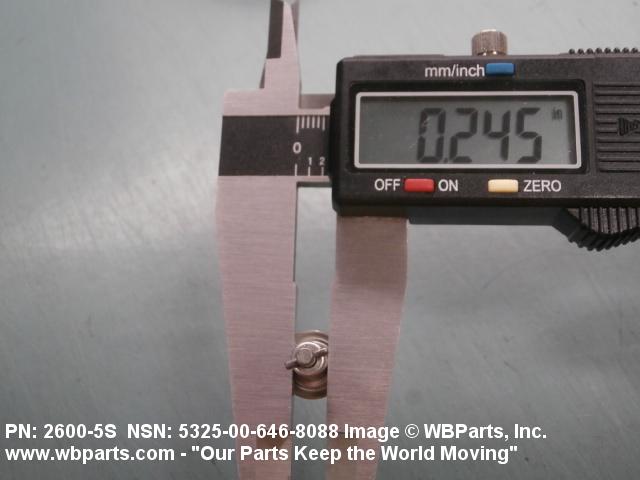

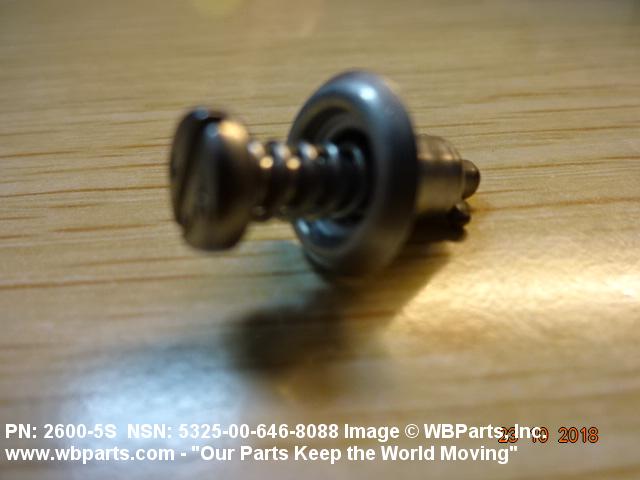

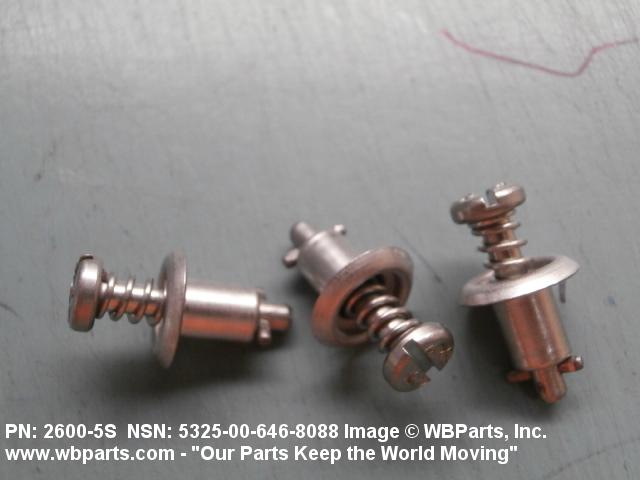

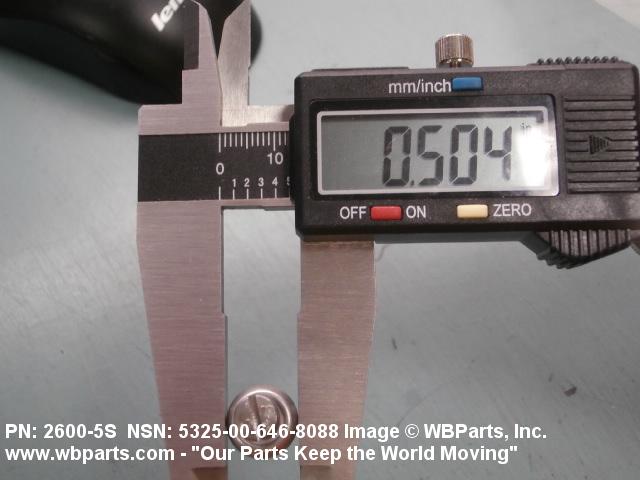

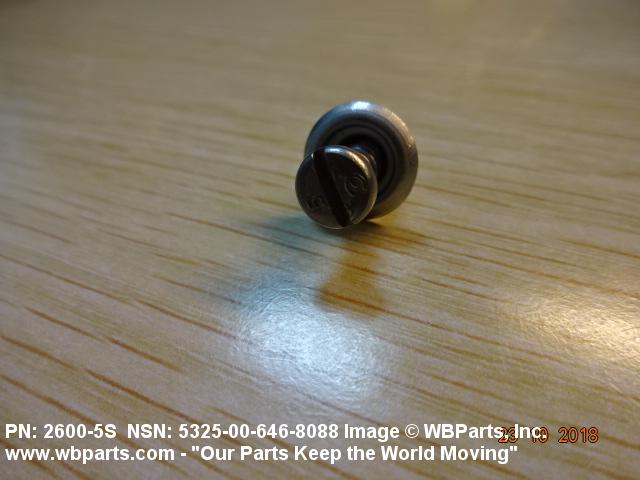

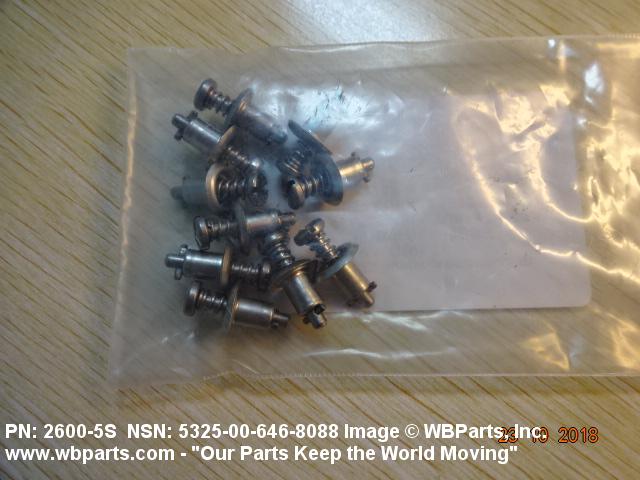

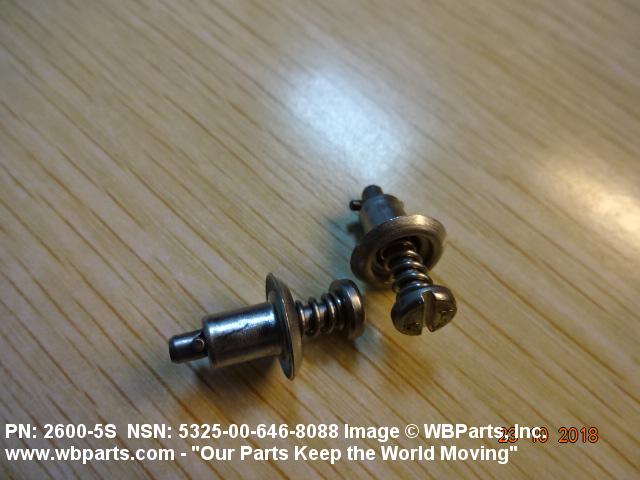

Drawings & Photos | NSN 5325-00-646-8088
Demand History | NSN 5325-00-646-8088
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-646-8088 | 2024-01-29 | 1180 | United States |
| 2600-5S | 2023-10-293 | 66 | DIBBS |
| 2600-5S | 2023-10-285 | 66 | DIBBS |
| 2600-5S | 2023-10-277 | 66 | DIBBS |
| 2600-5S | 2023-09-269 | 66 | DIBBS |
| 26005S | 2023-08-219 | 10 | us |
| 26005S | 2023-05-121 | 250 | United States |
| 2600-5S | 2022-05-123 | 2776 | DIBBS |
| 5325-00-646-8088 | 2018-11-332 | 3183 | DIBBS |
| 5325-00-646-8088 | 2018-09-248 | 20 | US |
| 5325-00-646-8088 | 2018-01-01 | 3110 | DIBBS |
| 5325-00-646-8088 | 2017-01-23 | 3699 | DIBBS |
| 5325-00-646-8088 | 2016-12-353 | 417 | DIBBS |
| 26005S | 2016-05-137 | 1 | US |
| 26005S | 2015-09-264 | 1746 | Malaysia |
| 5325-00-646-8088 | 2013-09-260 | 4365 | DIBBS |
| 5325-00-646-8088 | 2013-02-53 | 3873 | DIBBS |
| 5325-00-646-8088 | 2011-12-364 | 3123 | DIBBS |
| 26005S | 2011-01-14 | 10 | Indonesia |
| 5325-00-646-8088 | 2010-11-327 | 3331 | DIBBS |
| 5325-00-646-8088 | 2009-05-125 | 2395 | DIBBS |
| 26005S | 2009-04-91 | 1600 | United States |
| 26005S | 2009-03-75 | 4 | United States |
| 26005S | 2009-01-09 | 40 | United States |
| 26005S | 2009-01-09 | 58 | United States |
| 26005S | 2009-01-09 | 62 | United States |
| 26005S | 2009-01-09 | 72 | United States |
| 26005S | 2009-01-09 | 232 | United States |
| 5325-00-646-8088 | 2008-07-194 | 3700 | DIBBS |
| 5325-00-646-8088 | 2008-07-193 | 3700 | DIBBS |
| 26005S | 2008-03-77 | 200 | United Kingdom |
| 5325-00-646-8088 | 2008-02-35 | 2239 | DIBBS |
Cross Reference | NSN 5325-00-646-8088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2600-5S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2600-5S | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| 2600-5S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2600-5S | K1678 | FAIRCHILD FASTENERS UK LTD |
| 2600-5S | U8F82 | SPECIALTY FASTENERS & COMPONENTS LTD |
| 660-04-831614-305-57 | U2982 | BAE SYSTEMS DEFENCE SYSTEMS LTD |
| 91315177 | F6481 | THALES SA |
