Product Details | METALLIC GROMMET

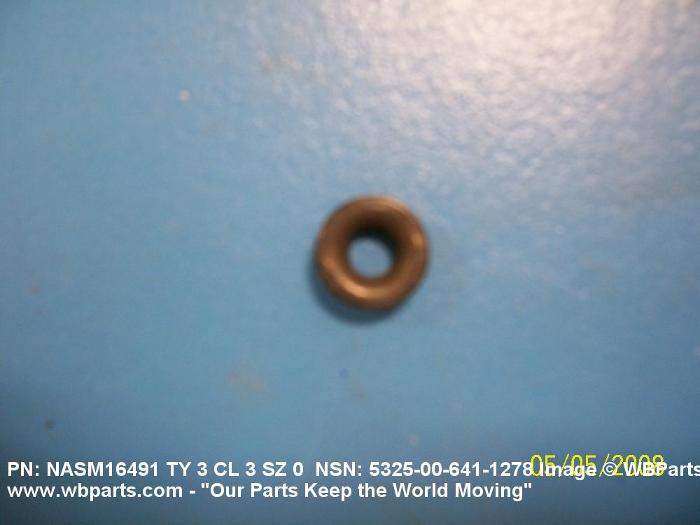

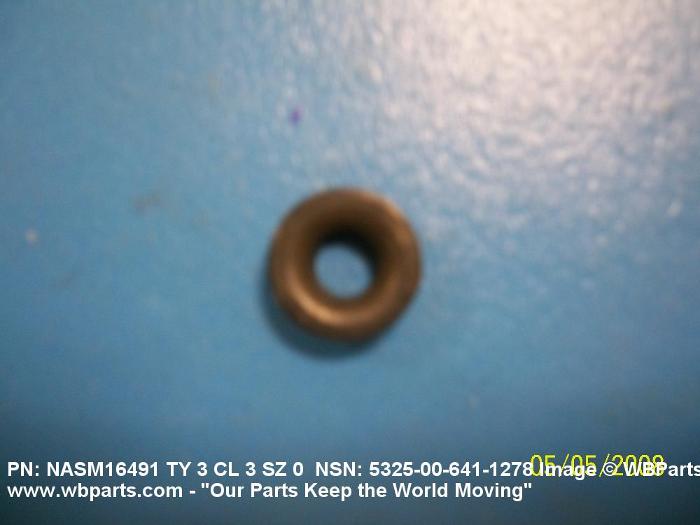

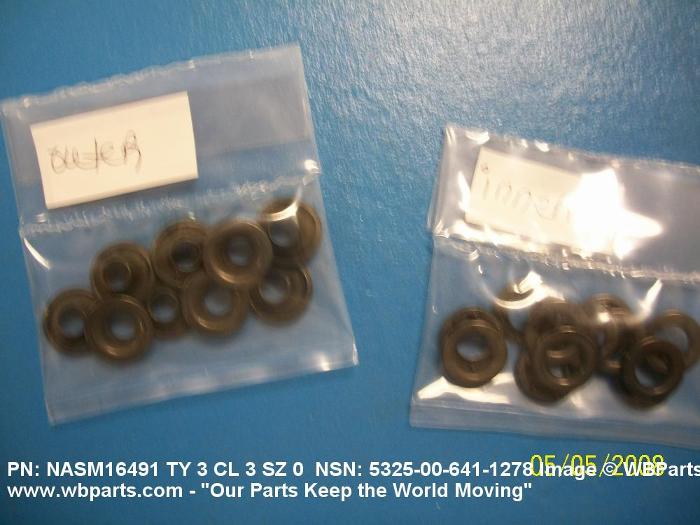

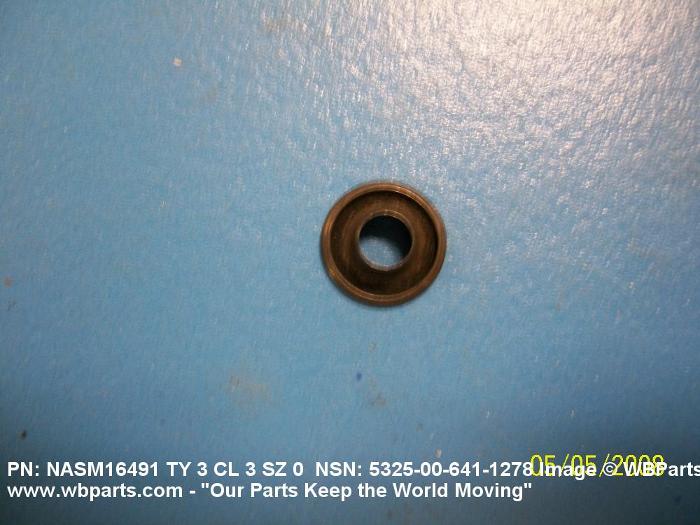

5325-00-641-1278 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.

Part Alternates: NASM16491 TY 3 CL 3 SZ 0, NASM16491TY3CL3SZ0, G16491TYPE3CLASS3SIZE0, 5325-00-641-1278, 00-641-1278, 5325006411278, 006411278

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-641-1278

Drawings & Photos | NSN 5325-00-641-1278


Demand History | NSN 5325-00-641-1278

Part Number Request Date QTY Origin
5325-00-641-1278 2021-03-83 24 DIBBS
5325-00-641-1278 2021-03-62 3456 DIBBS
5325-00-641-1278 2020-10-281 24 DIBBS
5325-00-641-1278 2019-10-276 5 DIBBS
5325-00-641-1278 2017-03-67 2 United States
5325-00-641-1278 2011-06-167 2 Canada
NASM16491 TY 3 CL 3 SZ 0 2011-06-167 12 Canada
5325-00-641-1278 2010-12-342 8 DIBBS
5325-00-641-1278 2010-11-312 11 DIBBS
5325-00-641-1278 2009-03-77 17 DIBBS
5325-00-641-1278 2008-04-112 17 DIBBS
5325-00-641-1278 2008-03-86 10 DIBBS
5325-00-641-1278 2008-03-86 24 DIBBS

Cross Reference | NSN 5325-00-641-1278

Part Number Cage Code Manufacturer
G16491TYPE3CLASS3SIZE0 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NASM16491 TY 3 CL 3 SZ 0 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-641-1278

Technical Data | NSN 5325-00-641-1278

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
SURFACE TREATMENT ENAMEL,BLACK OVERALL
COLOR BLACK OVERALL
BARREL STYLE 1 STRAIGHT ROUND TYPE
BARREL HEIGHT 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM
BARREL OUTSIDE DIAMETER 0.297 INCHES MINIMUM AND 0.307 INCHES MAXIMUM
FLANGE STYLE 5 FLANGE
FLANGE OUTSIDE DIAMETER 0.655 INCHES MINIMUM AND 0.685 INCHES MAXIMUM
WASHER STYLE 5 SINGLE ROW TOOTHED
NONDEFINITIVE SPEC/STD DATA 3 TYPE AND 3 CLASS AND 0 SIZE
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE G16491TYPE3CLASS3SIZE0

Restrictions/Controls & Freight Information | NSN 5325-00-641-1278

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 094533 EYELETS OR EYELET HOOKS NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
