NSN 5325-00-639-7168 63350, 00-639-7168, 006397168
Product Details | PUSH BUTTON FASTENER STUD
5325-00-639-7168 A metal fastening device having retractable engaging prong(s) or engaging rings actuated by a spring loaded button designed to mate with a SOCKET, PUSH BUTTON FASTENER. May include a clinch plate.
Part Alternates: 63350, 5325-00-639-7168, 00-639-7168, 5325006397168, 006397168
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-639-7168 | 17969 ( STUD, PUSH BUTTON FASTENER ) |

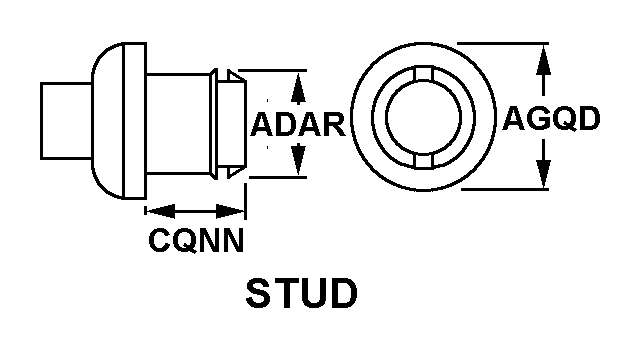

Drawings & Photos | NSN 5325-00-639-7168
Cross Reference | NSN 5325-00-639-7168
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63350 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-639-7168
Technical Data | NSN 5325-00-639-7168
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| PUSH BUTTON STUD STYLE | 6 STUD |
| BODY OUTSIDE DIAMETER | 0.359 INCHES NOMINAL |
| BASE OUTSIDE DIAMETER | 0.797 INCHES NOMINAL |
| STUD BODY LENGTH | 0.344 INCHES NOMINAL |
| SPECIAL FEATURES | SOLID SHANK |
Restrictions/Controls & Freight Information | NSN 5325-00-639-7168
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5325-00-639-7168
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
