Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-638-5115 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 400212K, 4002-12K, 5325-00-638-5115, 00-638-5115, 5325006385115, 006385115
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-5115 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-638-5115
Cross Reference | NSN 5325-00-638-5115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4002-12K | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-638-5115
Related Products | NSN 5325-00-638-5115
Technical Data | NSN 5325-00-638-5115
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 1009 OR STEEL COMP 1050 OR STEEL COMP 1112 EYELET STEEL COMP 1112 HEAD STEEL PIN STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE PIN |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |

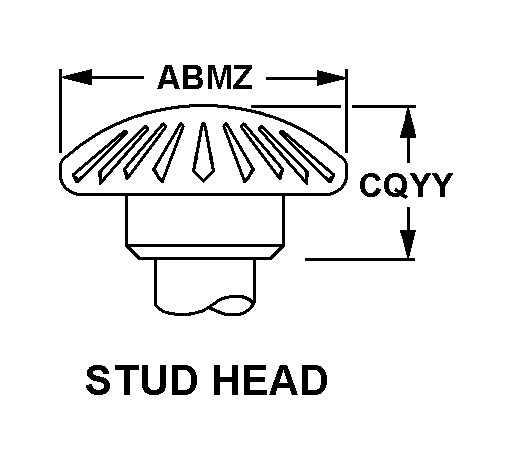

| TURNLOCK STUD HEAD STYLE | 14 STUD HEAD |
| DIAMETER | 0.750 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.340 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 17 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.743 INCHES MINIMUM AND 0.758 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.341 INCHES MINIMUM AND 0.348 INCHES MAXIMUM |
| EYELET LENGTH | 0.502 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.381 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| SPECIAL FEATURES | KNURLED HEAD |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 4002-12K |
