NSN 5325-00-637-5402 2053221, 20532218, 2053221-8
Product Details | METALLIC EYELET
5325-00-637-5402 A one-piece metal item, usually tubular, flanged at one end, the other end open. It is used primarily for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and crimped to form a mating flange. Excludes GROMMET, METALLIC and eyelets which are components of pushbutton, turnbutton and turnlock type fastners.
Part Alternates: 2053221, 20532218, 2053221-8, 648657, A591, 5325-00-637-5402, 00-637-5402, 5325006375402, 006375402
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-637-5402 | 05457 ( EYELET, METALLIC ) |
Drawings & Photos | NSN 5325-00-637-5402
Demand History | NSN 5325-00-637-5402
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-637-5402 | 2014-04-111 | 1 | DIBBS |
| 5325-00-637-5402 | 2014-04-100 | 1 | DIBBS |
Cross Reference | NSN 5325-00-637-5402
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-637-5402
Technical Data | NSN 5325-00-637-5402
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |

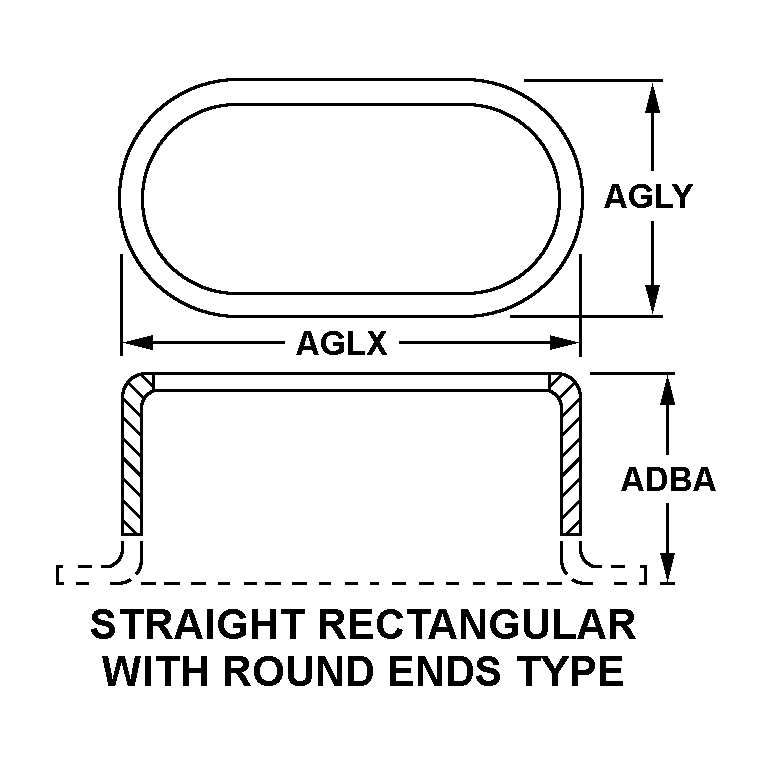

| BARREL STYLE | 5 STRAIGHT RECTANGULAR WITH ROUND ENDS TYPE |
| BARREL HEIGHT | 0.266 INCHES NOMINAL |
| BARREL LENGTH | 0.780 INCHES NOMINAL |
| BARREL WIDTH | 0.370 INCHES NOMINAL |

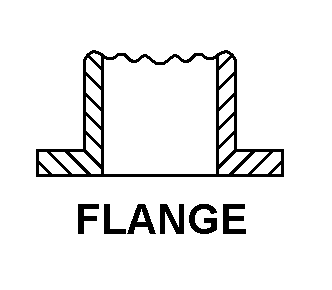

| FLANGE STYLE | 1 FLANGE |
| FLANGE LENGTH | 1.000 INCHES NOMINAL |
| FLANGE WIDTH | 0.562 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-637-5402
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-637-5402
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 GR : Gross |
