NSN 5325-00-616-4680 AN22718B, AN227-18B, 4995518B
Product Details | SNAP FASTENER CLINCH PLATE
5325-00-616-4680 A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting.
Part Alternates: AN22718B, AN227-18B, 4995518B, 49955-18B, 5325-00-616-4680, 00-616-4680, 5325006164680, 006164680
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 APR 1983 | 00-616-4680 | 16557 ( CLINCH PLATE, SNAP FASTENER ) |

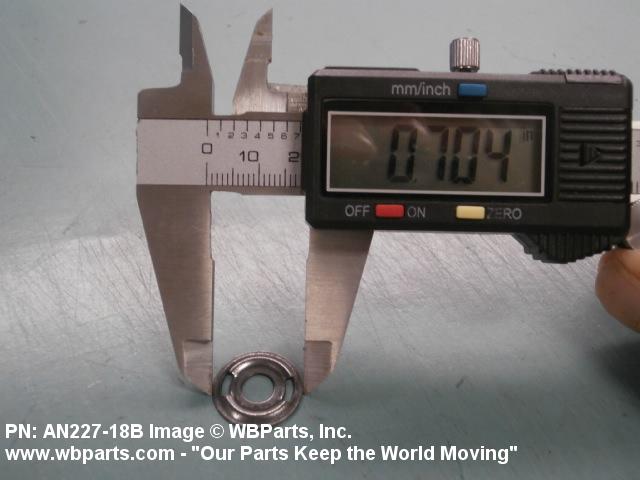

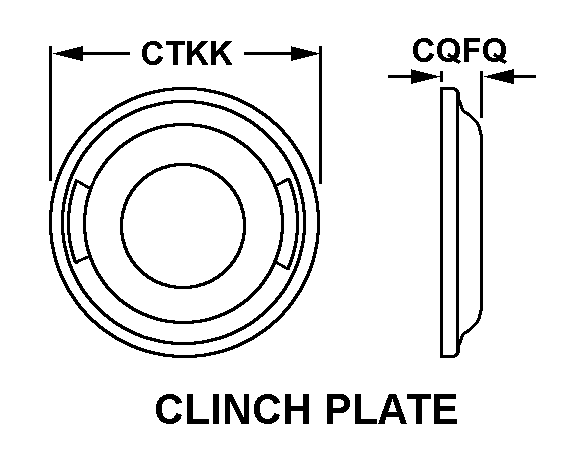

Drawings & Photos | NSN 5325-00-616-4680
Demand History | NSN 5325-00-616-4680
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-616-4680 | 2014-02-38 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-616-4680
Related Products | NSN 5325-00-616-4680
Technical Data | NSN 5325-00-616-4680
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 260 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-C-50 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-495 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SNAP FASTENER CLINCH PLATE STYLE | 2 CLINCH PLATE |
| PLATE OVERALL HEIGHT | 0.047 INCHES NOMINAL |
| CLINCH PLATE DIAMETER | 0.703 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN227-18B |
Restrictions/Controls & Freight Information | NSN 5325-00-616-4680
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-616-4680
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
