NSN 5325-00-537-8864 B3181100, B3181-100, KJ580X486
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-537-8864 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: B3181100, B3181-100, KJ580X486, KJ5-80X486, 3809576Z, 5325-00-537-8864, 00-537-8864, 5325005378864, 005378864
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-537-8864 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

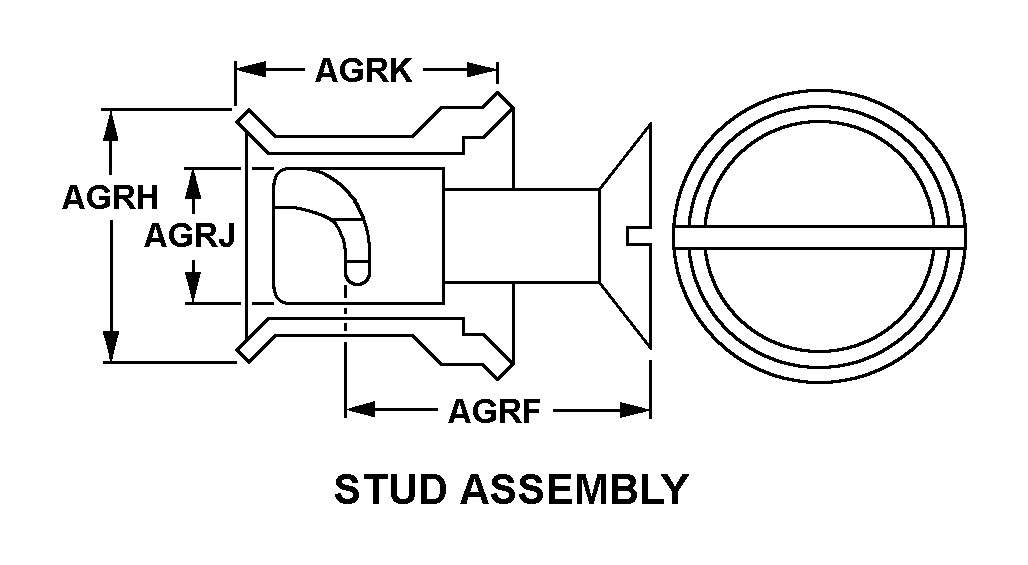

Drawings & Photos | NSN 5325-00-537-8864
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-537-8864
Related Products | NSN 5325-00-537-8864
Technical Data | NSN 5325-00-537-8864
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EYELET ZINC ALLOY HEAD STEEL STUD |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |
| DIAMETER | 0.313 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.450 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 14 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.909 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| STUD DIAMETER | 0.307 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EYELET LENGTH | 1.612 INCHES NOMINAL |
| SECURING DEVICE TYPE | RING |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
