Product Details | TURNLOCK FASTENER EJECTOR SPRING

5325-00-484-6297 A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position.

Part Alternates: 40G342CC, 40G34-2CC, 5325-00-484-6297, 00-484-6297, 5325004846297, 004846297

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 15 SEP 1969 00-484-6297

Drawings & Photos | NSN 5325-00-484-6297


Demand History | NSN 5325-00-484-6297

Part Number Request Date QTY Origin
40G34-2CC 2020-03-75 6 DIBBS
40G34-2CC 2020-02-48 3 DIBBS
40G34-2CC 2020-01-05 3 DIBBS
40G34-2CC 2019-11-329 6 DIBBS
40G34-2CC 2019-09-253 6 DIBBS
40G34-2CC 2019-08-218 25 DIBBS
40G34-2CC 2019-06-176 6 DIBBS
5325-00-484-6297 2018-08-219 15 DIBBS
5325-00-484-6297 2018-06-179 8 DIBBS
5325-00-484-6297 2017-12-354 8 DIBBS
5325-00-484-6297 2017-03-78 28 DIBBS
40G342CC 2016-11-334 13 United States

Cross Reference | NSN 5325-00-484-6297

Part Number Cage Code Manufacturer
40G34-2CC 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-484-6297

Technical Data | NSN 5325-00-484-6297

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL

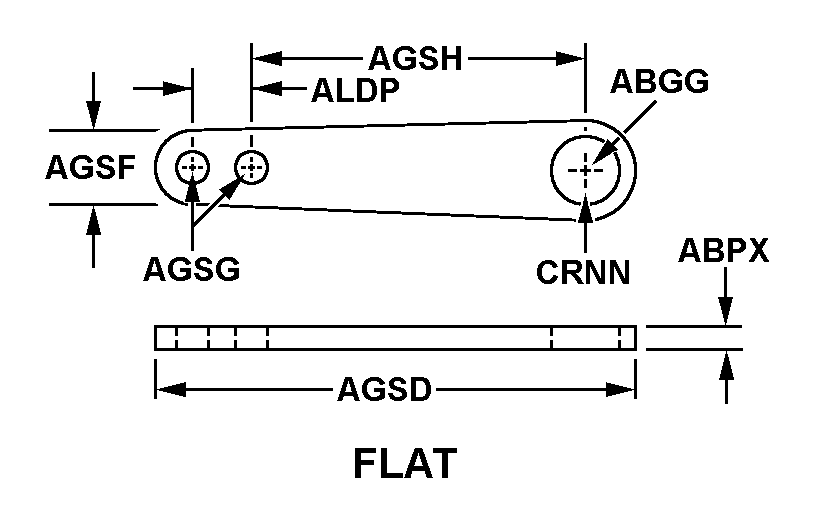

EJECTOR SPRING STYLE 1 FLAT
RADIUS 0.410 INCHES NOMINAL
MATERIAL THICKNESS 0.019 INCHES MINIMUM AND 0.026 INCHES MAXIMUM
SPRING WIDTH 0.250 INCHES NOMINAL
SPRING MOUNTING HOLE DIAMETER 0.128 INCHES MINIMUM AND 0.134 INCHES MAXIMUM
DISTANCE FROM GROMMET HOLE CENTER TO MOUNTING HOLE CENTER 2.994 INCHES MINIMUM AND 3.006 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN SPRING MOUNTING HOLES 0.372 INCHES MINIMUM AND 0.378 INCHES MAXIMUM
EJECTOR SPRING HOLE DIAMETER ANY ACCEPTABLE

Restrictions/Controls & Freight Information | NSN 5325-00-484-6297

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 178020 SPRINGS NOI WIRE STL
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 579 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-484-6297

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
