NSN 5325-00-449-3022 C22123Z1000C2, 10630050-3, 11260002

Product Details | TURNLOCK FASTENER STUD ASSEMBLY

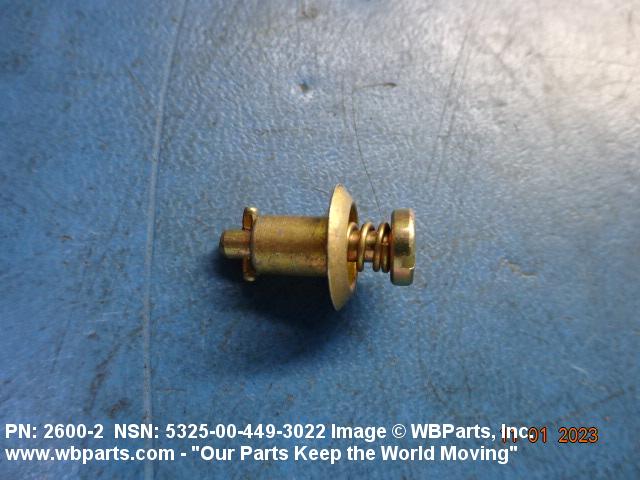

5325-00-449-3022 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.

Part Alternates: C22123Z1000C2, 10630050-3, 11260002, 1126000-2, 26002, 2600-2, 5325-00-449-3022, 00-449-3022, 5325004493022, 004493022, 106300503, 287360234

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-449-3022	18484 ( STUD ASSEMBLY, TURNLOCK FASTENER )

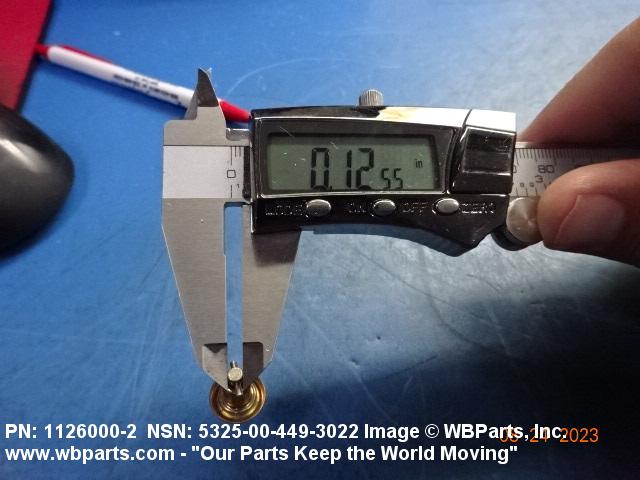

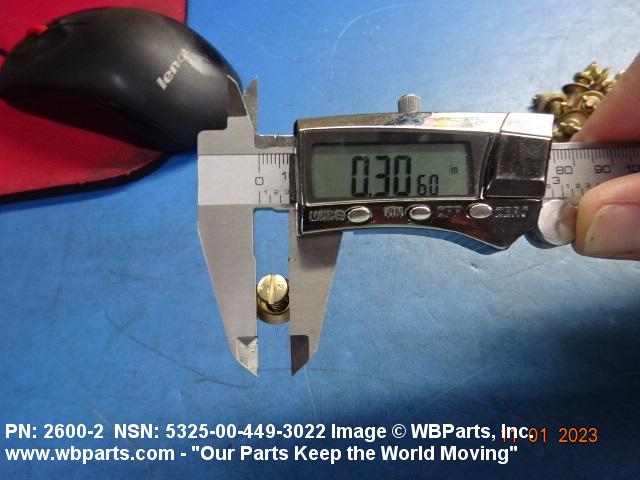

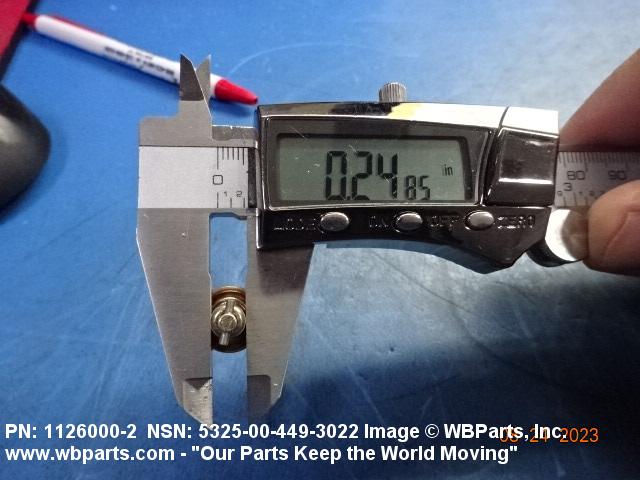

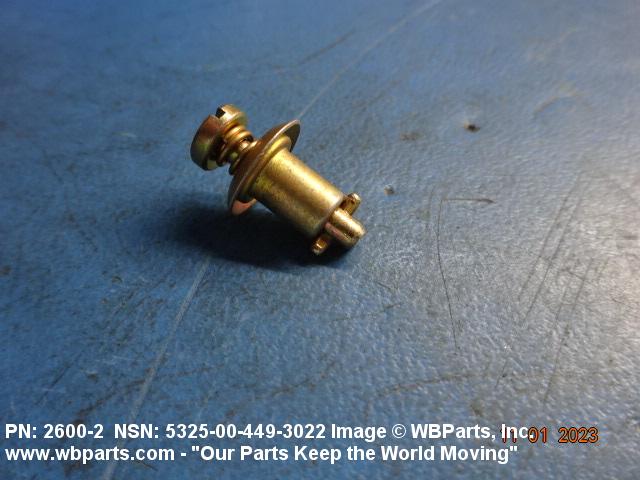

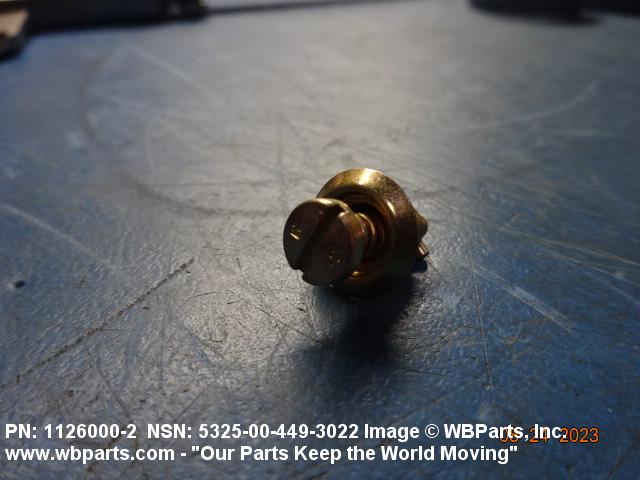

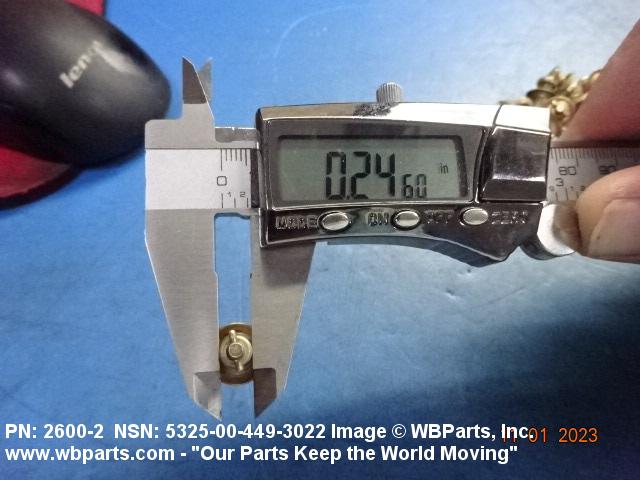

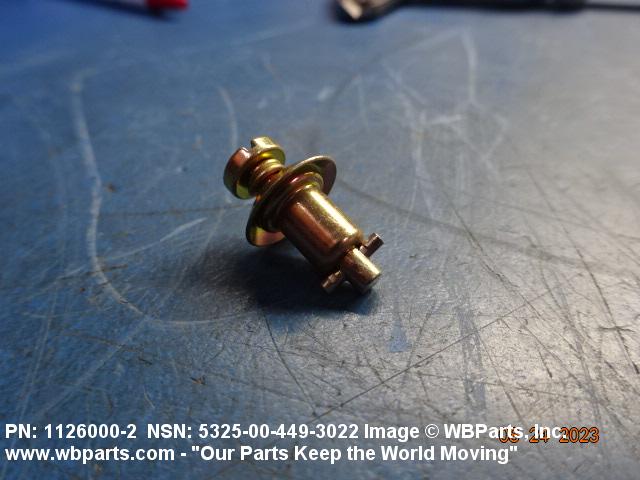

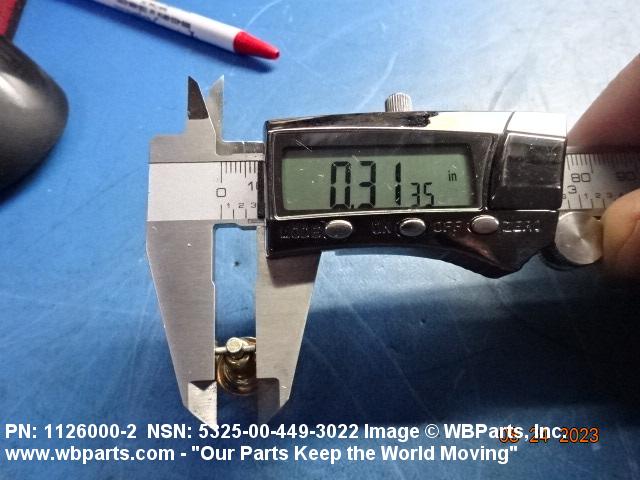

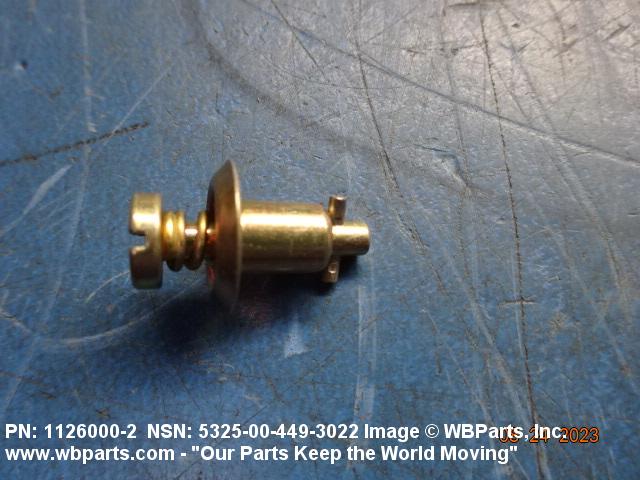

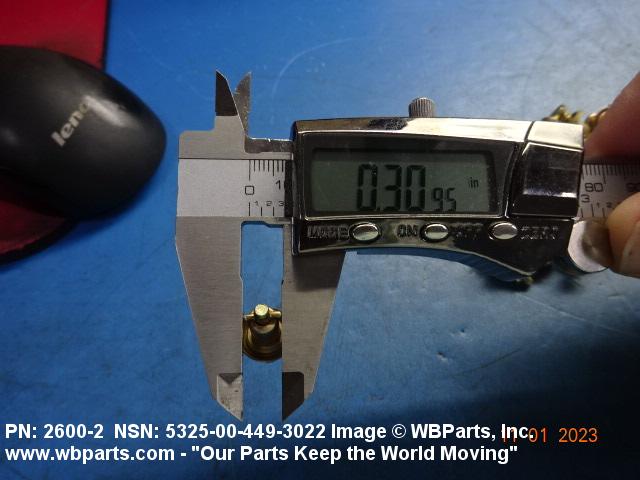

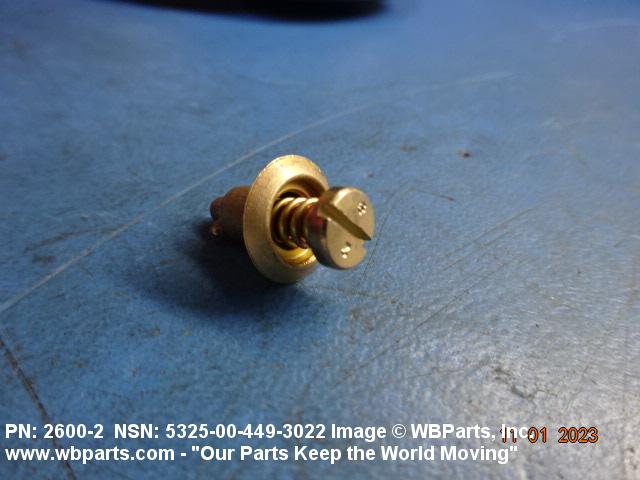

Drawings & Photos | NSN 5325-00-449-3022

Part Number	Request Date	QTY	Origin
26002	2024-09-264	2	United States
106300503	2023-10-297	30	United States
5325-00-449-3022	2023-10-297	30	United States
5325-00-449-3022	2023-03-87	10	India
5325-00-449-3022	2022-10-291	10	India
1126000-2	2021-02-52	863	DIBBS
2600-2	2021-02-52	863	DIBBS
1126000-2	2020-12-348	863	DIBBS
2600-2	2020-12-348	863	DIBBS
1126000-2	2020-12-344	1	DIBBS
2600-2	2020-12-344	1	DIBBS
1126000-2	2020-11-317	1	DIBBS
1126000-2	2020-11-317	2	DIBBS
2600-2	2020-11-317	1	DIBBS
2600-2	2020-11-317	2	DIBBS
1126000-2	2020-11-306	3	DIBBS
2600-2	2020-11-306	3	DIBBS
1126000-2	2020-05-128	10	DIBBS
2600-2	2020-05-128	10	DIBBS
1126000-2	2020-04-112	200	DIBBS
2600-2	2020-04-112	200	DIBBS
1126000-2	2014-06-157	50	United States
26002	2013-06-172	100	Philippines

Cross Reference | NSN 5325-00-449-3022

Part Number	Cage Code	Manufacturer
10630050-3	18876	U S ARMY AVIATION AND MISSILE COMMAND
1126000-2	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
2600-2	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
2600-2	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
287360234	U0625	B-N GROUP LTD
C22123Z1000C2	C0363	NOKIA SOLUTIONS AND NETWORKS GMBH &CO. KG

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-449-3022

Compare

Related Products | NSN 5325-00-449-3022

5325-00-449-3023, 5325-00-449-3024, 5325-00-449-3025, 5325-00-449-3026, 5325-00-449-3027

Technical Data | NSN 5325-00-449-3022

Characteristic	Specifications
MATERIAL	STEEL EYELET STEEL PIN STEEL COMP 4037 STUD
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE PIN ASTM A322 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A331 ASSN STD 2ND MATERIAL RESPONSE STUD
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
TURNLOCK STUD HEAD STYLE	2 FILLISTER
DIAMETER	0.298 INCHES MINIMUM AND 0.308 INCHES MAXIMUM
STUD HEAD HEIGHT	0.298 INCHES MINIMUM AND 0.308 INCHES MAXIMUM
STUD ASSEMBLY STYLE	7 STUD ASSEMBLY
DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD	0.572 INCHES MINIMUM AND 0.587 INCHES MAXIMUM
EYELET OUTSIDE DIAMETER	0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
EYELET LENGTH	0.322 INCHES NOMINAL
DRIVE TYPE	SLOTTED
MATERIAL ACCOMMODATED THICKNESS	0.030 INCHES MINIMUM AND 0.089 INCHES MAXIMUM
MANUFACTURERS CODE	71286
DESIGN CONTROL REFERENCE	2600-2

Restrictions/Controls & Freight Information | NSN 5325-00-449-3022

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-449-3022

Navy

Category	Code	Description
Cognizance Codes	9Z	Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9I	Defense Industrial Supply Center Philadelphia, PA 19111
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
