NSN 5325-00-432-3584 MS166241018, MS16624-1018, MS1662450181

Product Details | RETAINING RING

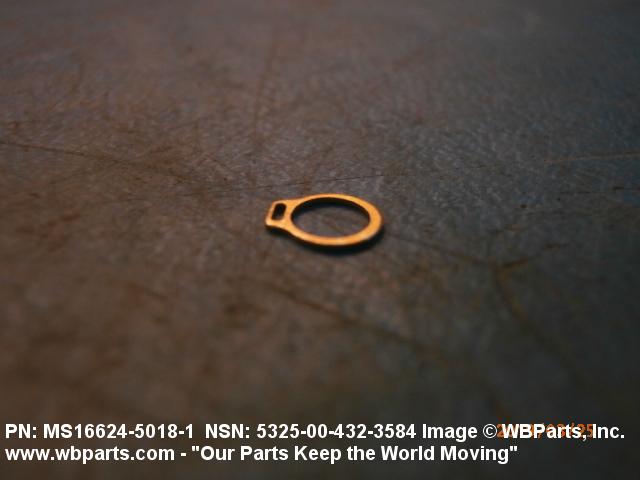

5325-00-432-3584 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MS166241018, MS16624-1018, MS1662450181, MS16624-5018-1, N900P18C, NAS5118, NAS51-18, R271NAA0018NN643NNPF1, G6501128, G650112-8, 7117714P002, 716-039-002, 16624-1018, 510018CMF, 5100-18CMF, 510018CZI, 5100-18CZI, 510018H, 5100-18H, 021.450506, 10352901, 5325-00-432-3584, 00-432-3584, 5365004323584, 5325004323584, 166241018, 004323584, 021450506, 716039002

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	14 MAY 1971	00-432-3584	07623 ( RING, RETAINING )

Drawings & Photos | NSN 5325-00-432-3584

Part Number	Request Date	QTY	Origin
5325-00-432-3584	2024-06-161	17	DIBBS
5325-00-432-3584	2024-05-140	18	DIBBS
5325-00-432-3584	2023-10-288	151	DIBBS
5325-00-432-3584	2023-06-173	19	DIBBS
5325-00-432-3584	2022-12-349	215	DIBBS
5325-00-432-3584	2022-10-279	108	DIBBS
5325-00-432-3584	2022-09-268	108	DIBBS
MS166241018	2022-07-189	6	Australia
MS1662450181	2021-06-167	10	MY
MS1662450181	2021-06-167	10	TR
MS1662450181	2021-06-165	10	US
MS1662450181	2019-06-162	50	United States
5325-00-432-3584	2019-05-149	200	DIBBS
5325-00-432-3584	2019-02-35	48	Spain
5325-00-432-3584	2018-01-15	509	DIBBS
MS1662450181	2016-05-124	10	US
MS1662450181	2015-01-20	7	United States
MS16624-1018	2013-08-229	902	Canada
MS16624-5018-1	2012-07-187	100	KR
5325-00-432-3584	2012-07-185	654	DIBBS
5325-00-432-3584	2012-01-13	485	DIBBS
MS166241018	2011-05-130	810	us
5325-00-432-3584	2011-04-103	40	US
5325-00-432-3584	2010-04-102	251	DIBBS
5325-00-432-3584	2008-12-359	254	DIBBS
NAS5118	2007-11-320	100	US
5325-00-432-3584	2007-04-102	24	United States
MS1662450181	2007-03-80	24	United States
MS1662450181	2007-01-25	24	United States
MS1662450181	2007-01-24	24	United States
5325-00-432-3584	2006-09-270	200	US

Cross Reference | NSN 5325-00-432-3584

Part Number	Cage Code	Manufacturer
021.450506	D1597	AIM INFRAROT-MODULE GMBH DBA AIM IR GMBH
16624-1018	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5100-18CMF	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5100-18CZI	79136	TRUARC COMPANY LLC DBA WALDES TRUARC
5100-18H	79136	TRUARC COMPANY LLC DBA WALDES TRUARC
5365004323584	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7117714P002	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
716-039-002	26055	PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION
G650112-8	3B4M0	LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS
G650112-8	79136	TRUARC COMPANY LLC DBA WALDES TRUARC
MS16624-1018	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS16624-5018-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N900P18C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS51-18	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
R271NAA0018NN643NNPF1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
R271NAA0018NN643NNPF1	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-432-3584

Compare

Related Products | NSN 5325-00-432-3584

5325-00-432-3925, 5325-00-432-3938, 5325-00-432-4058, 5325-00-432-4301, 5325-00-432-4364

Technical Data | NSN 5325-00-432-3584

Characteristic	Specifications
MATERIAL	BERYLLIUM COPPER, QQ-C-533
SURFACE TREATMENT	CADMIUM, QQ-P-416, TYPE 2, CLASS 3
STRENGTH RATING	NOT RATED
MATERIAL HARDNESS RATING	77.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 82.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM
CASEHARDENING INDICATOR	NOT CASEHARDENED
RING STYLE	A41 EXTERNAL

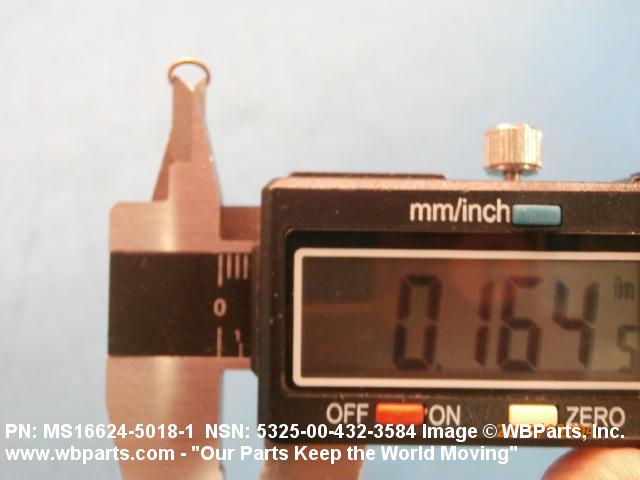

INSIDE DIAMETER	0.164 INCHES MINIMUM AND 0.170 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE	D4 RECTANGULAR

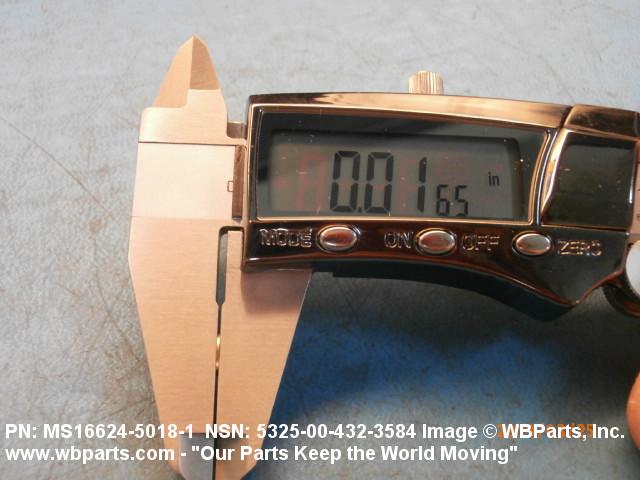

MAJOR THICKNESS	0.013 INCHES MINIMUM AND 0.017 INCHES MAXIMUM
