NSN 5325-00-431-1481 PRA1763, PRA-1763, 177A265 PIECE 5
Product Details | RETAINING RING
5325-00-431-1481 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: PRA1763, PRA-1763, 177A265 PIECE 5, 177A265PIECE5, 5325-00-431-1481, 00-431-1481, 5325004311481, 004311481
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAY 1970 | 00-431-1481 | 07623 ( RING, RETAINING ) |

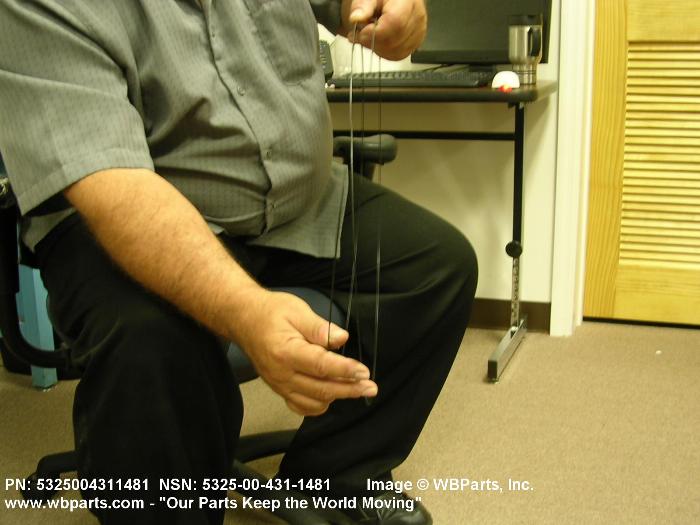

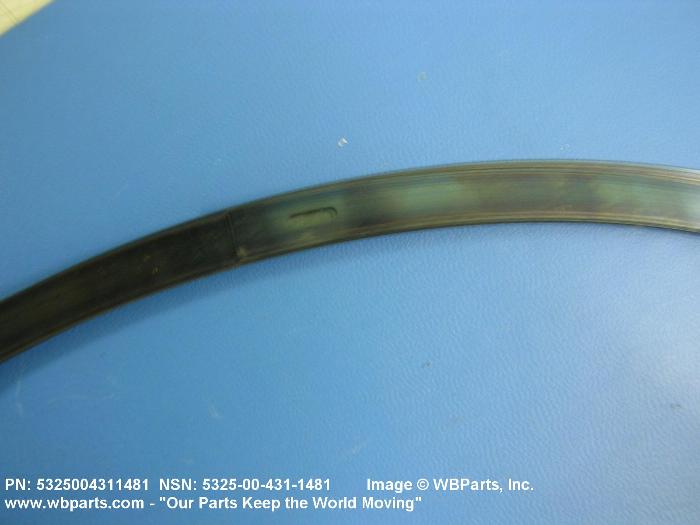

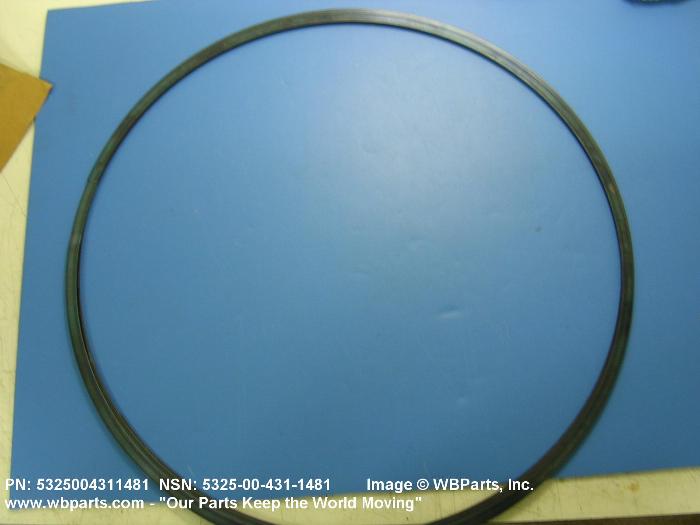

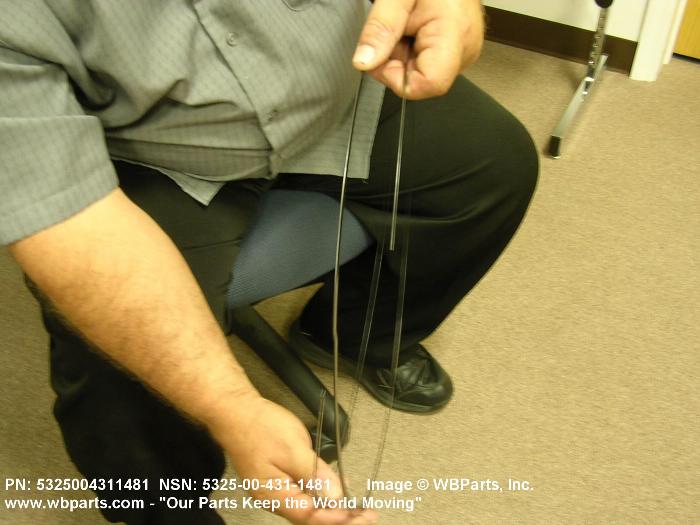

Drawings & Photos | NSN 5325-00-431-1481
Demand History | NSN 5325-00-431-1481
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 177A265 PIECE 5 | 2021-08-220 | 98 | DIBBS |
| 177A265 PIECE 5 | 2021-08-220 | 66 | DIBBS |
| PRA-1763 | 2021-08-220 | 98 | DIBBS |
| PRA-1763 | 2021-08-220 | 66 | DIBBS |
| 177A265 PIECE 5 | 2021-06-178 | 54 | DIBBS |
| PRA-1763 | 2021-06-178 | 54 | DIBBS |
| 177A265 PIECE 5 | 2019-12-351 | 45 | DIBBS |
| PRA-1763 | 2019-12-351 | 45 | DIBBS |
| 5325-00-431-1481 | 2011-06-180 | 92 | DIBBS |
| 5325-00-431-1481 | 2011-04-91 | 38 | DIBBS |
| 5325-00-431-1481 | 2008-12-347 | 4 | DIBBS |
| 5325-00-431-1481 | 2008-06-171 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-431-1481
Technical Data | NSN 5325-00-431-1481
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, COMP 1070 OR STEEL, FED STD 66, COMP 1074 OR STEEL, FED STD 66, COMP 1078 OR STEEL, FED STD 66, COMP 1080 OR STEEL, FED STD 66, COMP 1084 OR STEEL, FED STD 66, COMP 1086 OR STEEL, FED STD 66, COMP 1090 |
| STRENGTH RATING | 211000.0 POUNDS PER SQUARE INCH MINIMUM TENSILE |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A57 SPIRAL |
| INSIDE DIAMETER | 16.886 INCHES MINIMUM AND 17.308 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 17.636 INCHES MINIMUM AND 17.816 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D12 DOUBLE OVAL |
| MAJOR THICKNESS | 0.080 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| USAGE DESIGN | INTERNAL |
Restrictions/Controls & Freight Information | NSN 5325-00-431-1481
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-431-1481
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
