Product Details | RETAINING RING
5325-00-424-1462 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 630838, 7223419 , 7223419P1, 5325-00-424-1462, 00-424-1462, 5325004241462, 004241462
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-424-1462 | 07623 ( RING, RETAINING ) |

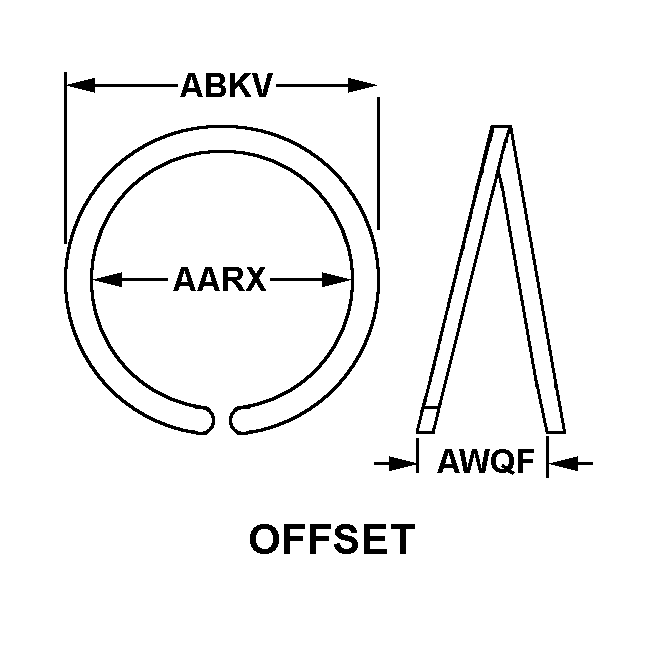

Drawings & Photos | NSN 5325-00-424-1462
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-424-1462
Technical Data | NSN 5325-00-424-1462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL ASTM A576 COMP 1060 TO COMP 1065,OR SAE 1060 TO 1065 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 44.0 ROCKWELL C MINIMUM AND 48.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A84 OFFSET |
| INSIDE DIAMETER | 0.938 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.188 INCHES NOMINAL |
| END PLAY TAKEUP | 0.188 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |
| MAJOR THICKNESS | 0.062 INCHES NOMINAL |
| USAGE DESIGN | EXTERNAL |
