NSN 5325-00-411-6067 26007S, 2600-7S, 580R887H07
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-411-6067 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: 26007S, 2600-7S, 580R887H07, 5325-00-411-6067, 00-411-6067, 5325004116067, 004116067
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JAN 1972 | 00-411-6067 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

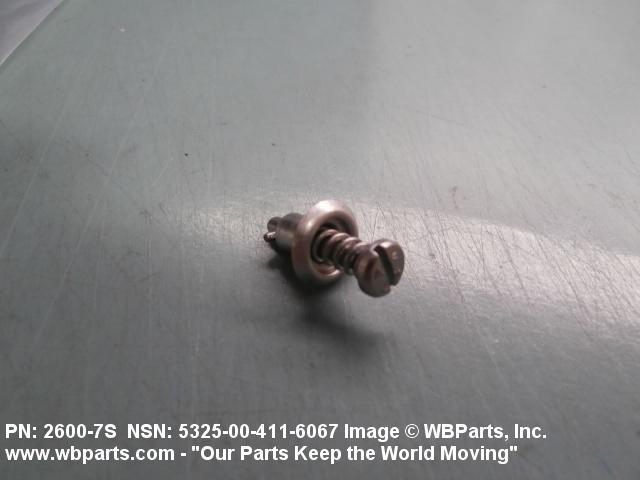

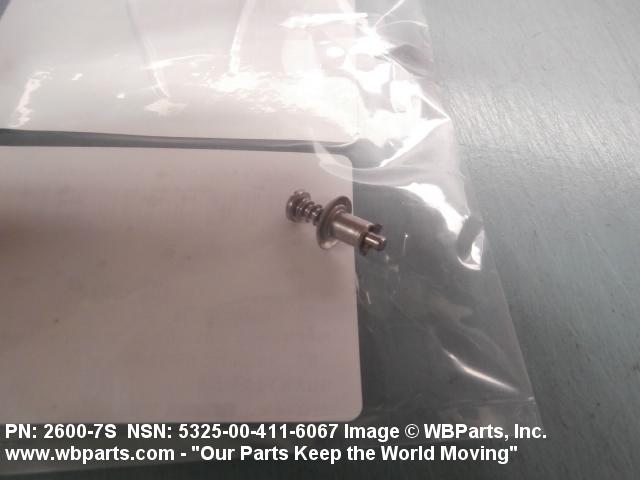

Drawings & Photos | NSN 5325-00-411-6067
Demand History | NSN 5325-00-411-6067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26007S | 2022-10-291 | 55 | United States |
| 26007S | 2022-10-291 | 75 | United States |
| 26007S | 2022-08-213 | 25 | United States |
| 26007S | 2018-04-115 | 50 | United States |
| 26007S | 2014-08-219 | 1 | Canada |
| 5325-00-411-6067 | 2012-07-183 | 100 | DIBBS |
| 26007S | 2012-03-83 | 50 | South Korea |
Cross Reference | NSN 5325-00-411-6067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2600-7S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2600-7S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2600-7S | K1678 | FAIRCHILD FASTENERS UK LTD |
| 2600-7S | U8F82 | SPECIALTY FASTENERS & COMPONENTS LTD |
| 580R887H07 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 580R887H07 | U9259 | FEL AVIONICS LIMITED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-411-6067
Technical Data | NSN 5325-00-411-6067
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |

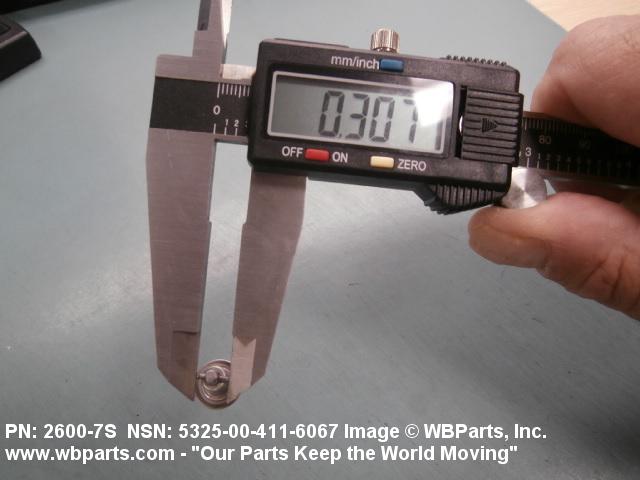

| DIAMETER | 0.298 INCHES MINIMUM AND 0.308 INCHES MAXIMUM |

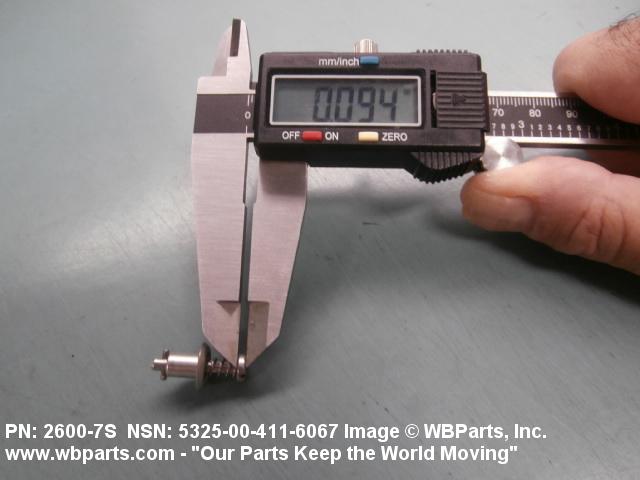

| STUD HEAD HEIGHT | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |

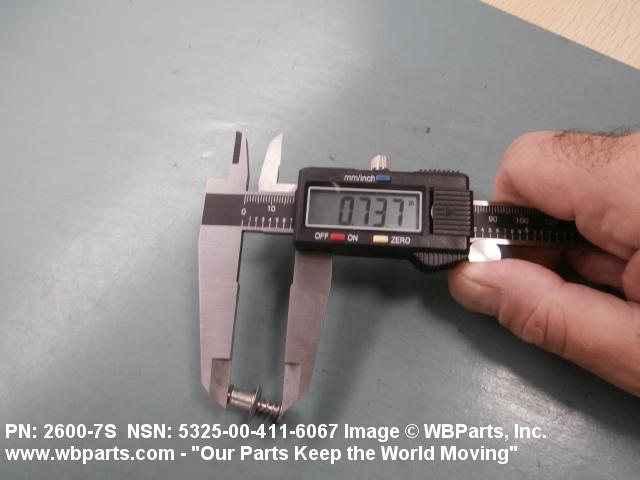

| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.722 INCHES MINIMUM AND 0.737 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.180 INCHES MINIMUM AND 0.239 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | AN/ALQ-119 |
| MANUFACTURERS CODE | 97942 |
| MFR SOURCE CONTROLLING REFERENCE | 580R887H07 |
Restrictions/Controls & Freight Information | NSN 5325-00-411-6067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-411-6067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
