NSN 5325-00-406-5364 FRB75008C4, FRB7500-8C4, 72021717
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-406-5364 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: FRB75008C4, FRB7500-8C4, 72021717, 720217-17, 5325-00-406-5364, 00-406-5364, 5325004065364, 004065364
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1970 | 00-406-5364 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

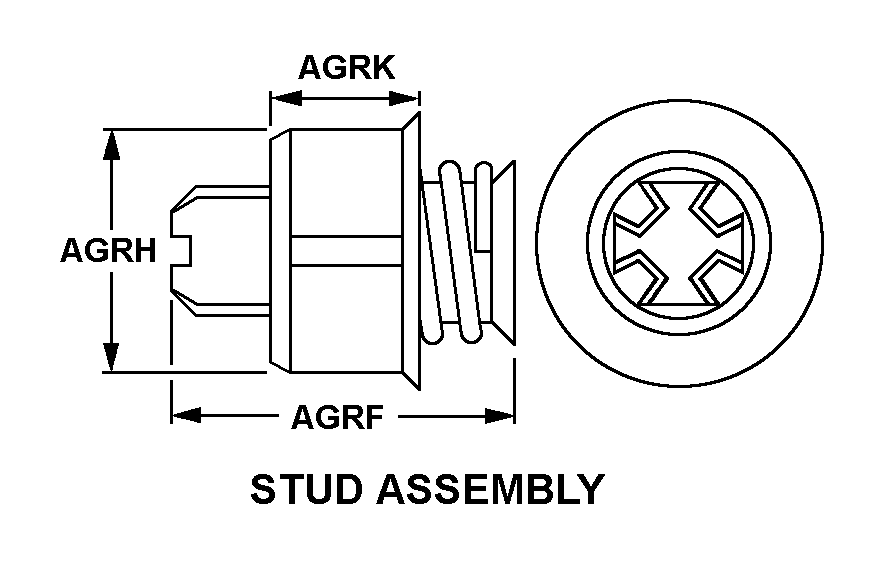

Drawings & Photos | NSN 5325-00-406-5364
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-406-5364
Related Products | NSN 5325-00-406-5364
Technical Data | NSN 5325-00-406-5364
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 302 OR STEEL COMP 316 OR STEEL COMP 303 STUD STEEL COMP 301 WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD 4TH MATERIAL RESPONSE STUD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | PASSIVATE STUD PASSIVATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171,FINISH NO. 5.4.1 MIL STD SINGLE TREATMENT RESPONSE STUD MIL-STD-171,FINISH NO. 5.4.1 MIL STD SINGLE TREATMENT RESPONSE WASHER |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |
| DIAMETER | 0.420 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.495 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 15 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 1.120 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.258 INCHES NOMINAL |
| EYELET LENGTH | 0.385 INCHES NOMINAL |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| SECURING DEVICE TYPE | WASHER |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.438 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-406-5364
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
