NSN 5325-00-369-2716 BACS21ED7R, BACS21X7R, 12701932
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-369-2716 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21ED7R, BACS21X7R, 12701932, 3D01007AC, 3D0100-7AC, 40S57, 40S5-7, 40S5REVCPC40S57, 40S5REVCPC40S5-7, 5325-00-369-2716, 00-369-2716, 5325003692716, 003692716
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-369-2716 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

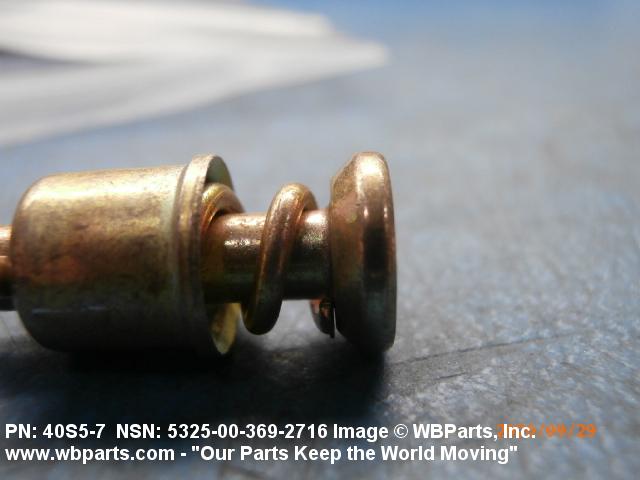

Drawings & Photos | NSN 5325-00-369-2716
Demand History | NSN 5325-00-369-2716
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 40S57 | 2022-05-138 | 200 | Croatia |
| 40S57 | 2020-09-267 | 4 | United States |
| 40S57 | 2020-09-265 | 4 | United States |
| 5325-00-369-2716 | 2016-11-327 | 1 | DIBBS-RFPs |
| 40S5-7 | 2014-06-157 | 50 | United States |
| 5325-00-369-2716 | 2009-03-82 | 30 | France |
| 5325-00-369-2716 | 2008-09-254 | 8350 | DIBBS |
| 5325-00-369-2716 | 2008-08-226 | 3606 | DIBBS |
Cross Reference | NSN 5325-00-369-2716
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12701932 | 19200 | US ARMY ARDEC RDECOM |
| 3D0100-7AC | 88277 | BOEING COMPANY, THE DBA BOEING |
| 40S5-7 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 40S5-7 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 40S5-7 | K1678 | FAIRCHILD FASTENERS UK LTD |
| 40S5REVCPC40S5-7 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS21ED7R | 3G1W3 | HERNDON PRODUCTS, INC. |
| BACS21ED7R | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| BACS21ED7R | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACS21ED7R | 81205 | THE BOEING COMPANY DBA BOEING |
| BACS21X7R | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-369-2716
Related Products | NSN 5325-00-369-2716
Technical Data | NSN 5325-00-369-2716
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |

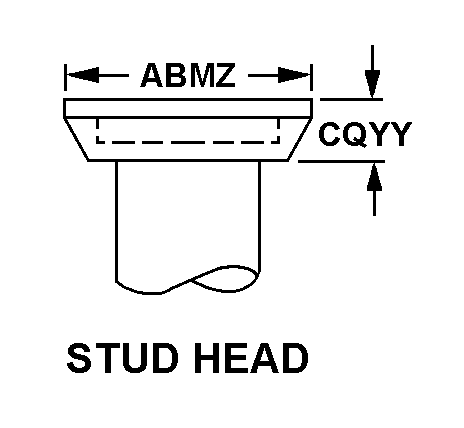

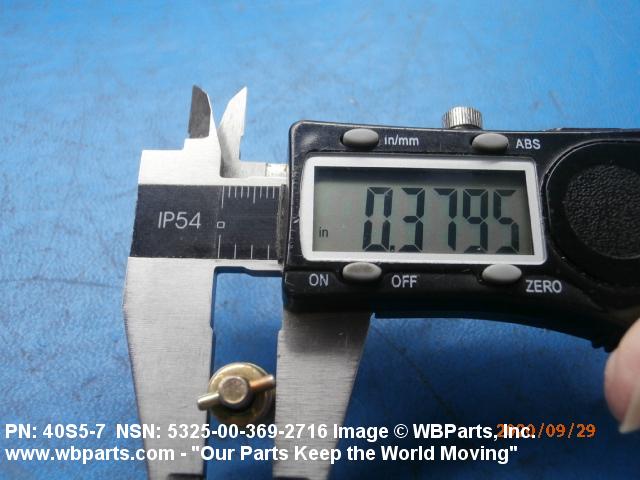

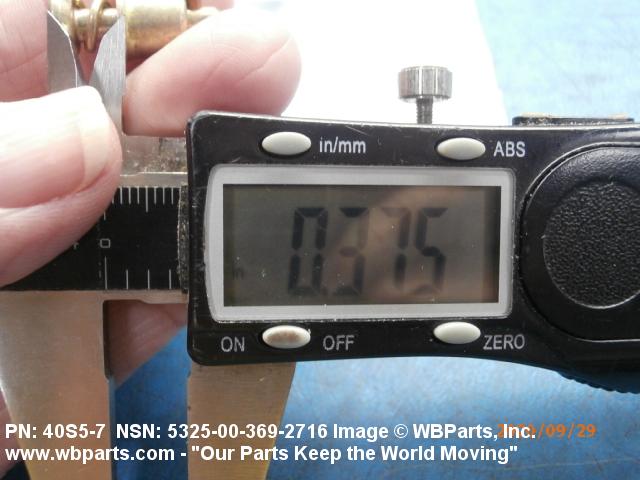

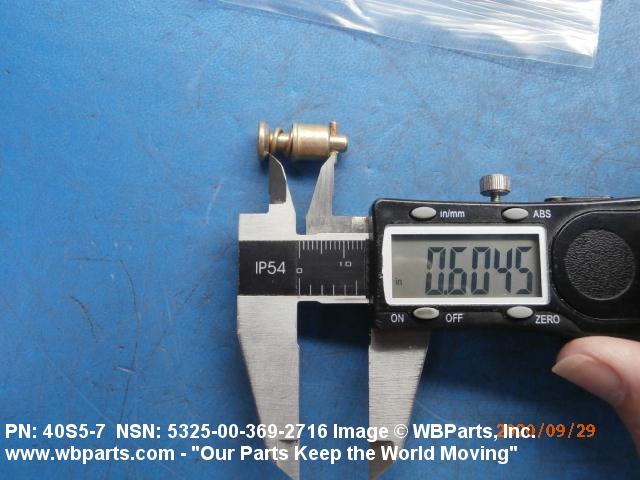

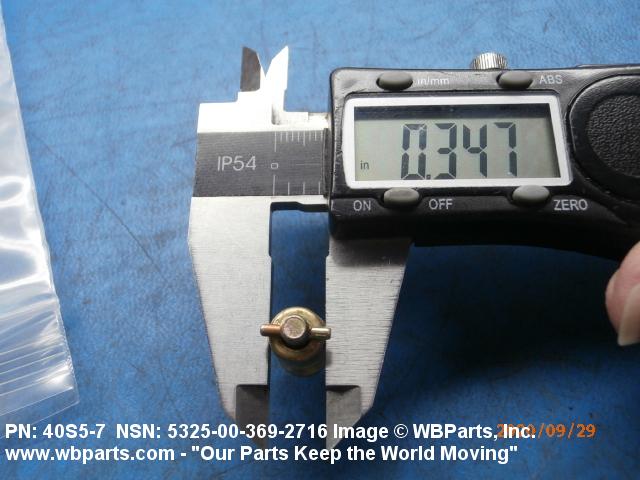

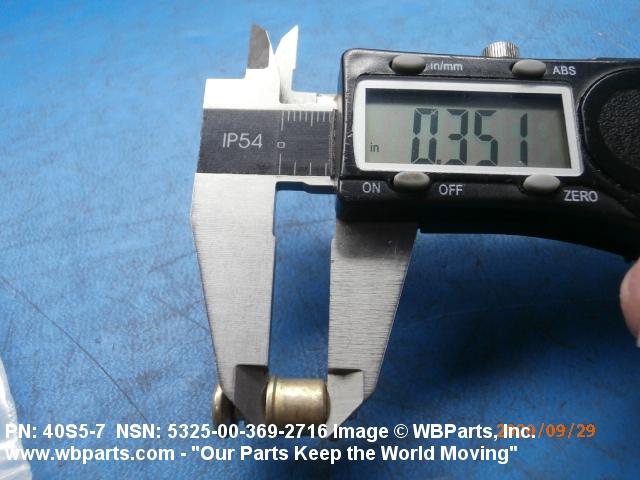

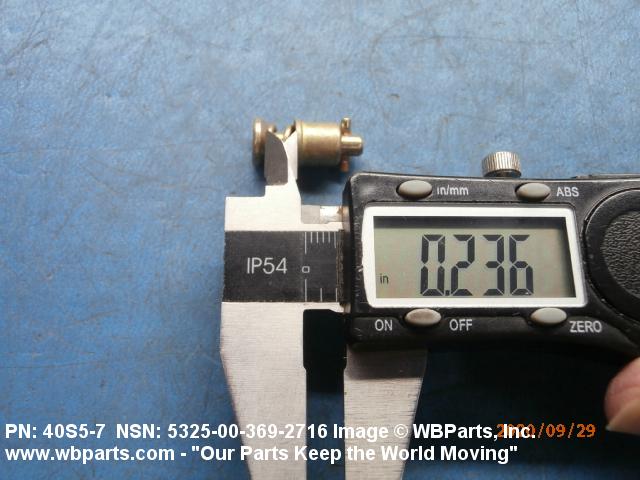

| TURNLOCK STUD HEAD STYLE | 17 STUD HEAD |
| DIAMETER | 0.377 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.377 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 17 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.603 INCHES MINIMUM AND 0.613 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.341 INCHES MINIMUM AND 0.348 INCHES MAXIMUM |
| EYELET LENGTH | 0.352 INCHES NOMINAL |
| DRIVE TYPE | CROSS RECESS |
| MATERIAL ACCOMMODATED THICKNESS | 0.231 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 40S5-7 |
Restrictions/Controls & Freight Information | NSN 5325-00-369-2716
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
