NSN 5325-00-303-1230 BACS21DD3, D14006C1, D1400-6C1
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-303-1230 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: BACS21DD3, D14006C1, D1400-6C1, P3 1-4-51, P31451, P32551, P325-51, 350032551C3C, 3500-325-51-C3C, 5325-00-303-1230, 00-303-1230, 5325003031230, 003031230
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1973 | 00-303-1230 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-303-1230
Cross Reference | NSN 5325-00-303-1230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3500-325-51-C3C | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| BACS21DD3 | 81205 | THE BOEING COMPANY DBA BOEING |
| D1400-6C1 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| P3 1-4-51 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| P325-51 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-303-1230
Related Products | NSN 5325-00-303-1230
Technical Data | NSN 5325-00-303-1230
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 8640 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8695 MIL SPEC SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CHROMATE AND CHROMATE STUD |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STUD |

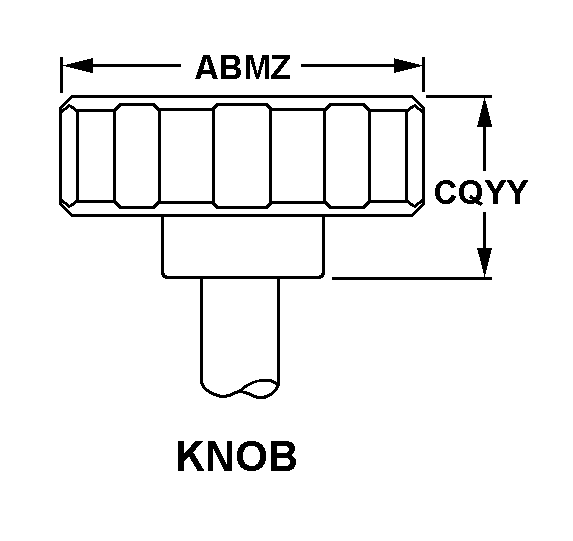

| TURNLOCK STUD HEAD STYLE | 32 KNOB |
| DIAMETER | 0.365 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.305 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 22 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.157 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.365 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| STUD DIAMETER | 0.193 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| EYELET LENGTH | 0.136 INCHES NOMINAL |
| SECURING DEVICE TYPE | EYELET |
| DRIVE TYPE | KNURLED OR SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-303-1230
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
